BAKKEDRAGET, Reinterpretation of a historic cottage and shed | Johansen Skovsted Arkitekter

Johansen Skovsted Arkitekter took over the project of the reconstruction of a historic timber cottage and shed, paying respect to the original state of the local atmosphere.

EXTERIOR – COTTAGE AND SHED – PHOTO_LAURA STAMER
SITEPLAN 1-500

The cottage is located in a protected landscape with historic vacation homes carefully placed in slopes of overgrown moraine and sand dunes, rising from surrounding flatlands.

The reconstruction’s ambition is to recreate the sense and atmosphere of being in the old house before it was left unused and timber infestation made a rebuilding unavoidable.

ORIGINAL HOUSE 1905 AND 1908 – DRAWING AND SURVEY_THORKEL DAHL
COTTAGE AND SHED BEFORE REBUILDING – EXTERIOR 1981

Built in 1905 as two detached log houses later merged by the addition of a kitchen, the house was gradually transformed, including architect Ivar Bentsen’s addition of a stove and chimney, and supplemented by a shed. The interior acquired a dense layered atmosphere of partly painted wooden surfaces, peculiar alcoves and niches.

LIVING ROOM 02 – INTERIOR 1995
LIVING ROOM 01 – INTERIOR 1995


The structure is rebuilt as a wooden light-frame construction, allowing an exterior based on the protected expression of the old house. The new interior interprets memories and accumulated features for contemporary conditions, informed by the modern structure.

COURTYARD – COTTAGE – PHOTO_LAURA STAMER

Exterior walls are internally clad in wide horizontal boards referring to formerly exposed logs, the walls separating rooms are clad in thinner vertical boards. Pressure resistant roof insulation enable an exposed placement of the rafters under the ceiling. The original disposition of rooms is slightly altered, walls separating shared spaces are removed, though still present through material separation.

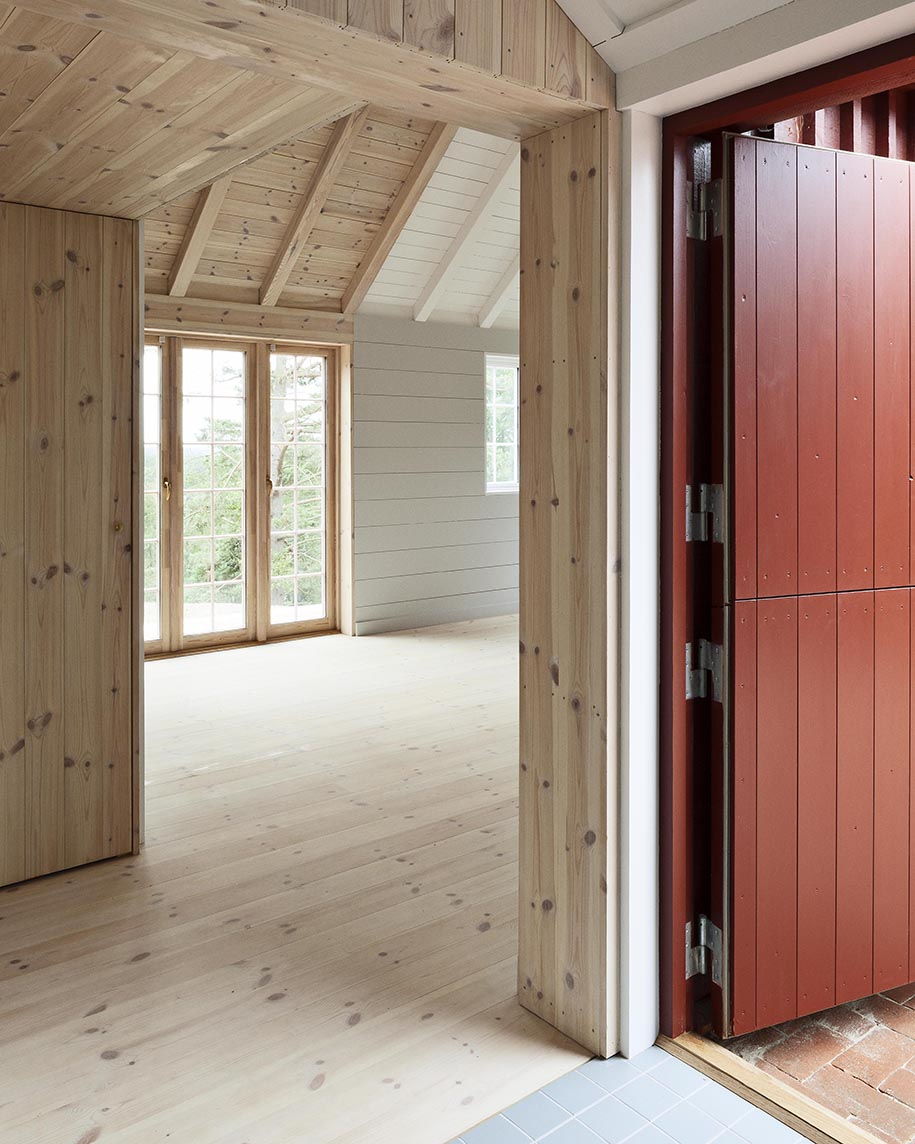

Passage – Cottage – Photo_Laura Stamer


LOFT, ALCOVE – COTTAGE – PHOTO_LAURA STAMER
ROOM, NICHE – COTTAGE – PHOTO_LAURA STAMER
ROOM, NICHE – COTTAGE – PHOTO_LAURA STAMER
STAIRCASE – COTTAGE – PHOTO_LAURA STAMER


A tile grid is laid out in the hallway, kitchen and bathroom, shifting in colour between the spaces. Wooden walls are left untreated or painted in colours drawn from the former interior. Niches and alcoves are recreated by leaving wooden surfaces unpainted.

KITCHEN – COTTAGE – PHOTO_LAURA STAMER
BATHROOM 01 – COTTAGE – PHOTO_LAURA STAMER

These strategies allow rooms and the overall disposition to be continuous yet separate, introducing a density of personal unconventional spaces. The original house’s complexity is reinterpreted as a clearly defined patchwork of shifting materials and colours, visible from one room to the next, creating a contemporary space pragmatically reinterpreting the past.

LIVING ROOM – COTTAGE – PHOTO_LAURA STAMER

The shed was built as an addition to the cottage

EXTERIOR – SHED – PHOTO_LAURA STAMER

A weathercock on the original shed is engraved with its year of construction, 1905. When the shed was later extended to its double length, the original gable was kept as a central partition wall dividing the space into two. The foundation of this wall is kept as a trace in the new structure, acting as base for the lone pillar carrying the new ridge beam.



The new shed is built based on a thorough survey of the old, with some adjustments. Pinewood makes up the structure. Spruce cladding is untreated in the interior, with the ceiling boards painted in a grey blue shade stemming from the main house.

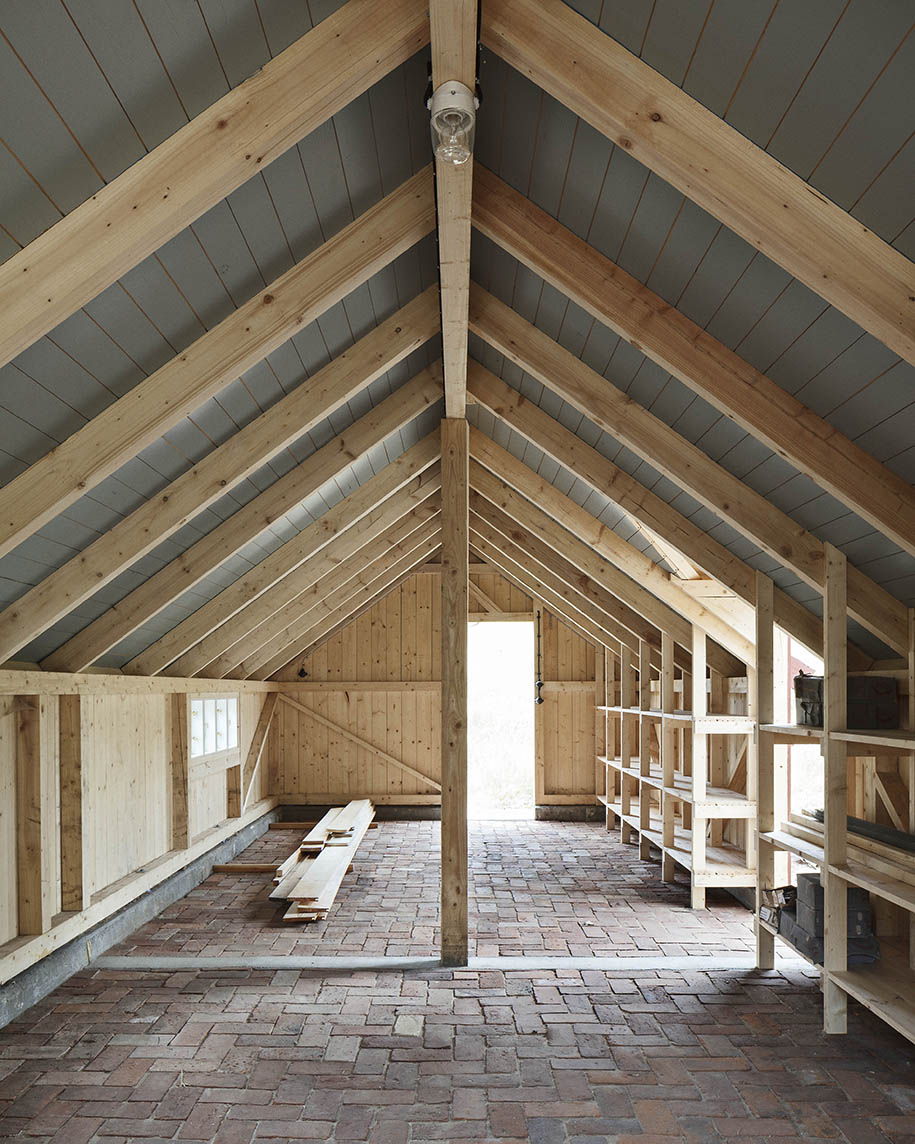

INTERIOR – SHED – PHOTO_LAURA STAMER

Old bricks from the main house terrace are reused for the floor. The original roof structure used collar beams, making it impossible to move upright through the shed. The new structure consists of rafters resting of on the ridge beam and the outer wall structure, to on one side lined with built-in shelves, enable one uninterrupted space.

INTERIOR – SHED – PHOTO_LAURA STAMER

Facts and Credits

Location  Denmark
Year of construction 2018
Engineer Ingeniørgruppen Vestjylland
In collaboration with Lasc Studio
