Studio Ben Allen completed the facade redesign and extension of a Victorian house in North London drawing design inspiration from the structural form and conceptual richness of Victorian architecture while demonstrating exemplarily use of pigmented patterned concrete as both structure and architectural finish.
-text by ©Studio Ben Allen
The owners, a retired couple, approached Studio Ben Allen to reconsider the piecemeal rear façade of their end of terrace Victorian house in north London and to provide a new kitchen and two new bathrooms – one to be on the ground floor and accessible. Studio Ben Allen were encouraged by the client to use the project as a testbed for ideas. They used the project as a vehicle to push the boundaries of off-site fabrication – something that they felt was lacking in smaller scale residential or alteration projects.
The architects were keen to consider how the extension could demonstrate exemplarily use of pigmented patterned concrete as both structure and architectural finish.

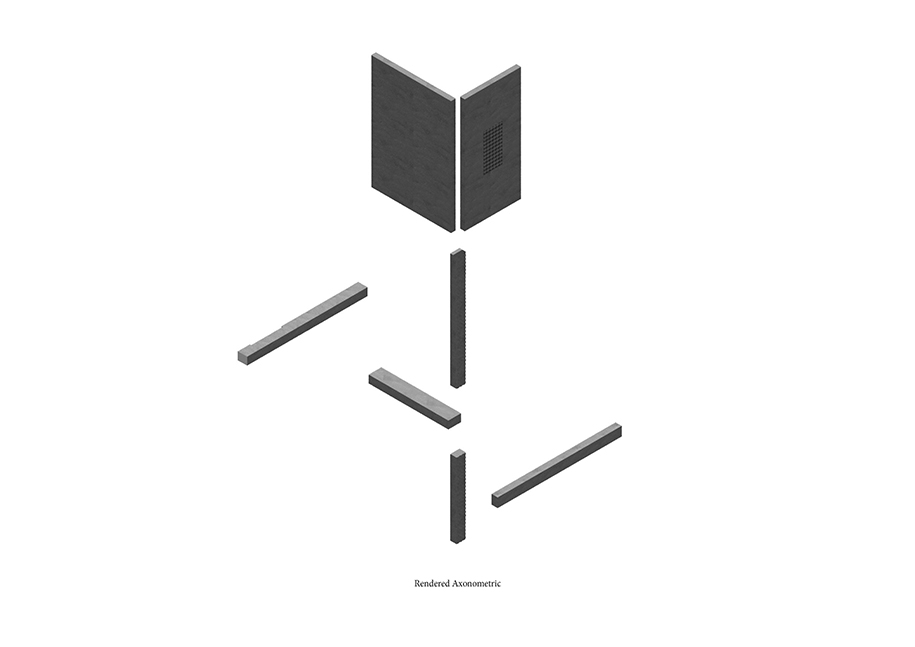

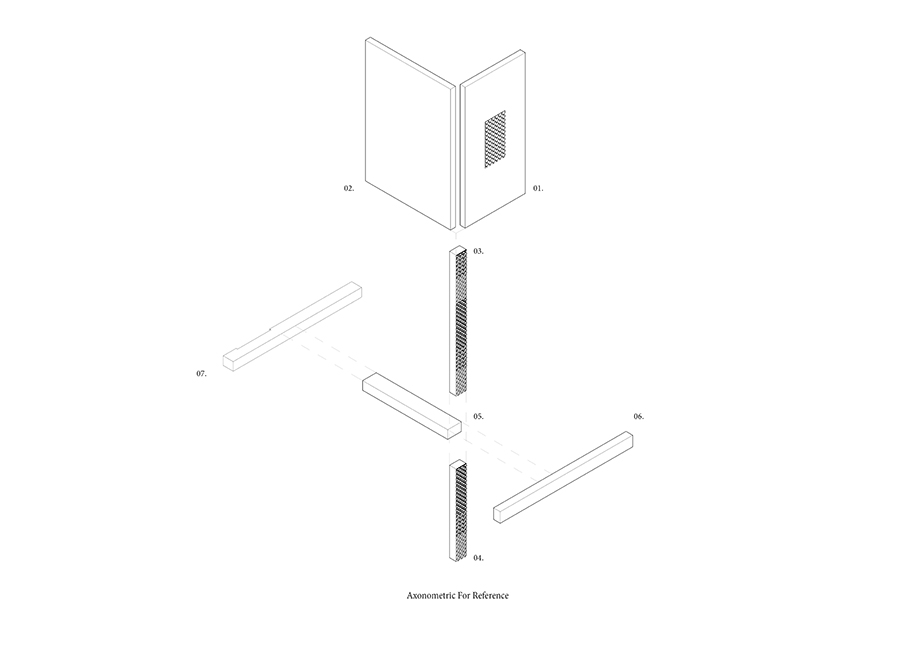

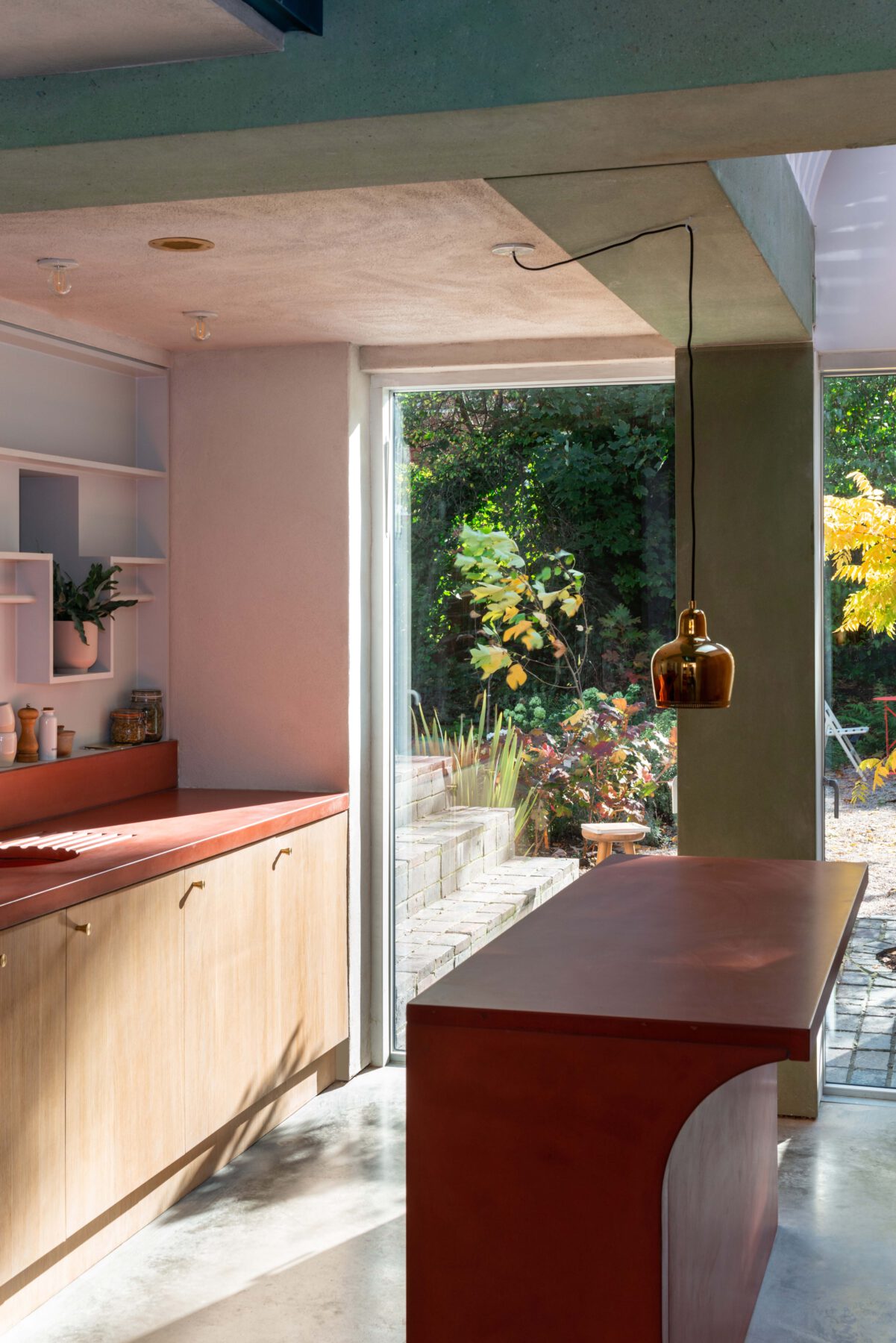

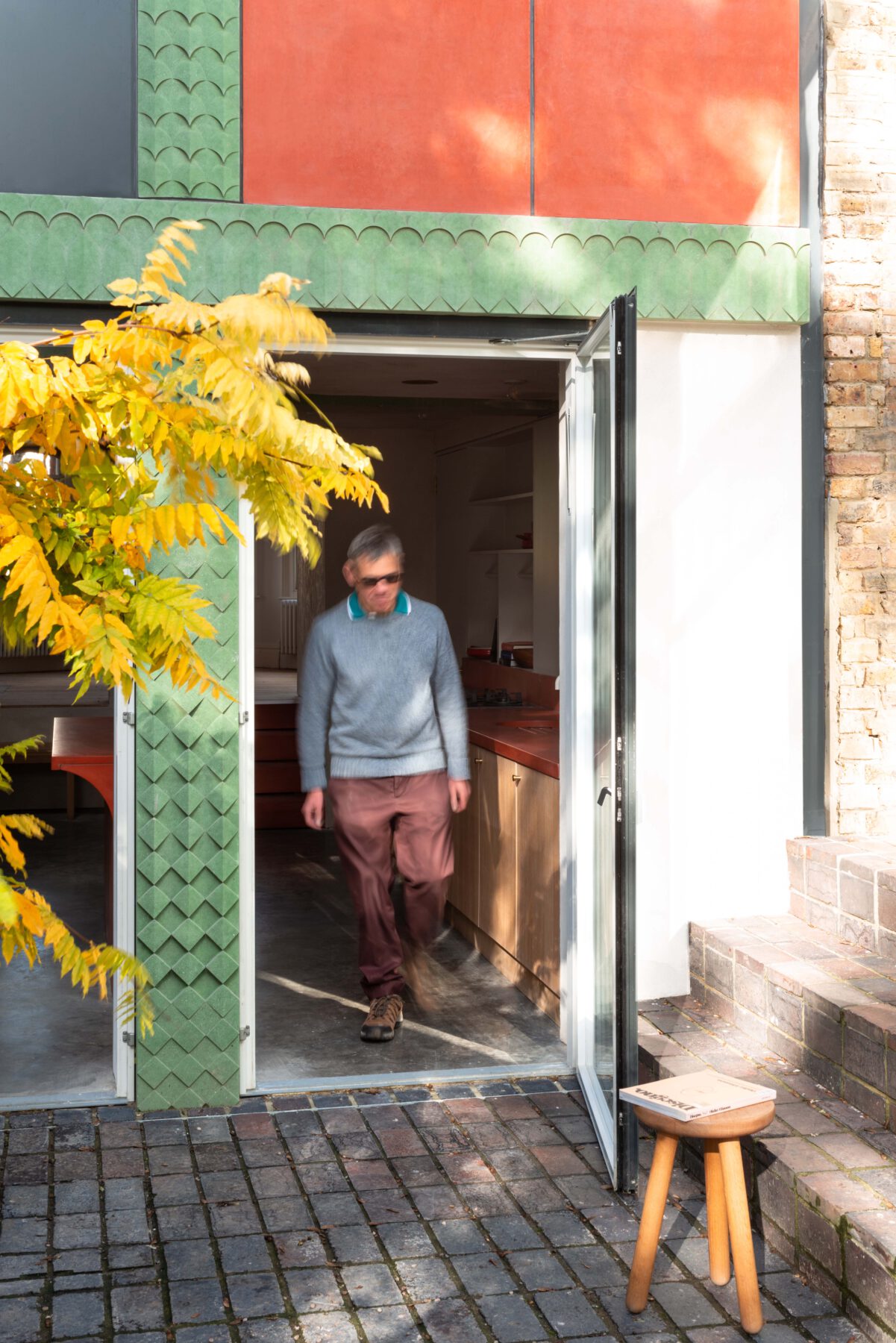

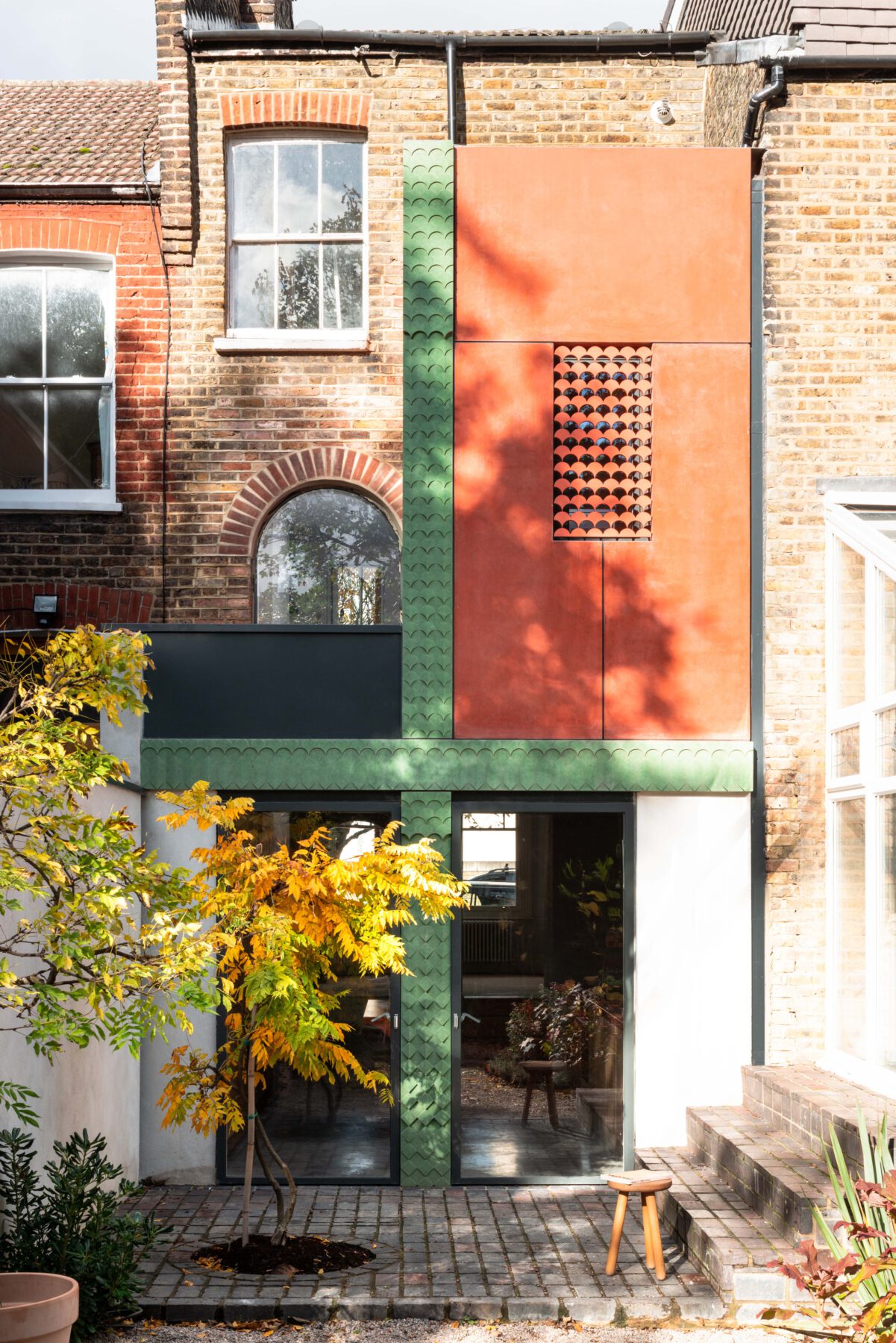

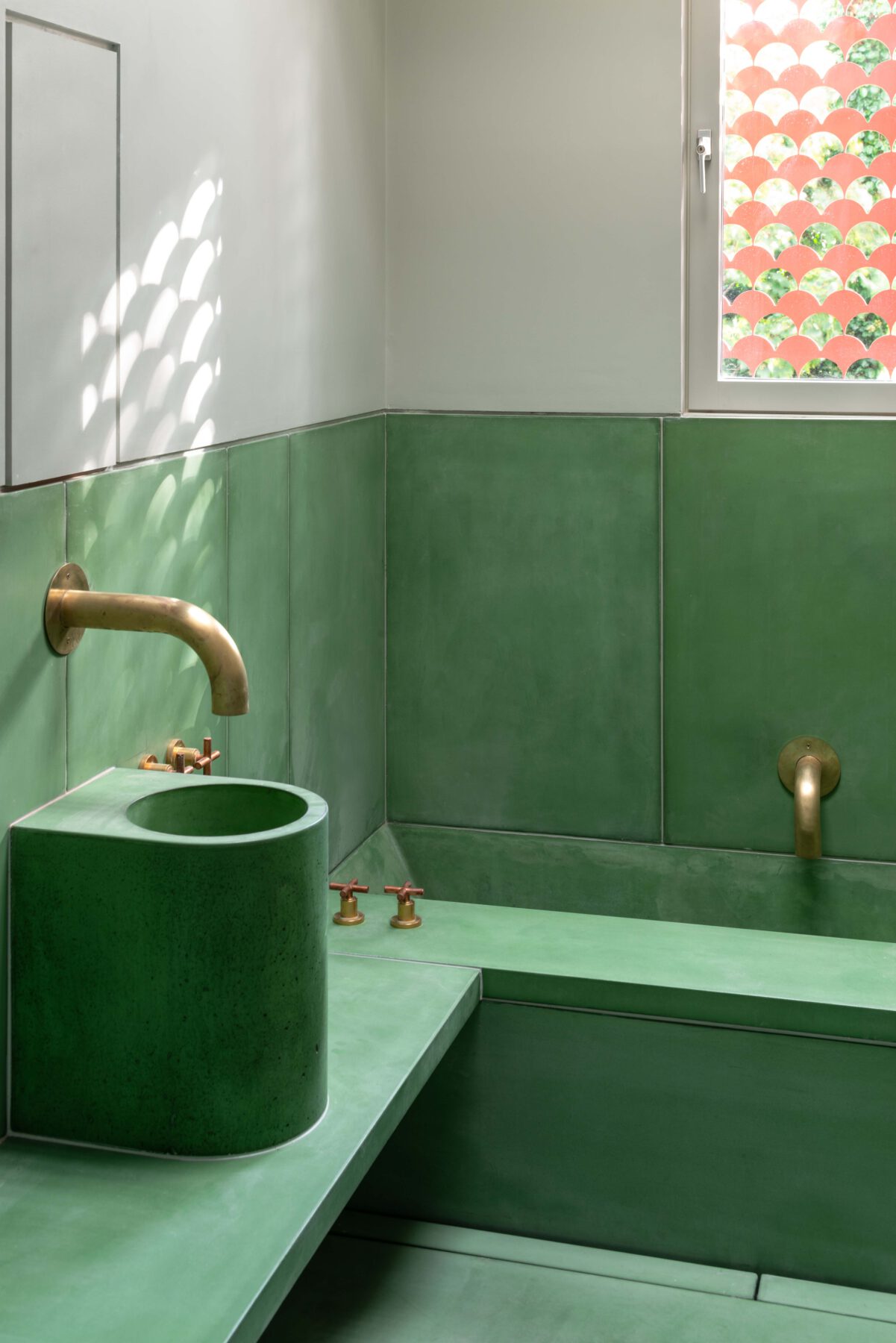

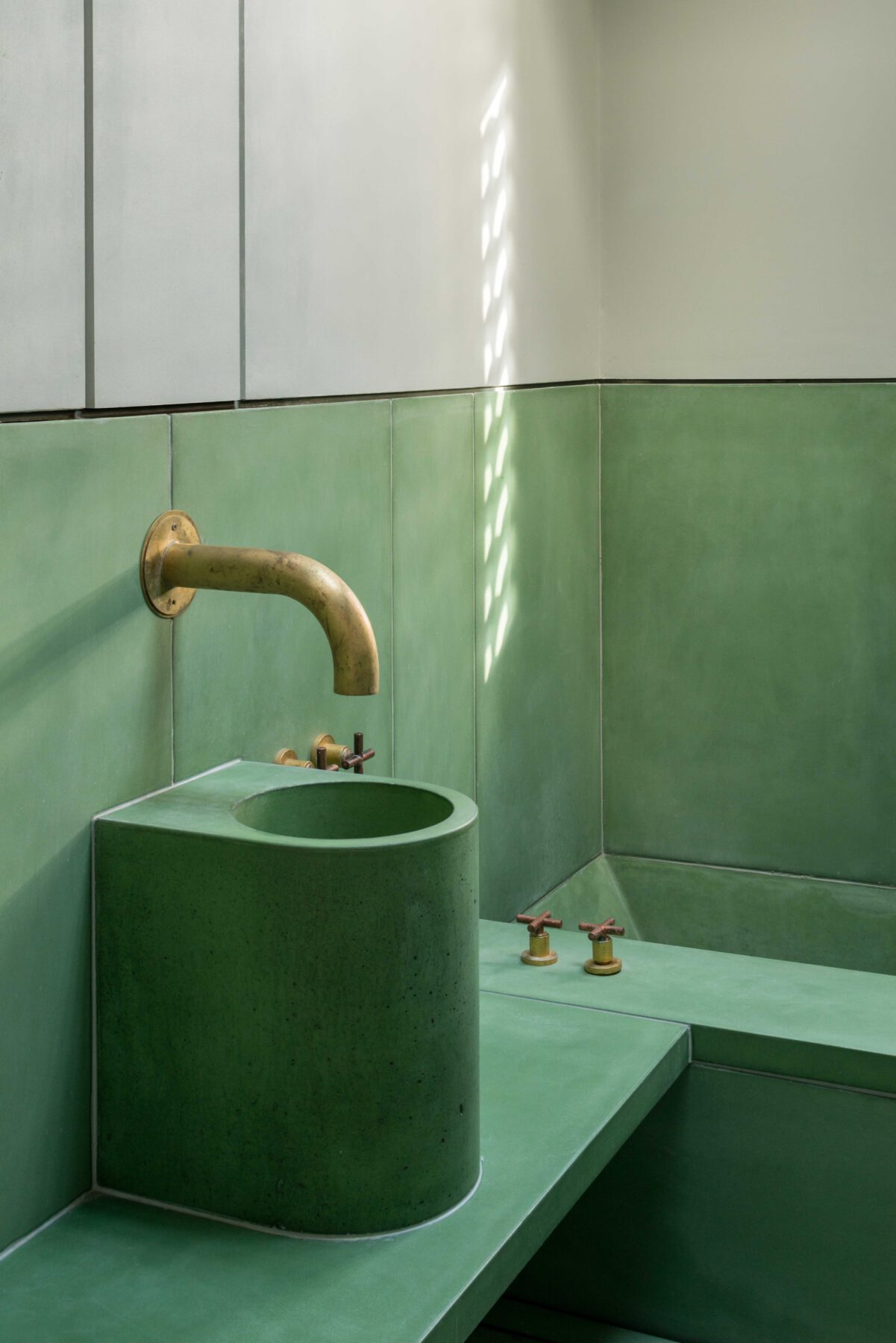

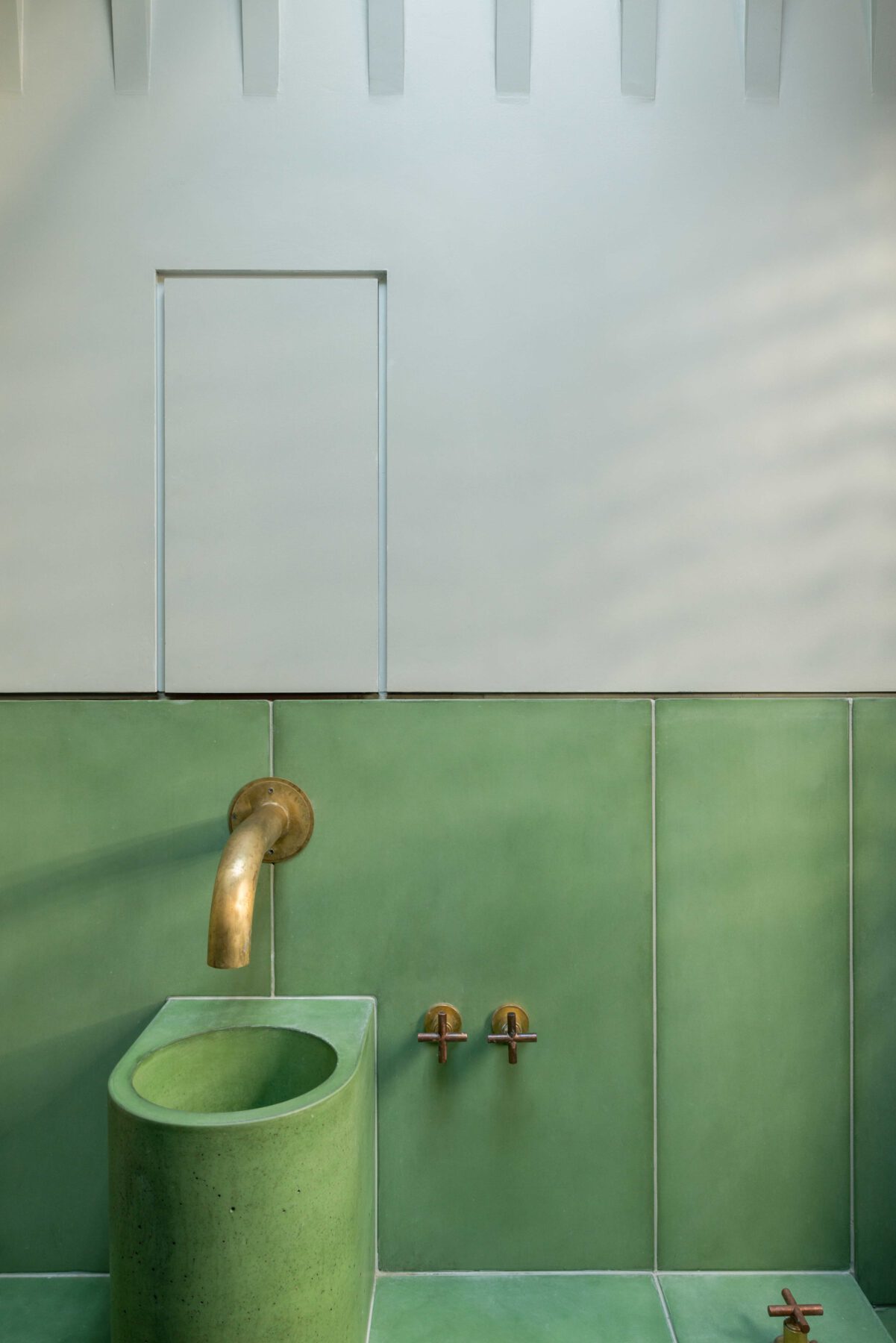

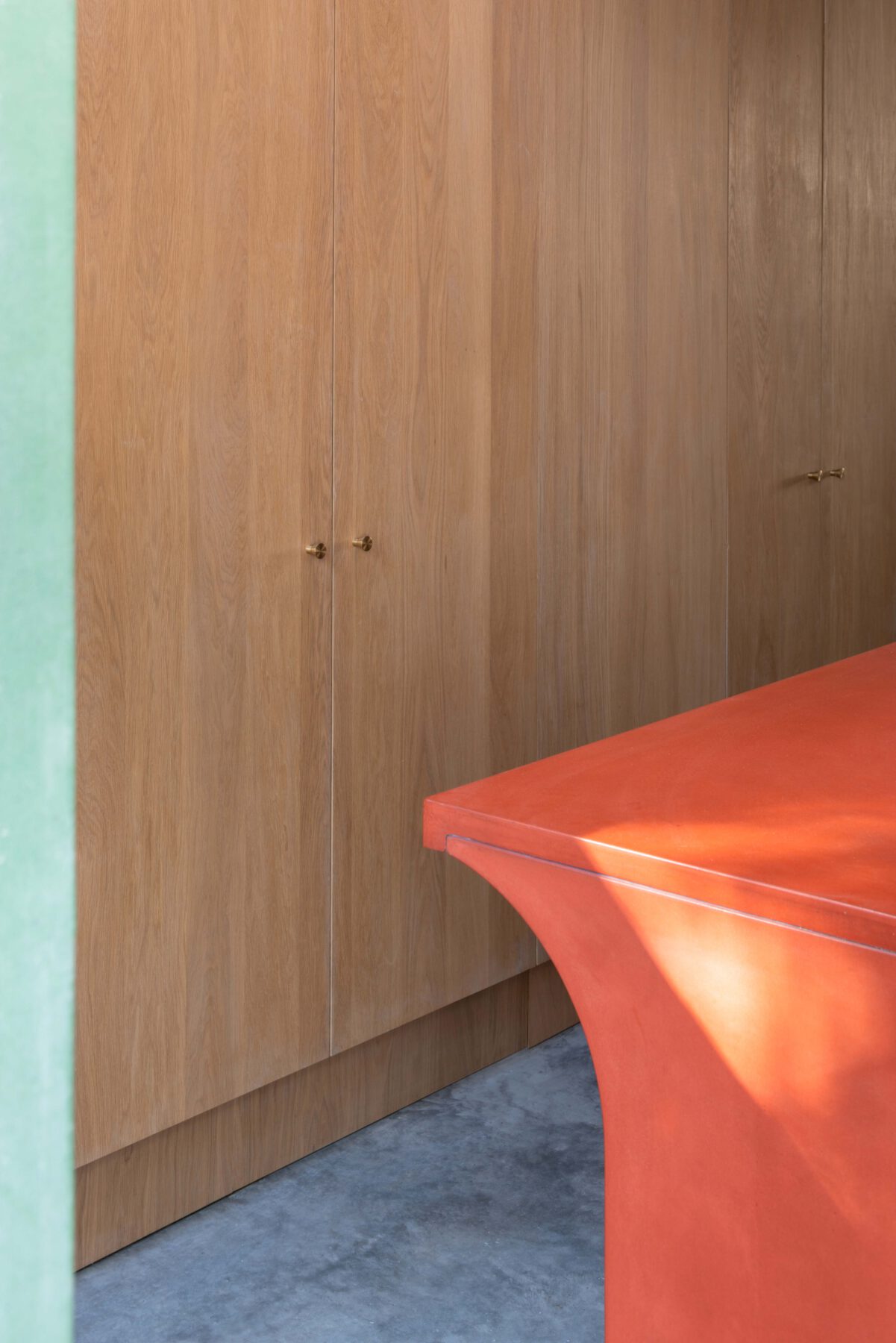

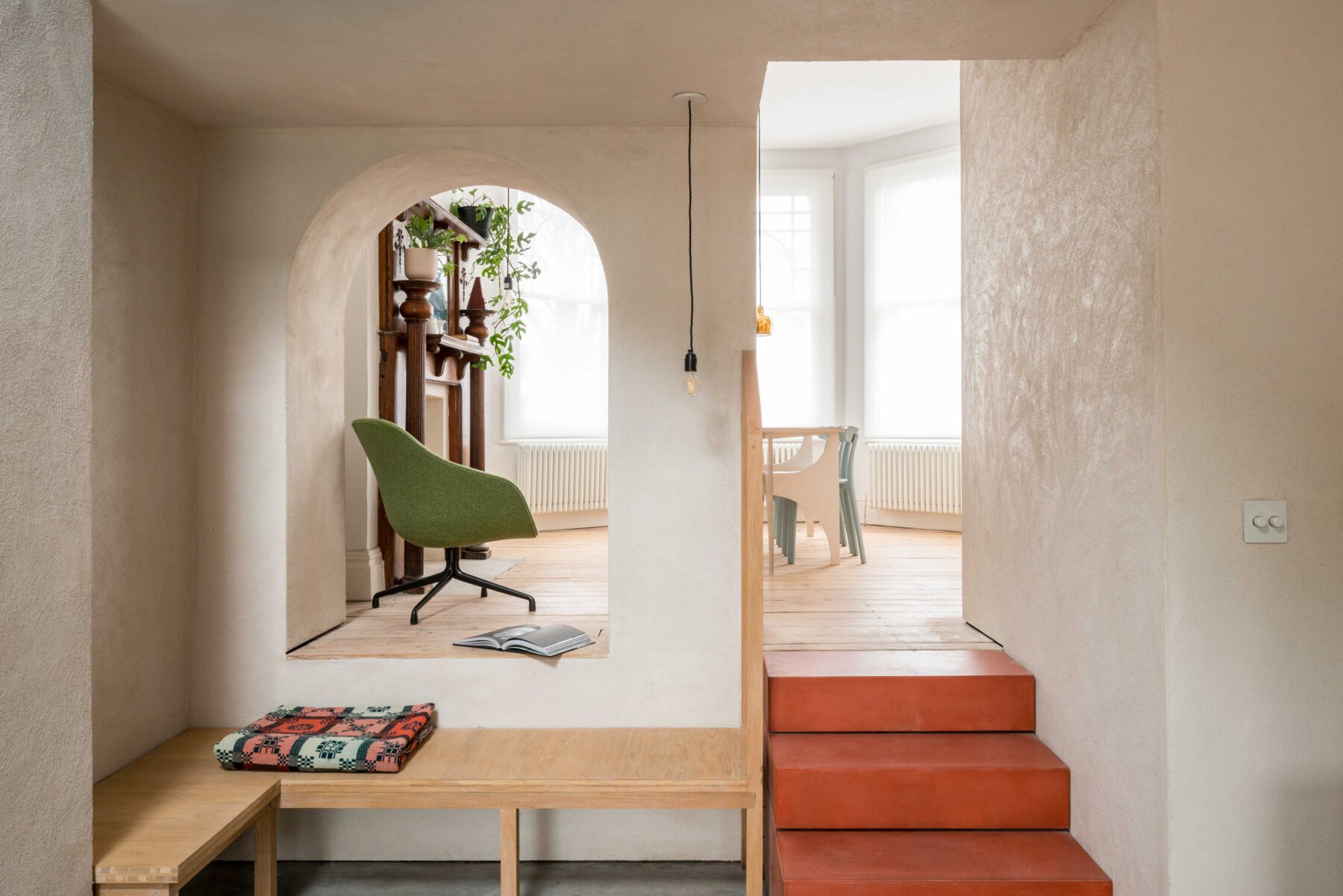

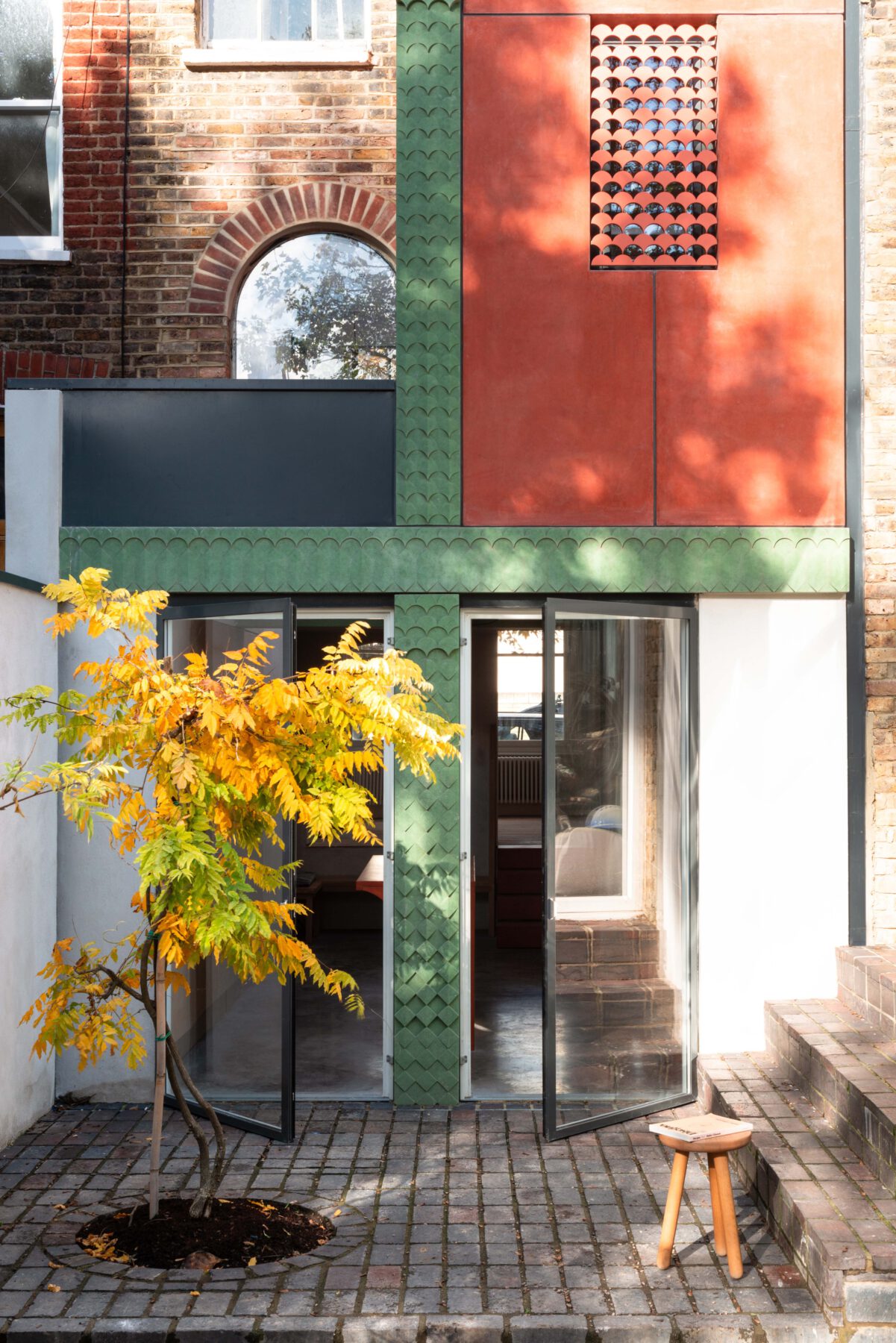

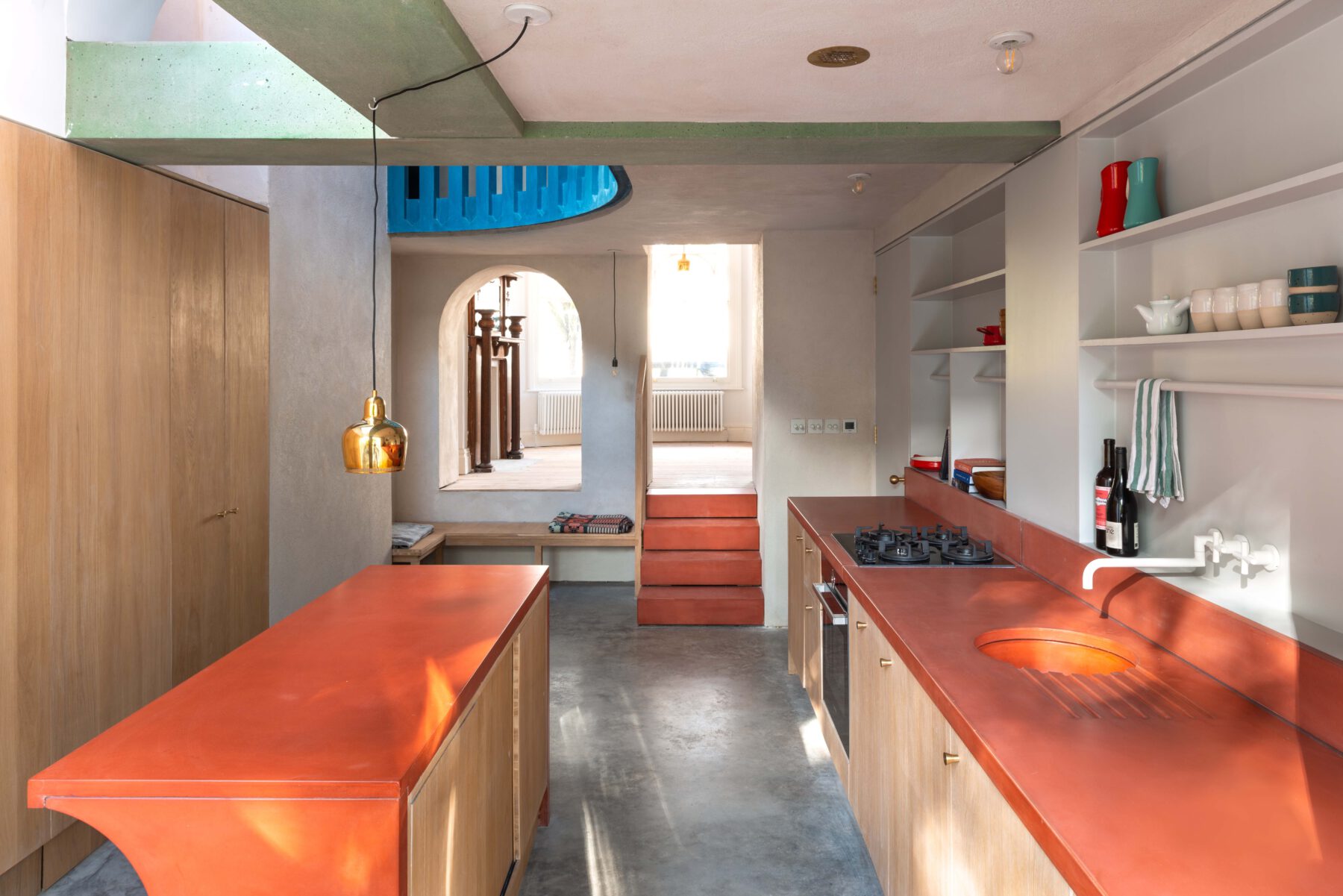

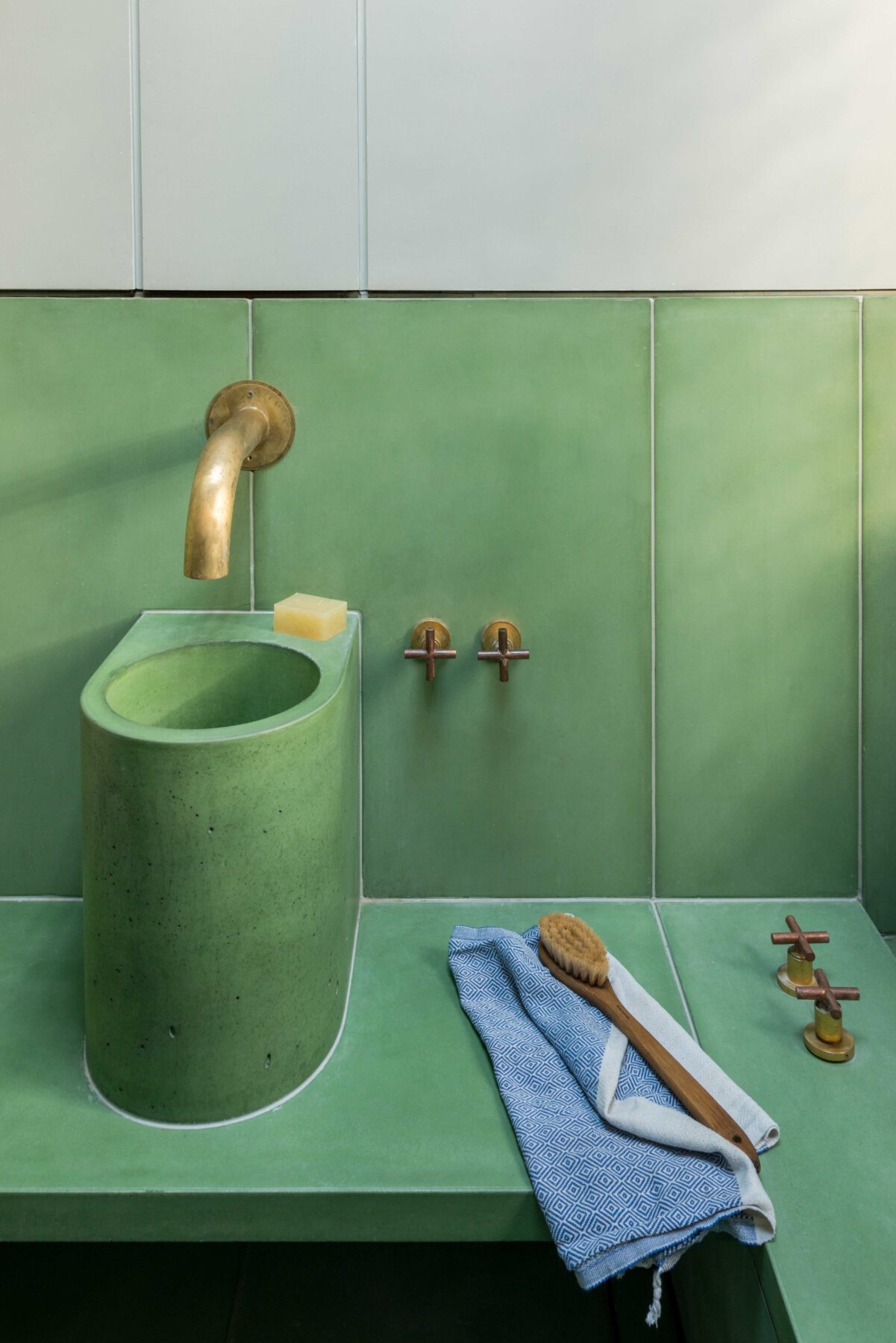

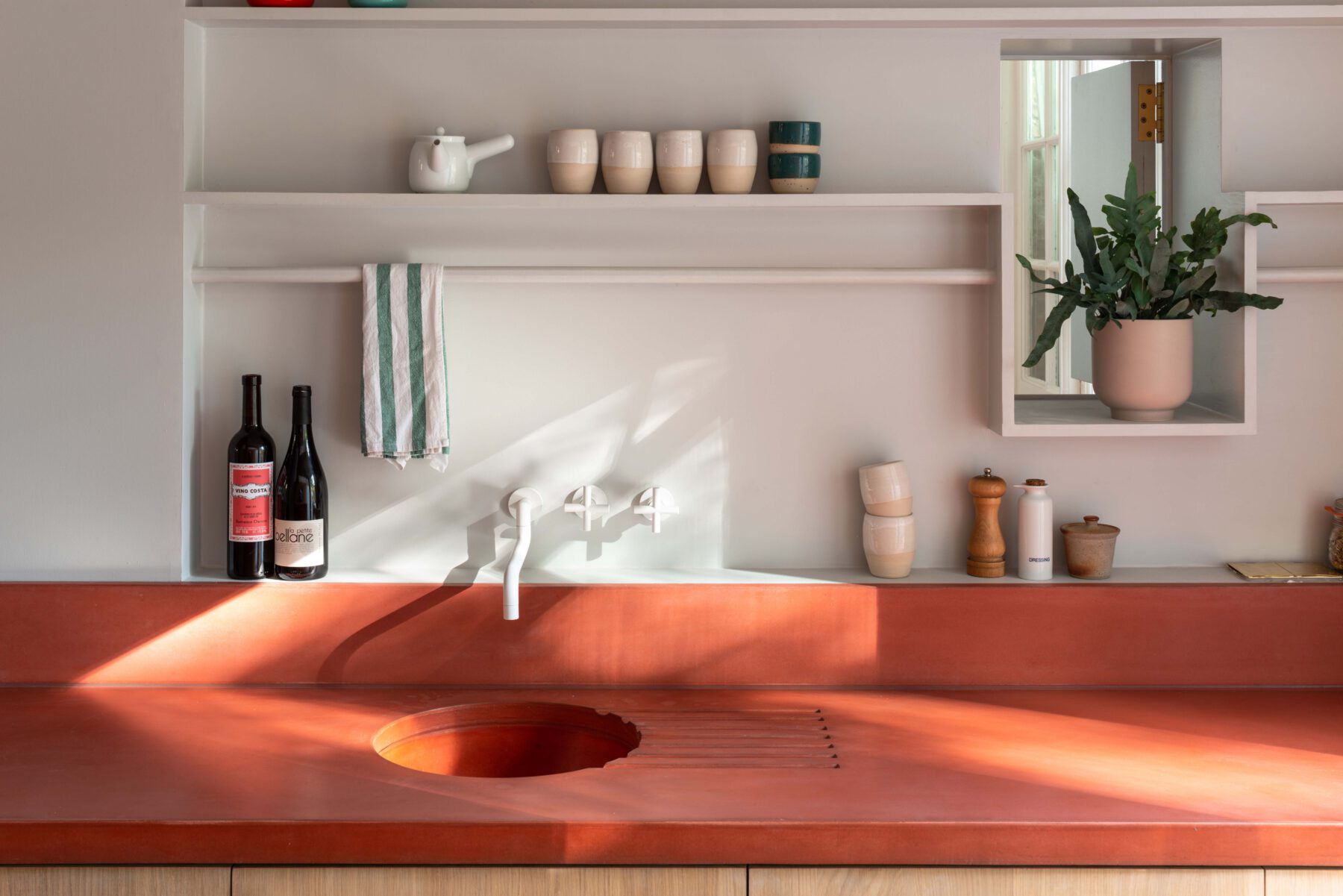

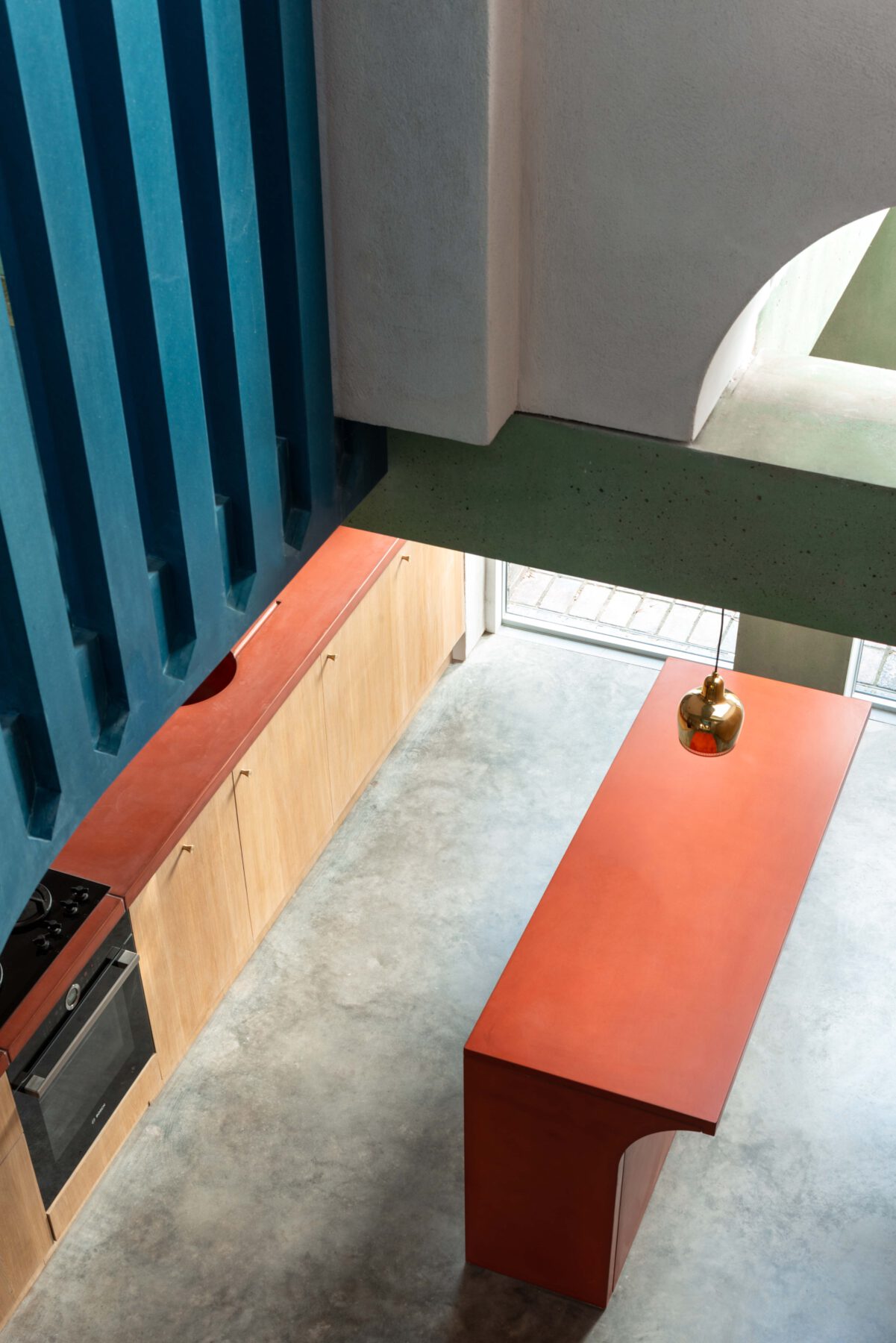

Green patterned columns and beams create a framework for the salmon colour structural wall panels of the first-floor bathroom. Internally the use of pigmented concrete continues – with stairs, counters, sink, floors, benches, bath and washbasin all cast in pigmented concrete. Use of offsite fabrication greatly reduced time on site, the main frame and walls of the extension being erected in just three days.

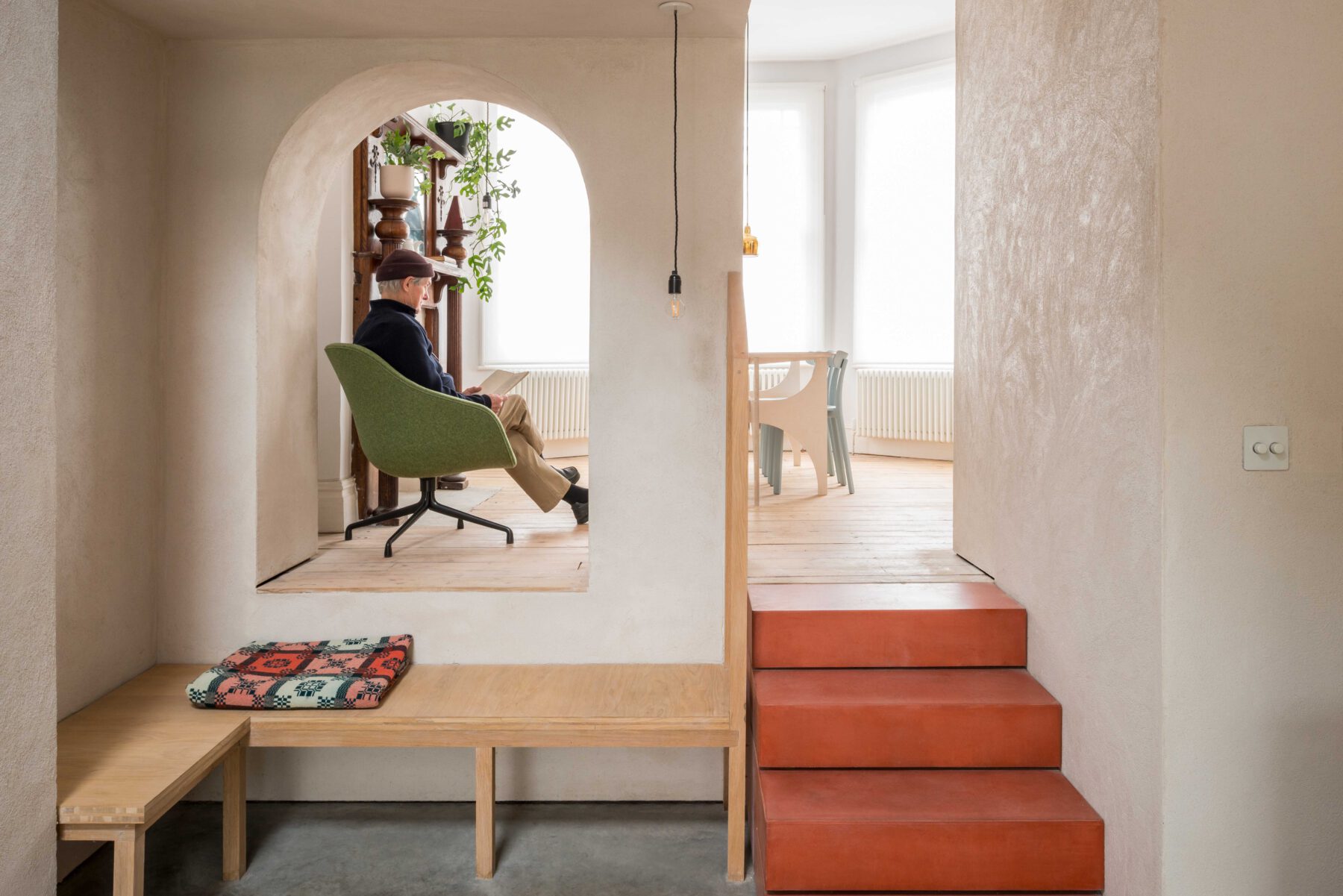

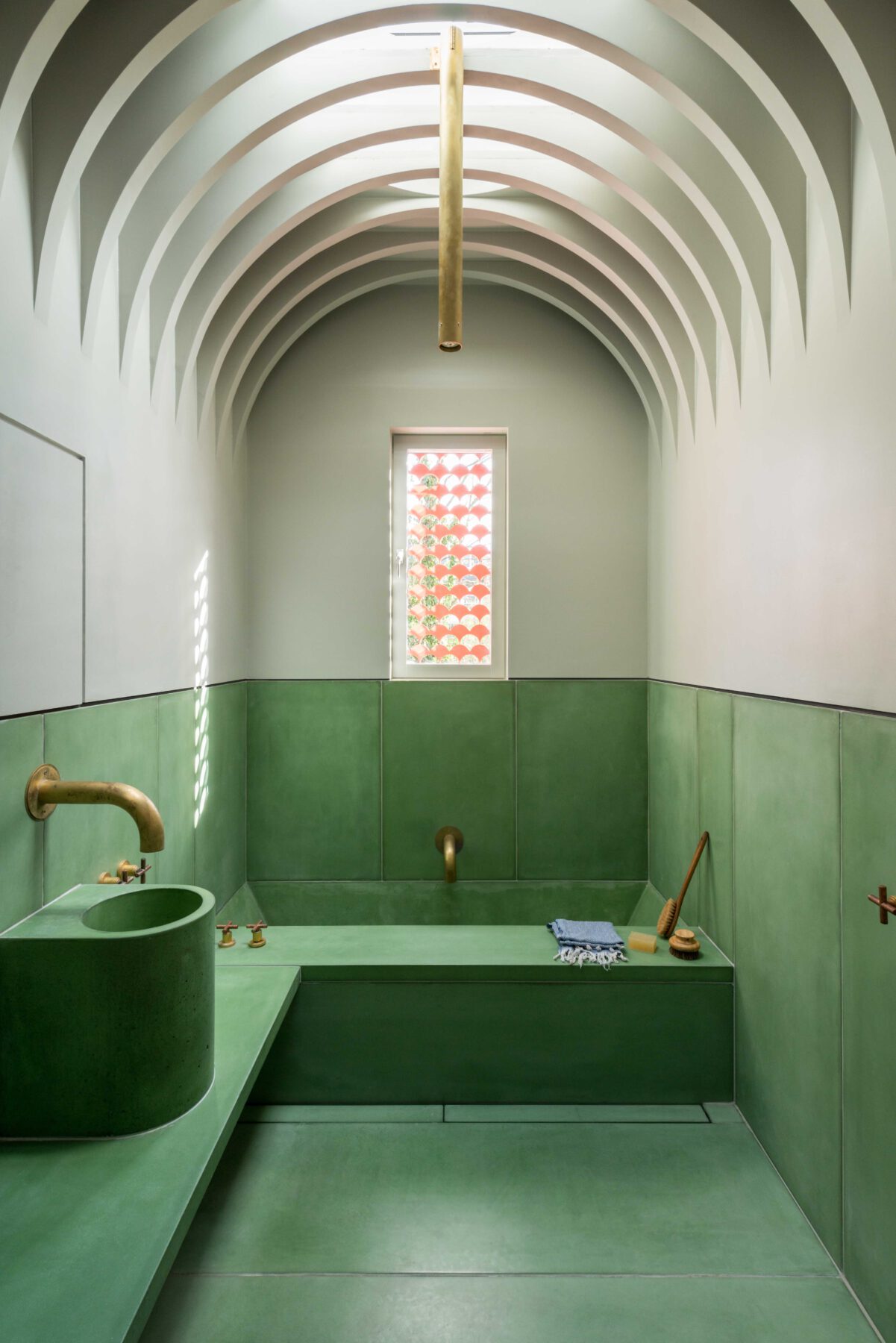

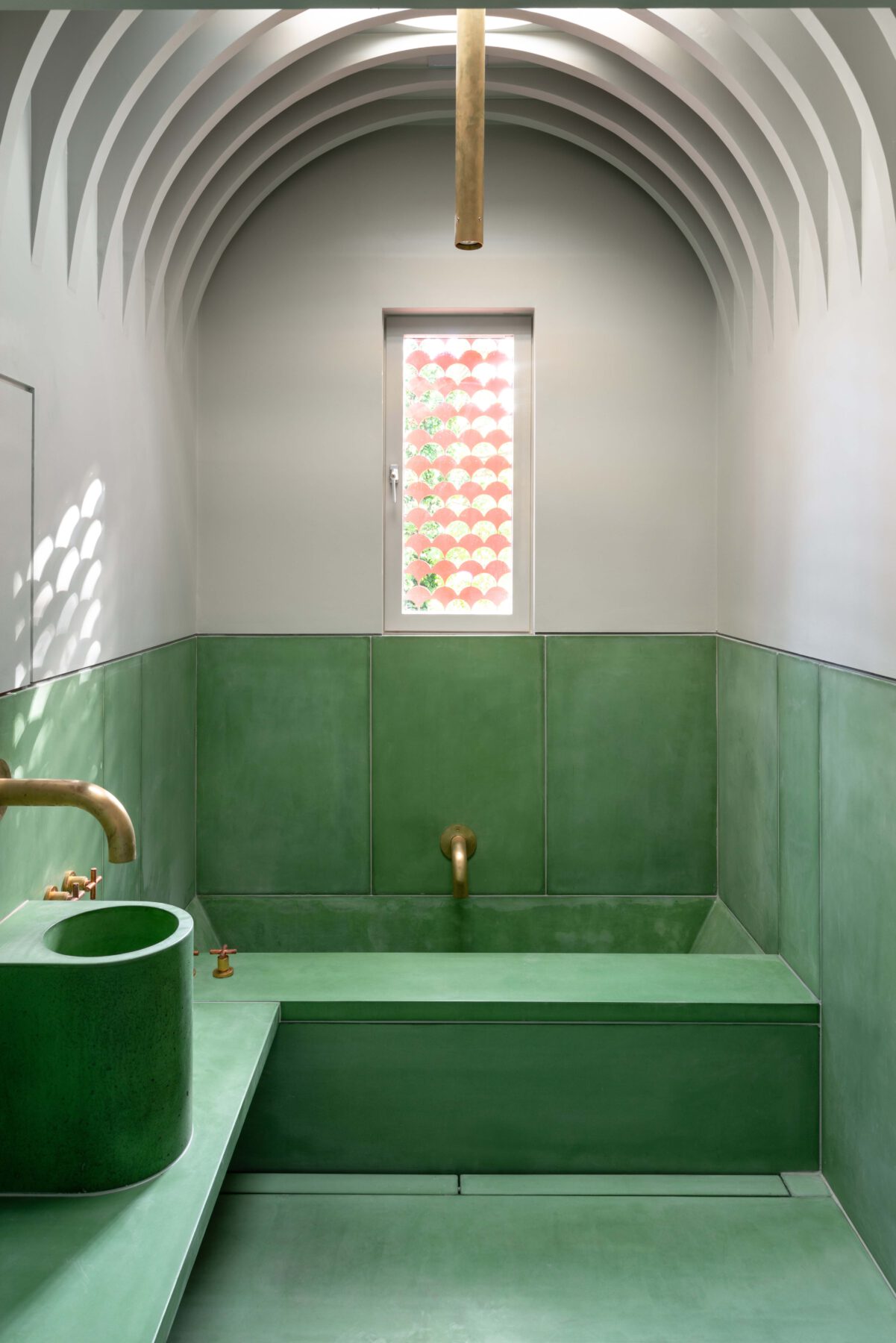

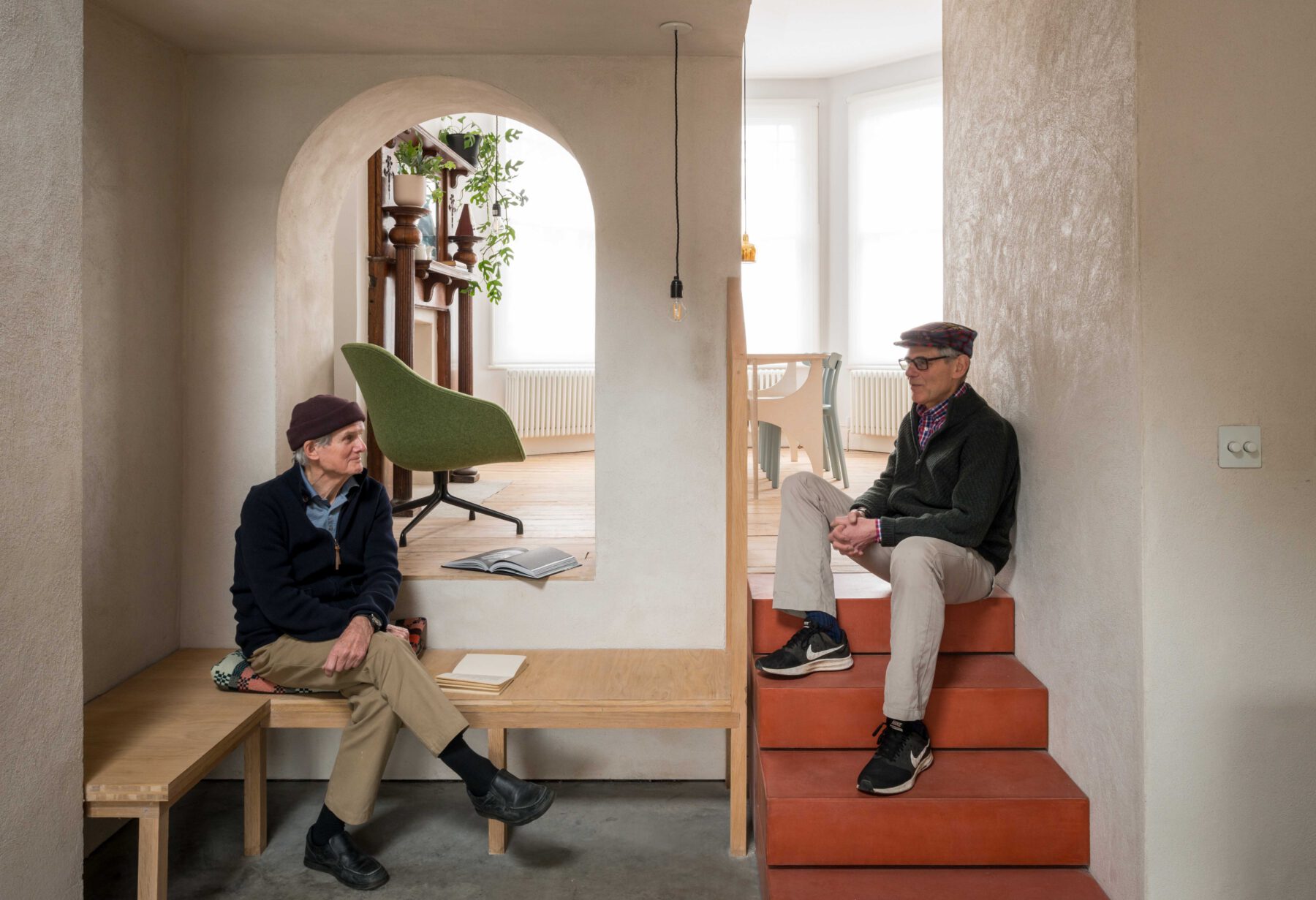

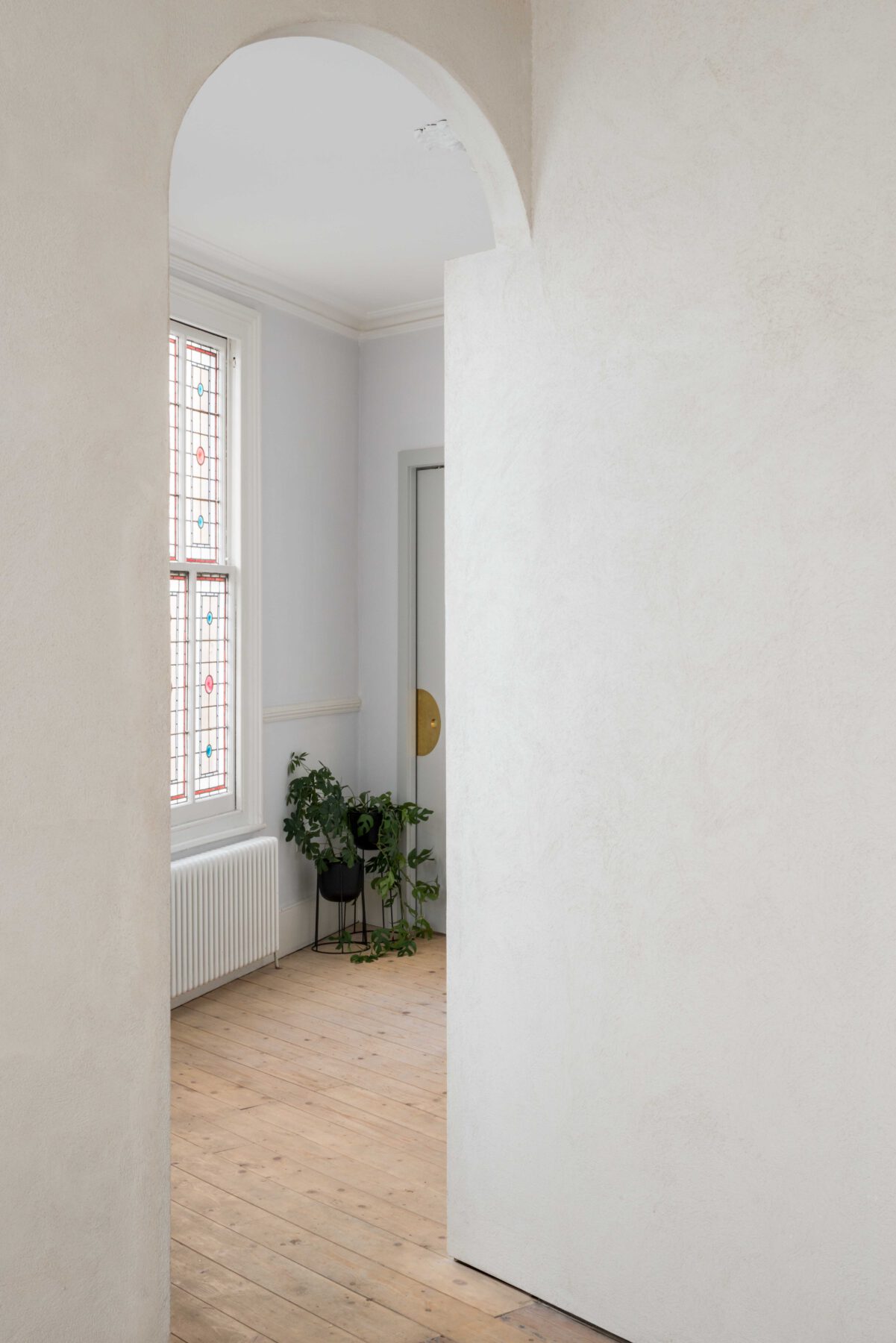

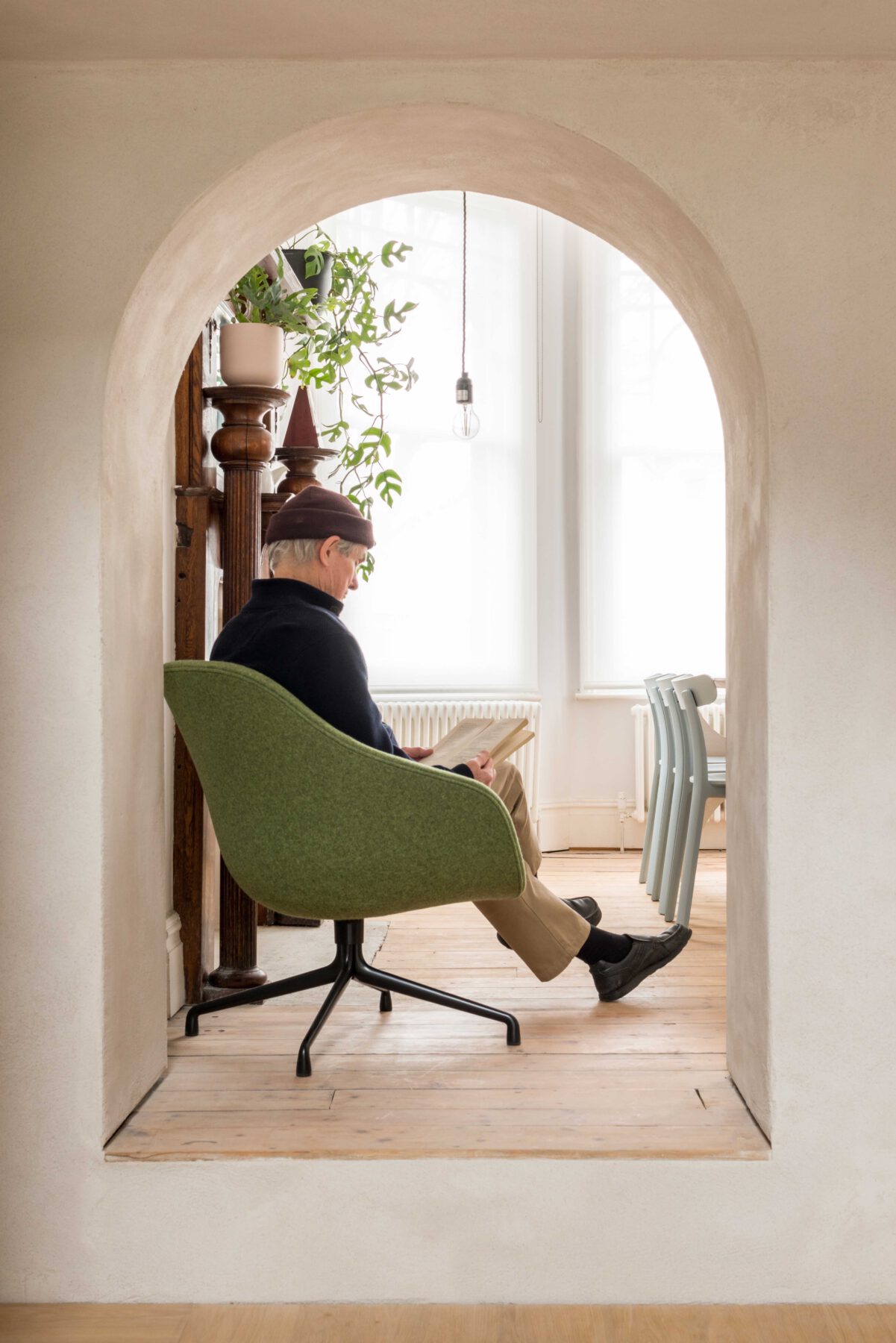

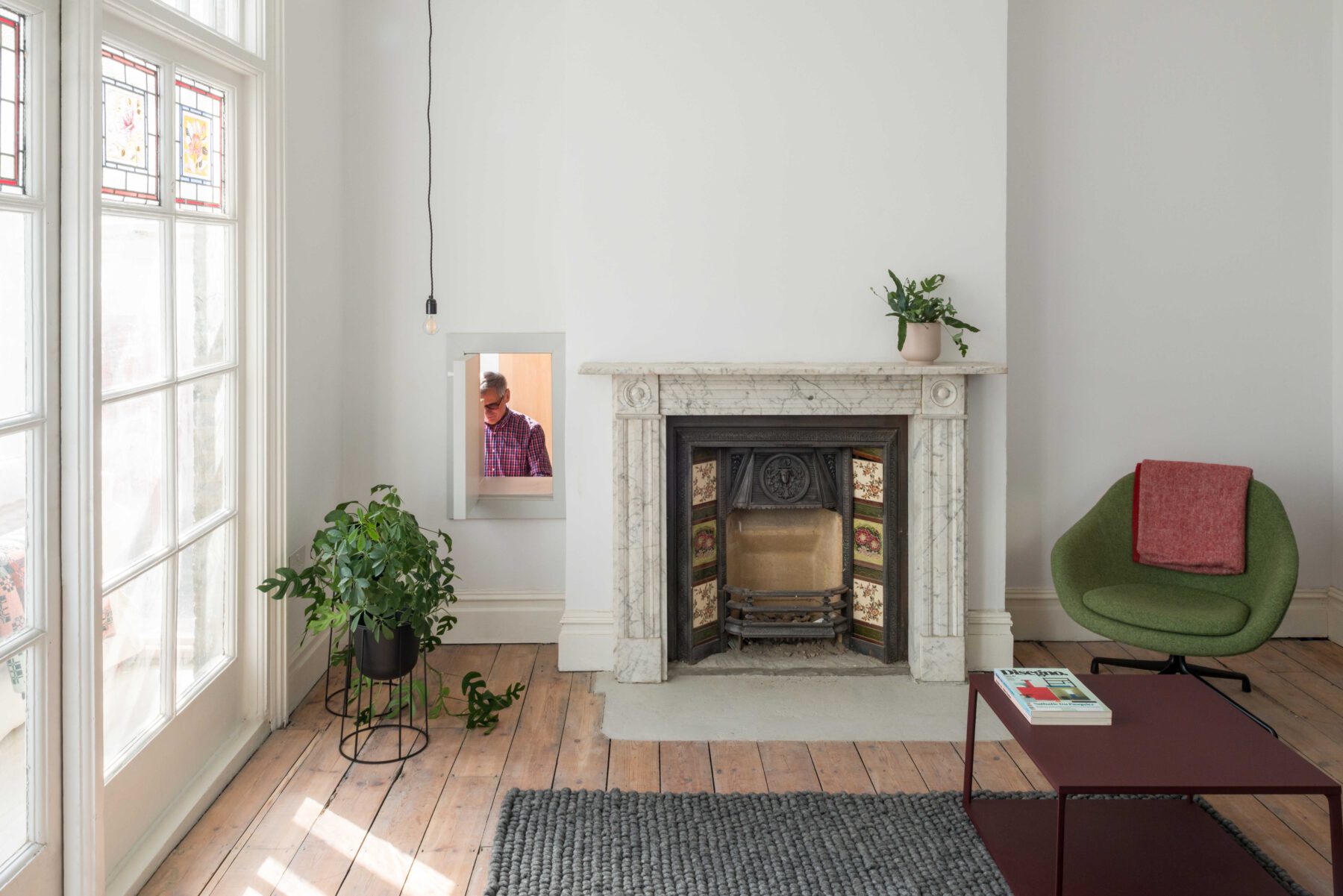

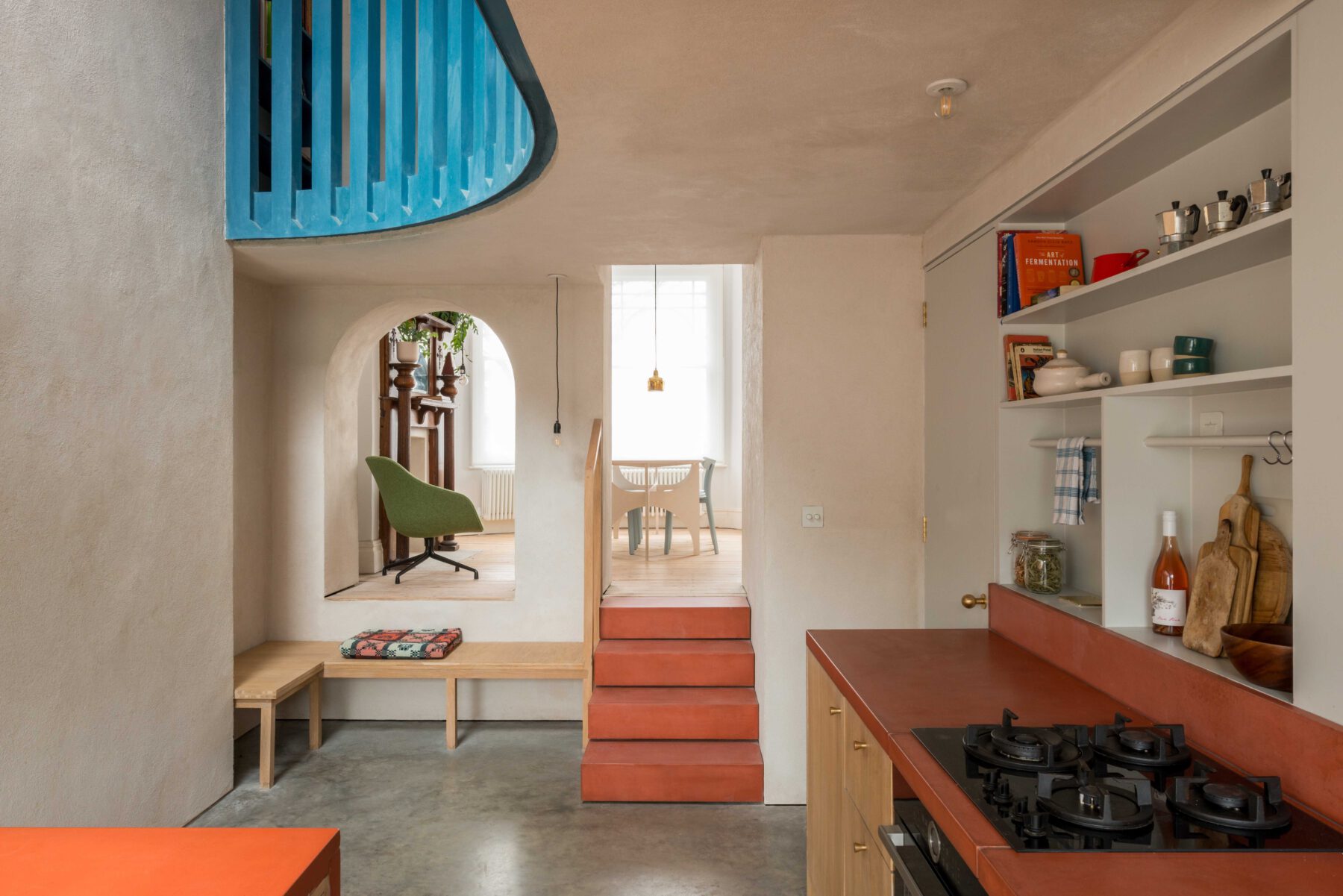

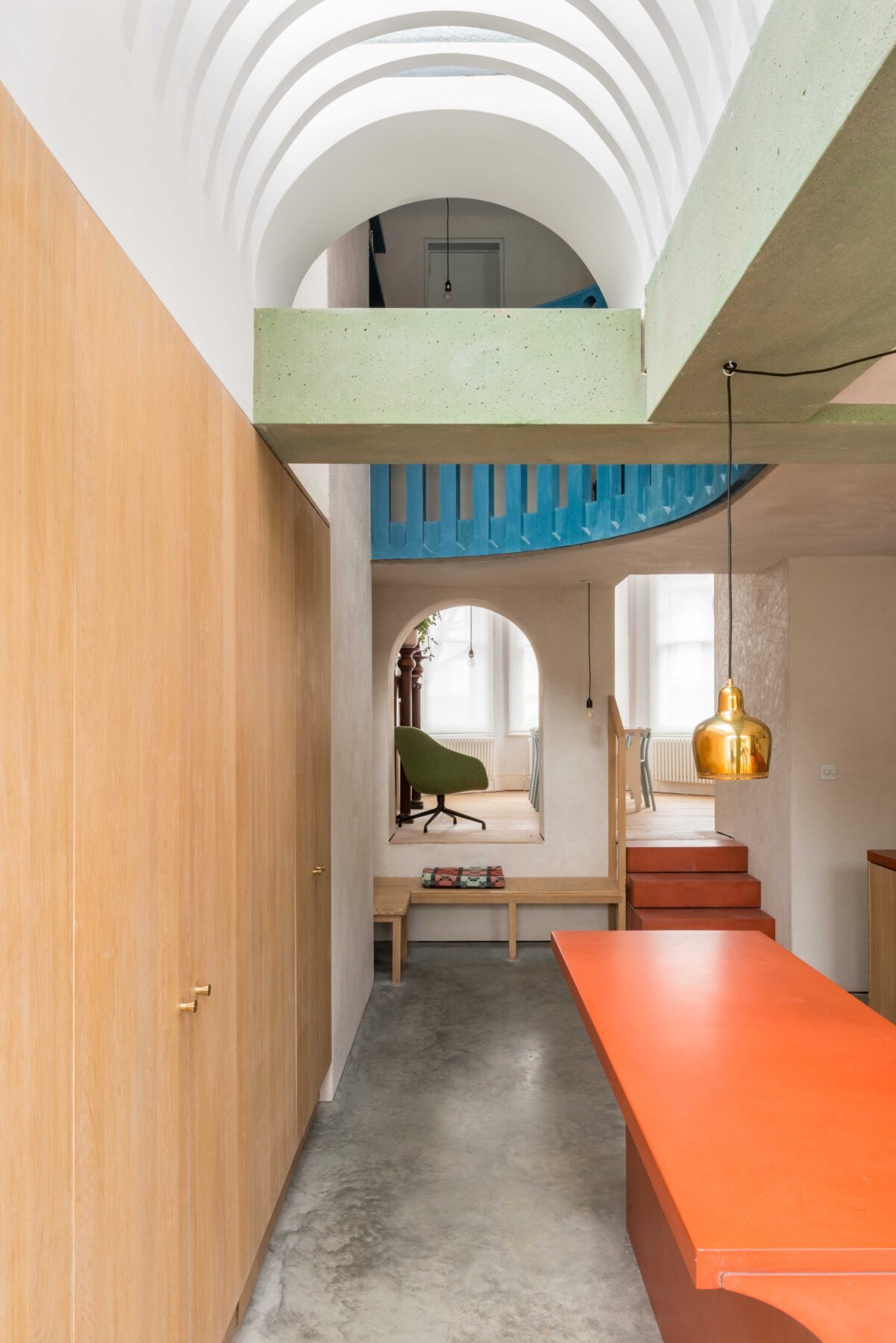

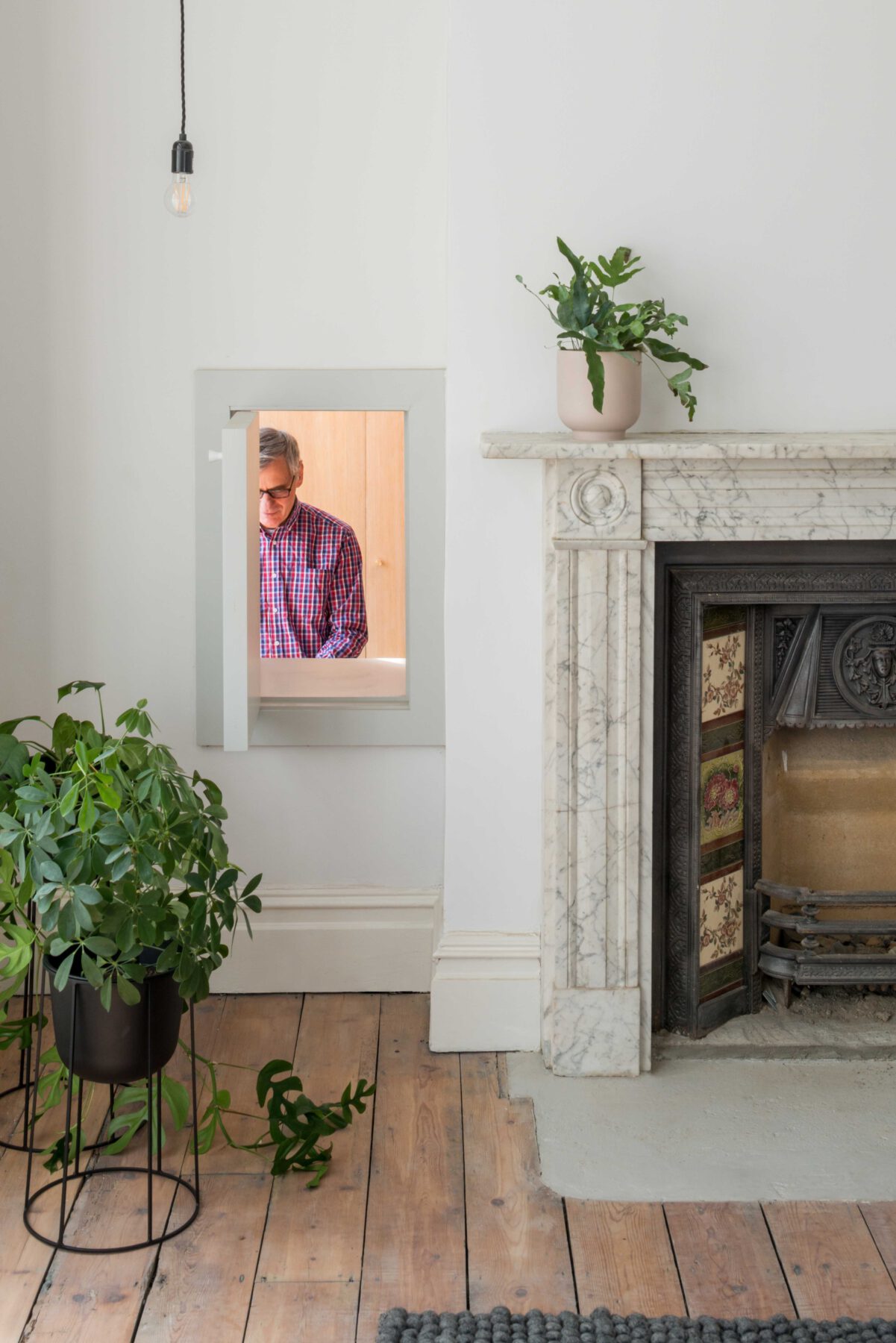

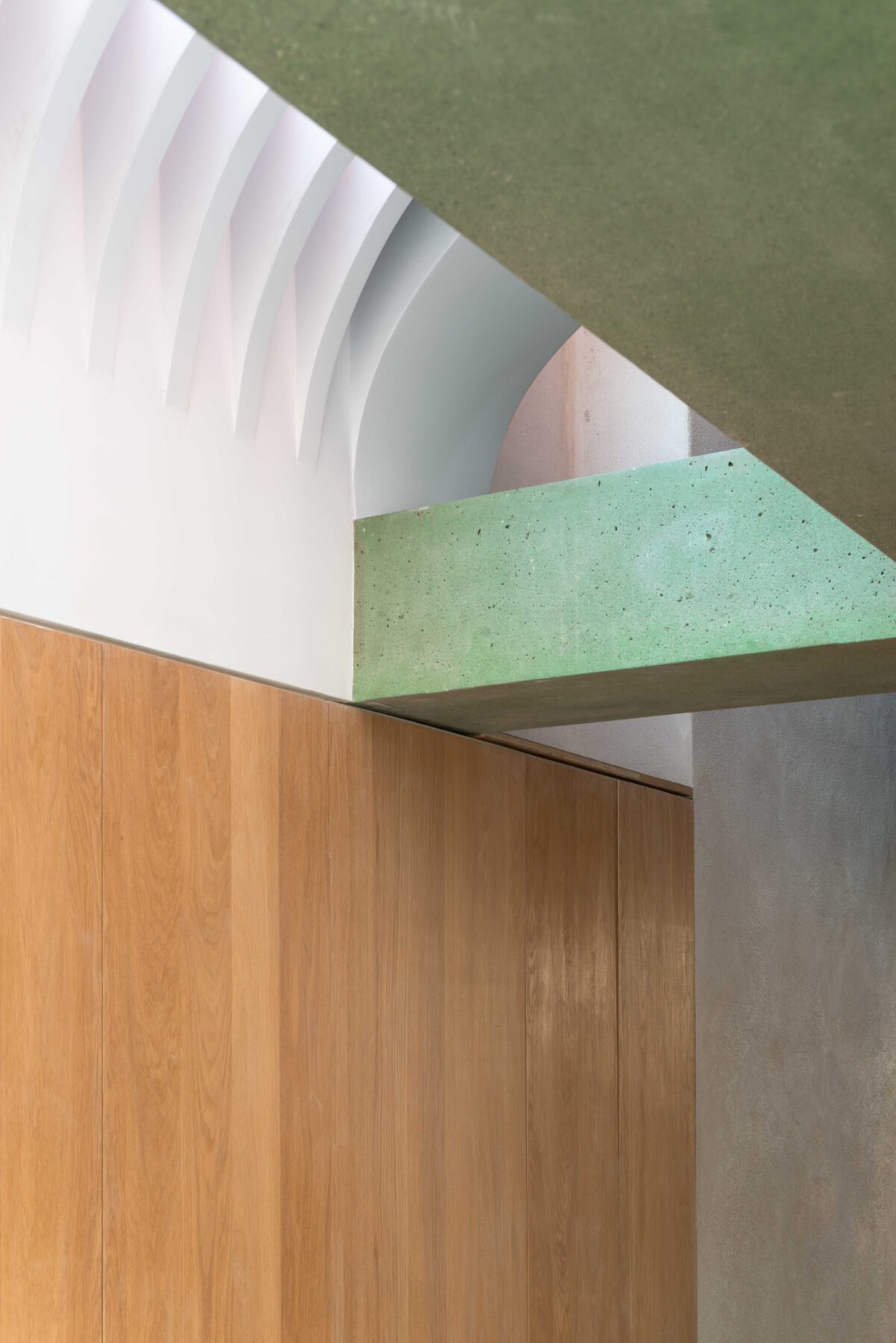

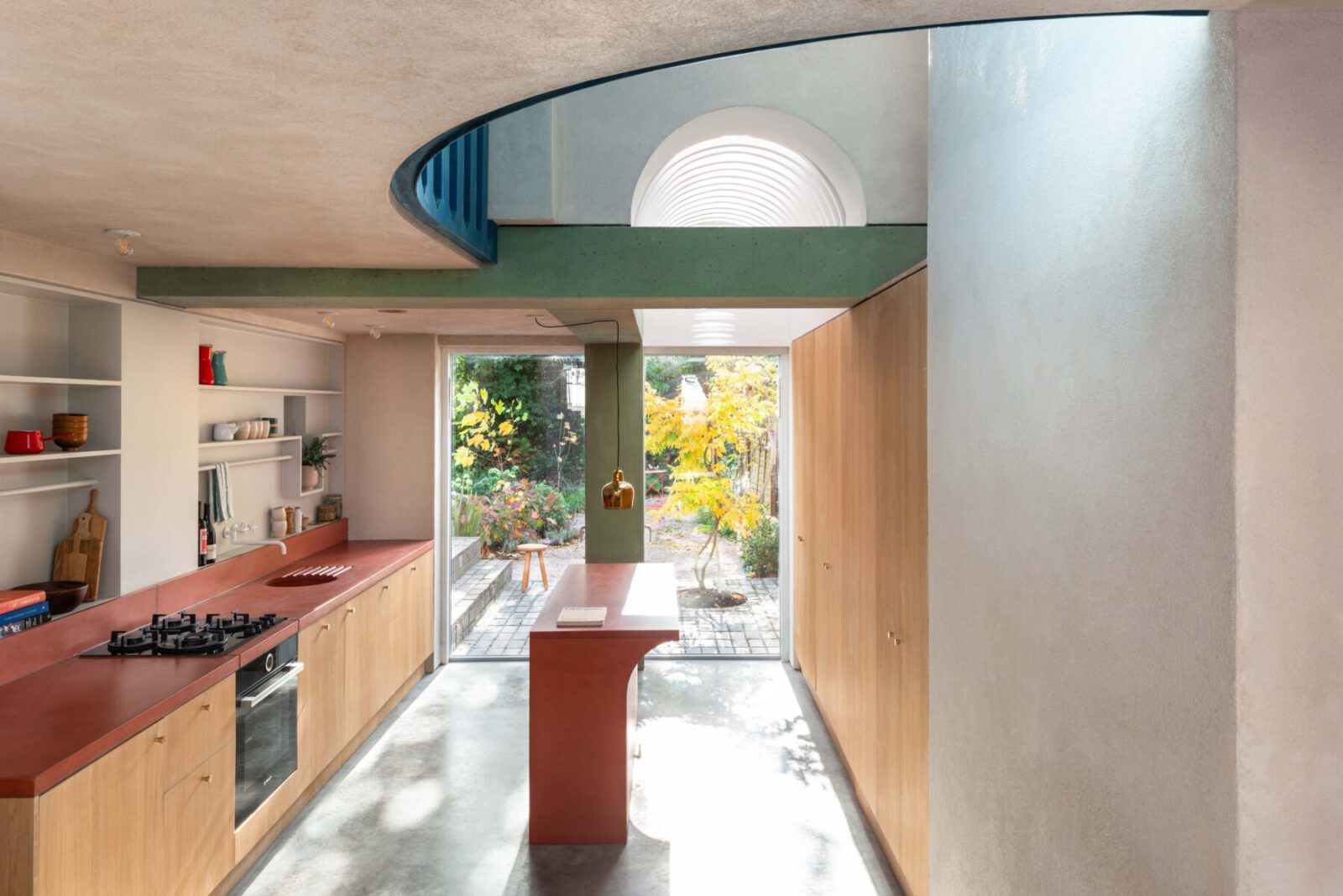

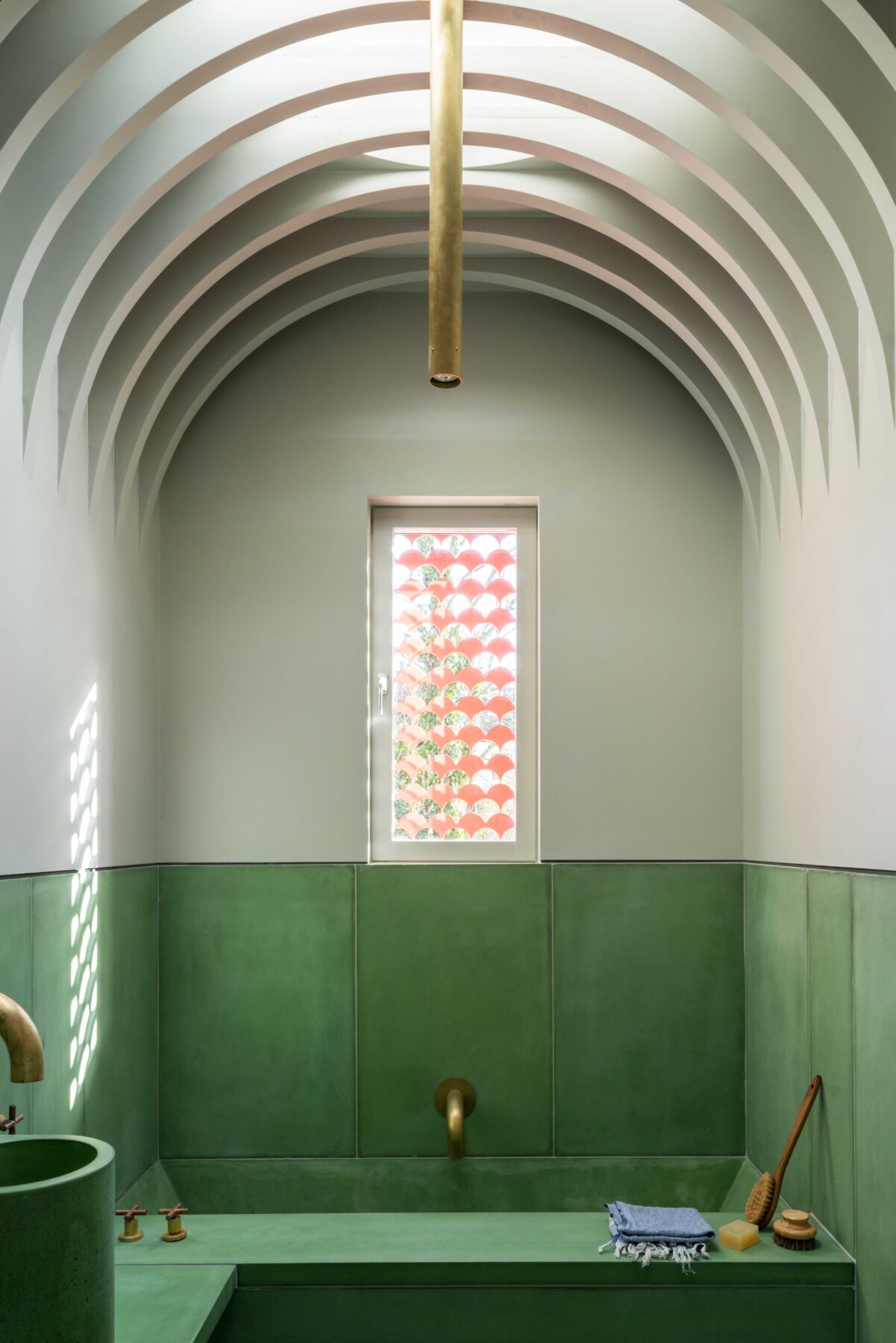

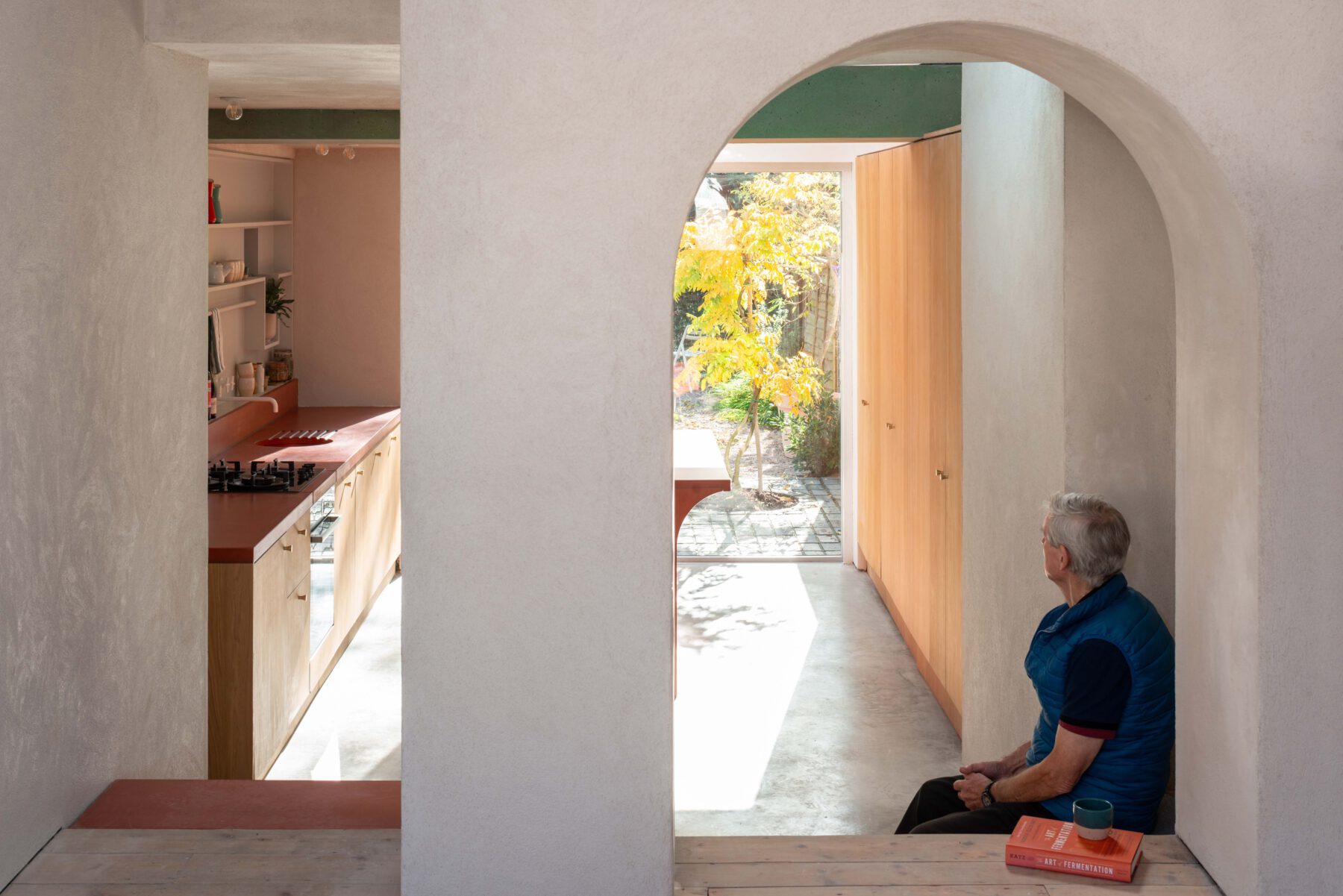

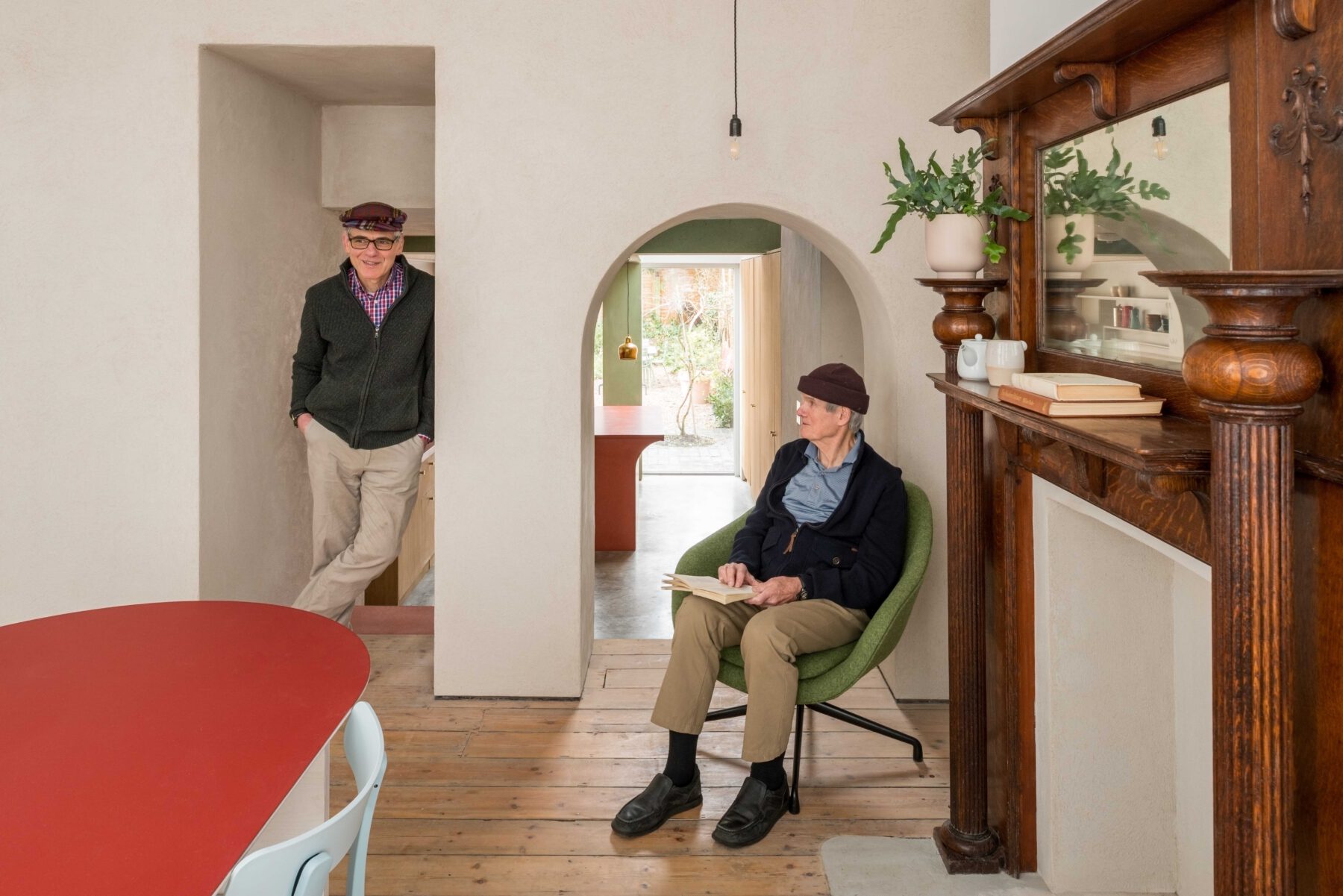

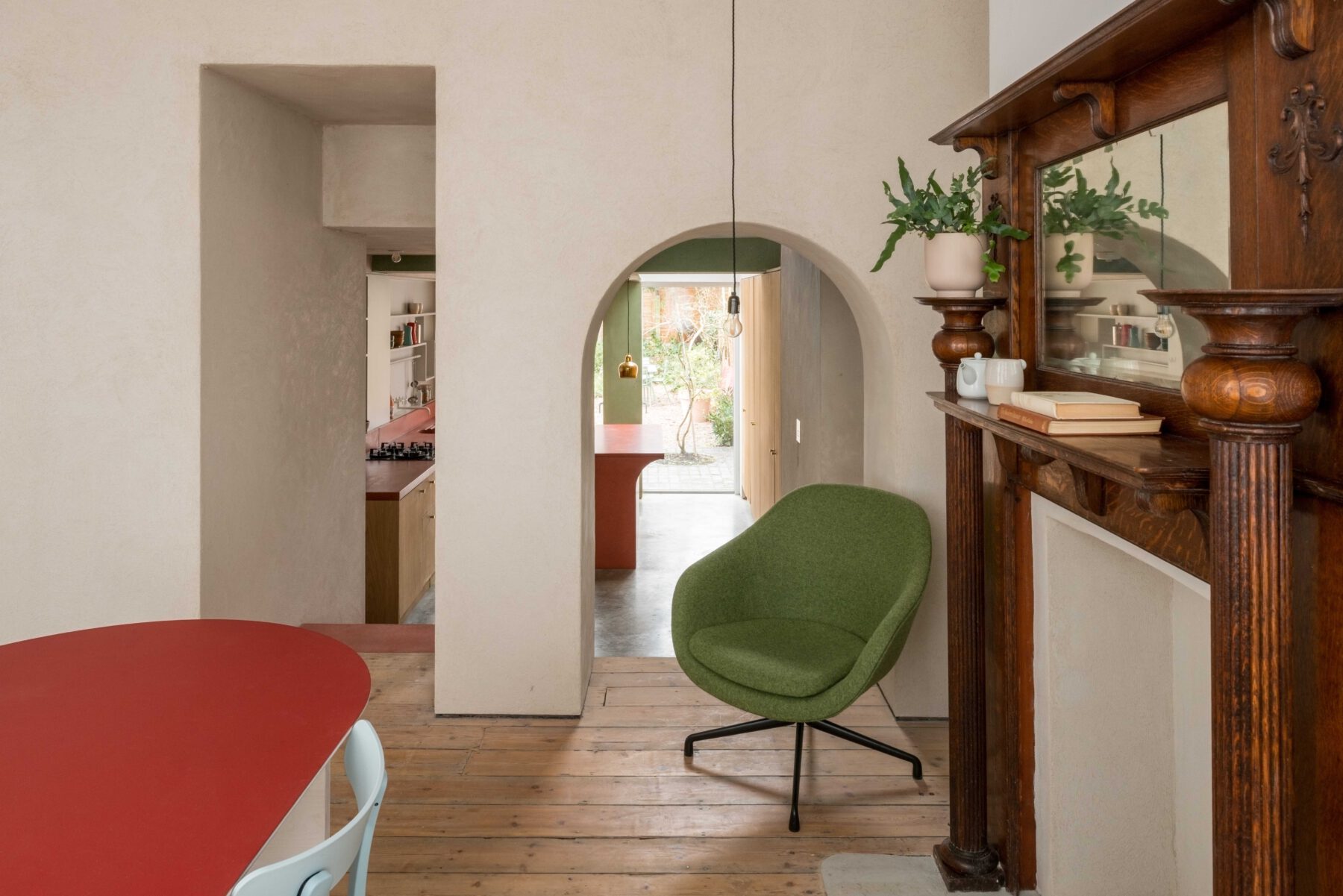

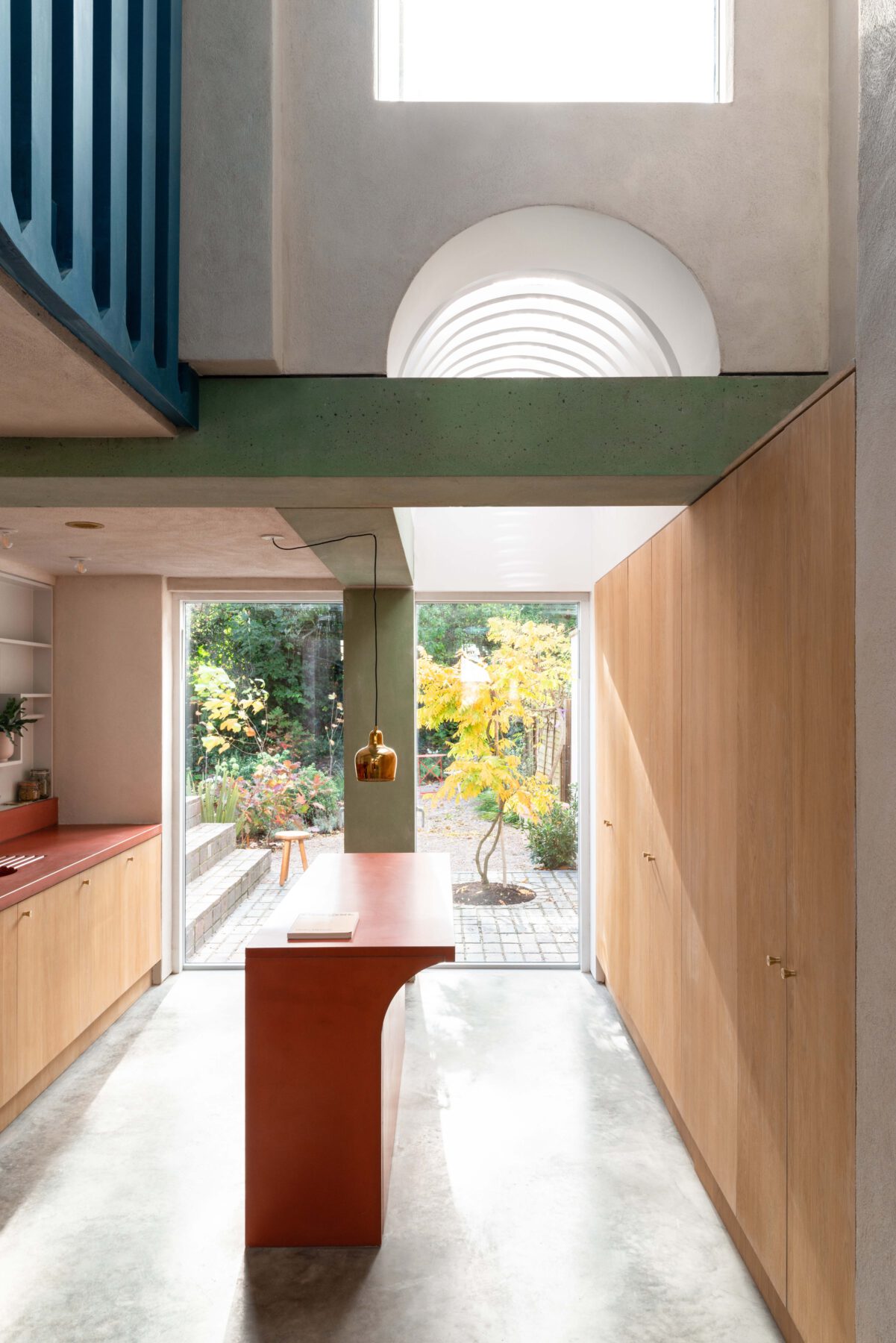

A second theme is the use of louvered vaulted ceilings witch bring diffuse light down into both the kitchen and bathroom. A double height space connects the new ground floor spaces with a new mezzanine on the first floor which in turn is connected to the main stair. This void allows light to penetrate deep into the house while also creating visual and aural connections through the house. Additional openings create similar connections on a smaller scale from the living room, dining room and study to this central void.
Innovative use of concrete

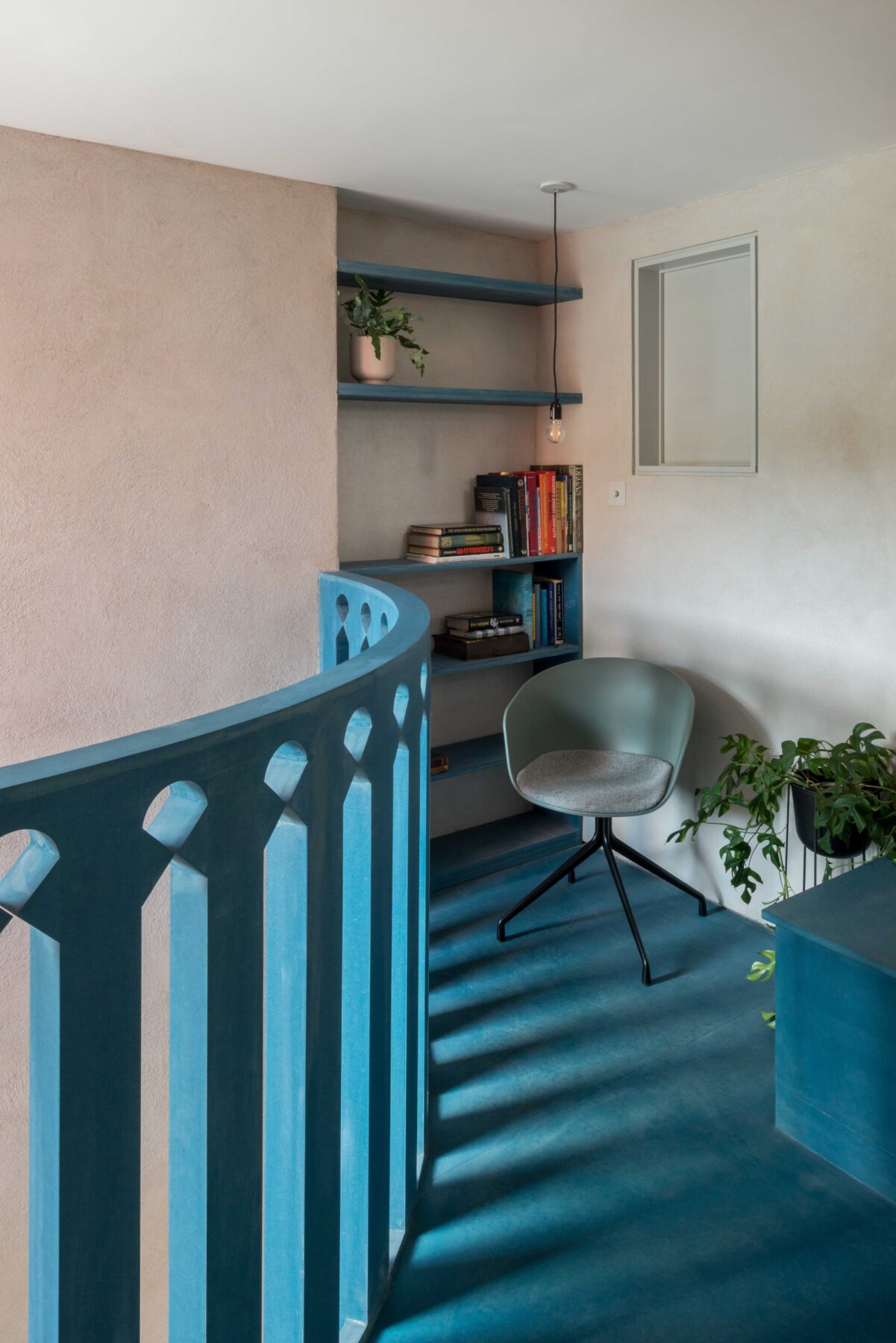

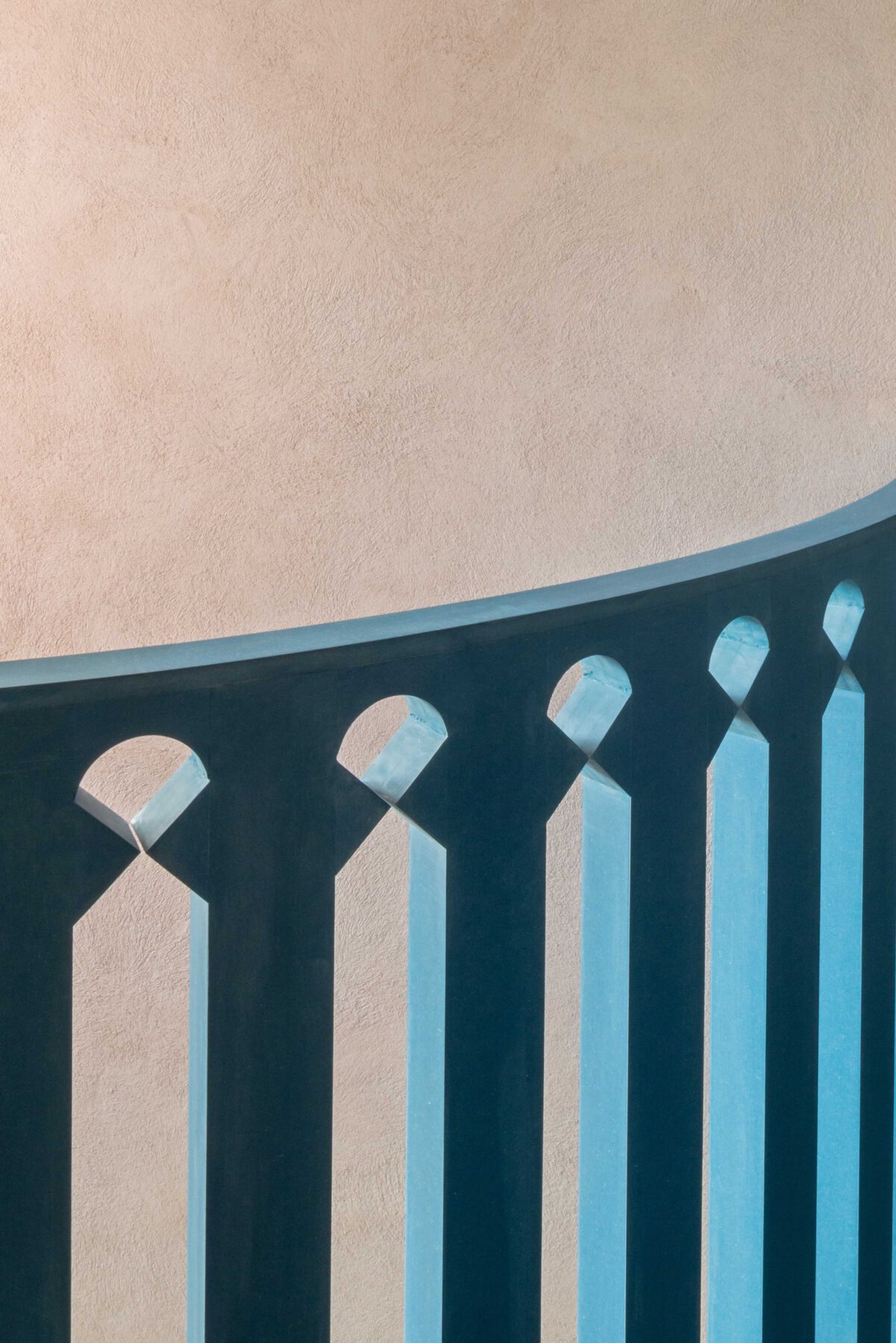

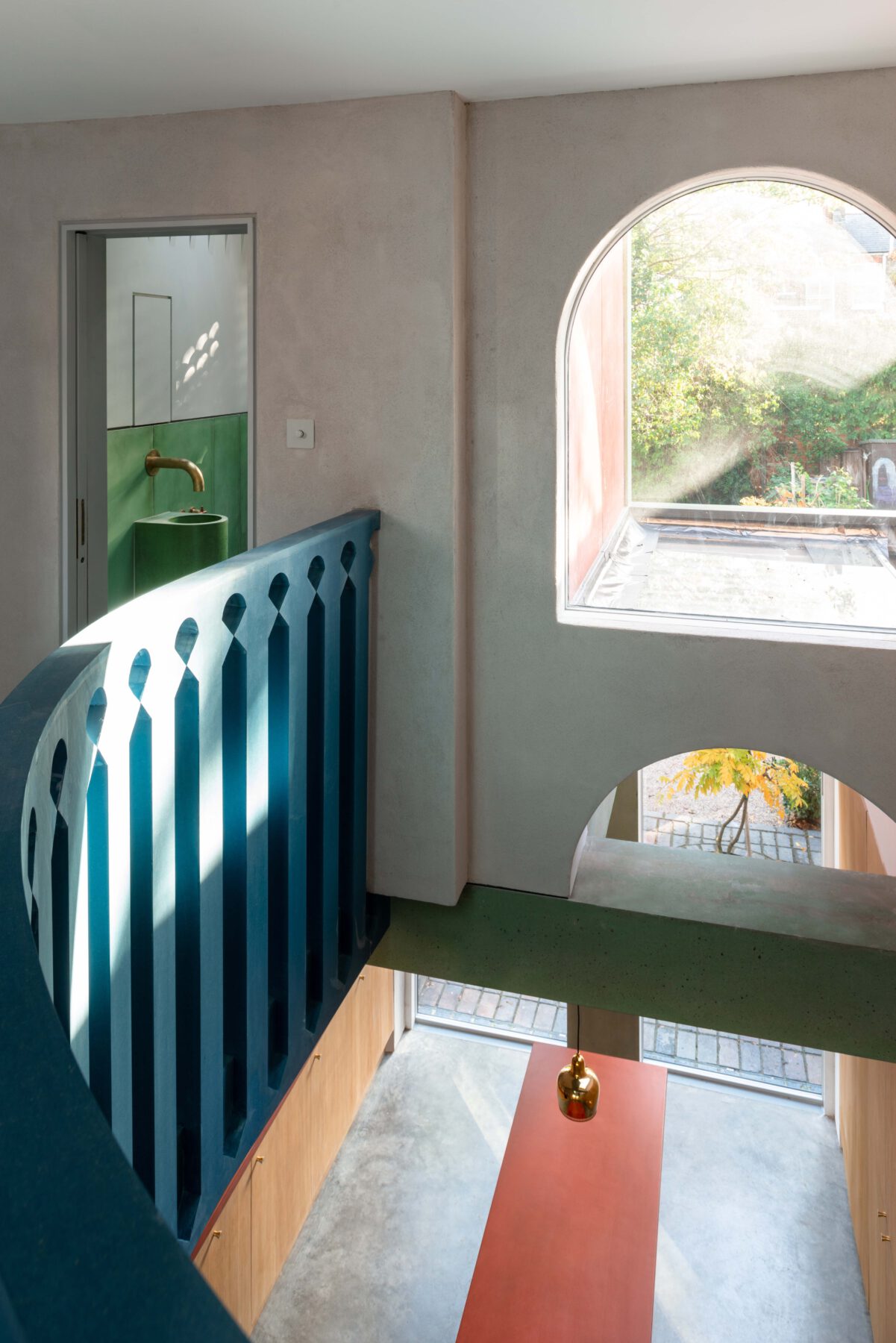

The design team tried to push the boundaries of one material – namely concrete. The innovative use of concrete not just as structure or architectural finish but as both combined. This approach was inspired by the surrounding Victorian architecture, where the brickwork is patterned and decorated while also being a loadbearing material whilst having the speed and quality by being fabricated of offsite. The colours and use of materials were also inspired by high Victorian architecture in terms of richness. The bathroom is intended to have a hammam like feel. The pattern on the main facade is mirrored in the balustrade which was CNC cut by the architect and delivered as an easy to assemble kit of parts. Other bespoke details are the shower, basin and bath spouts.

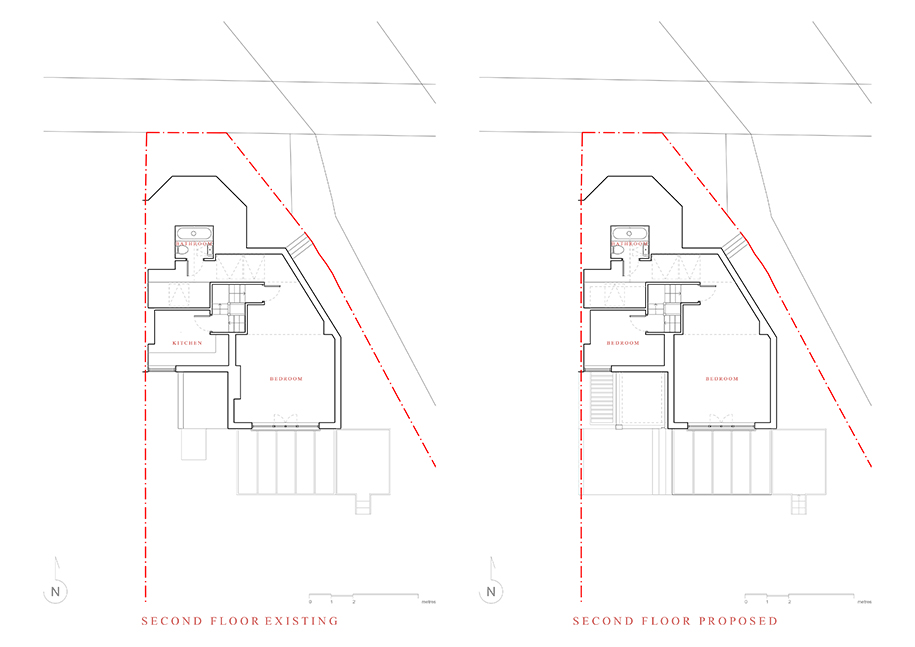

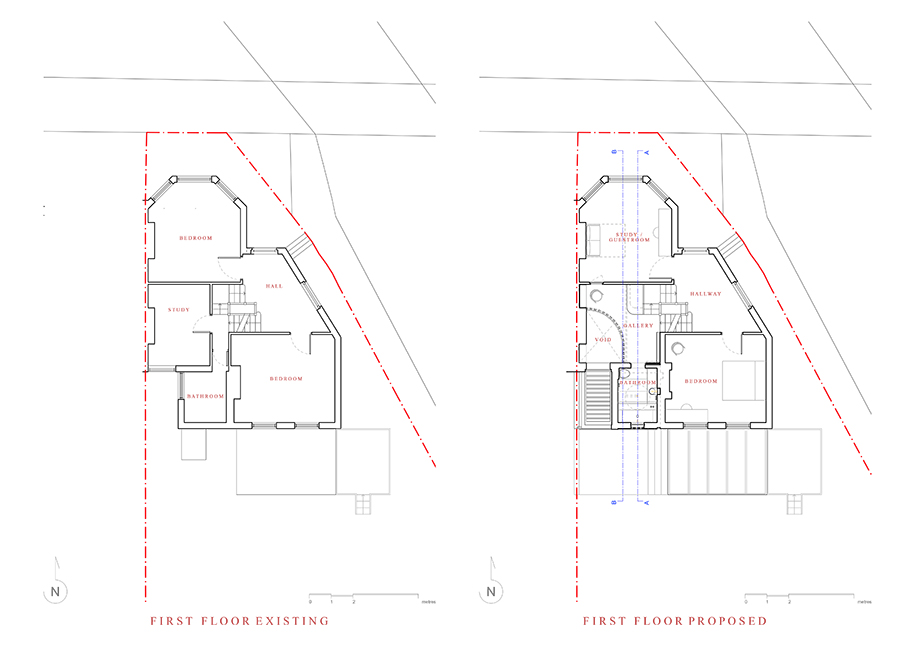

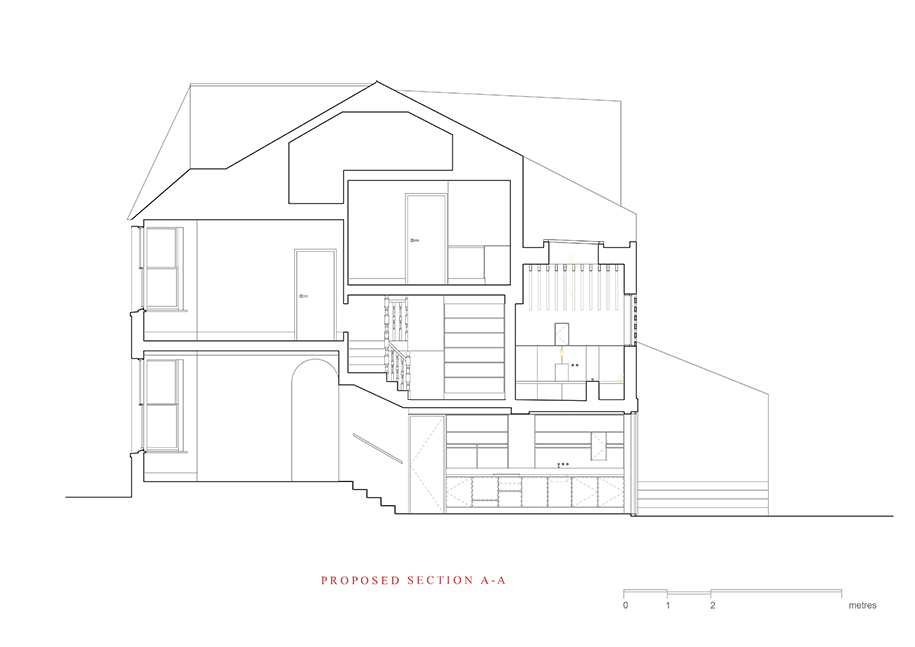

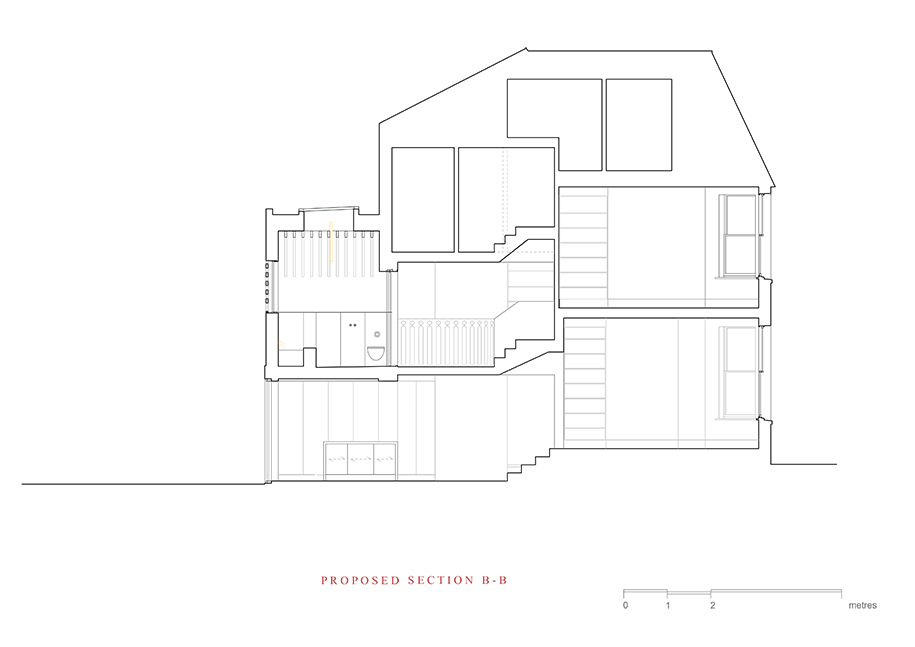

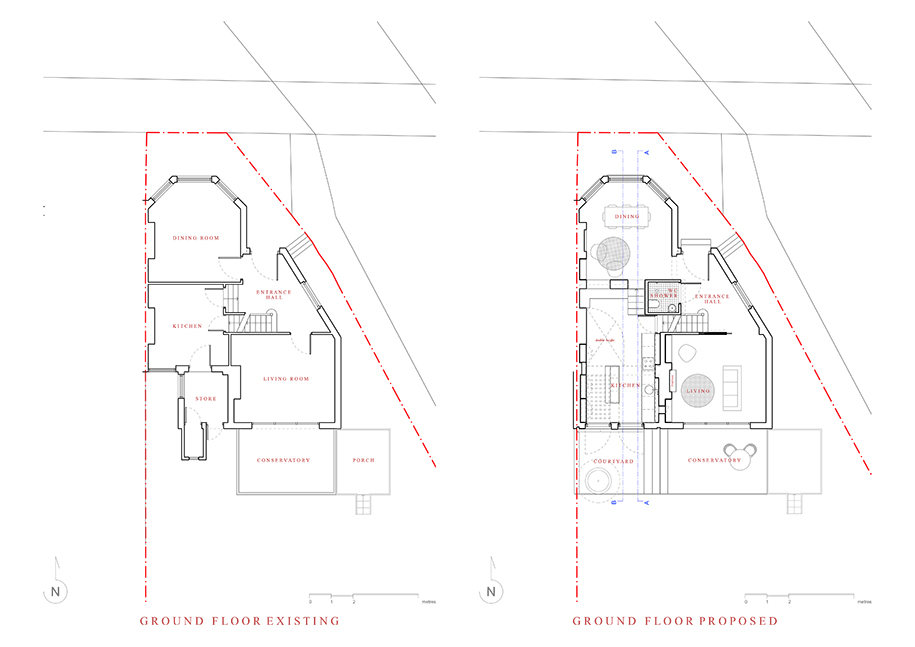

Drawings
Facts & Credits
Project title House Recast
Typology Extension, Redesign
Location Haringey, North London, UK
Project area prior to works 120 sq.m.
Project area after works 142 sq.m.
Architects Studio Ben Allen
Team Ben Allen + Omar Ghazal (project leader)
Structural Engineer Entuitive
Landscape design Daniel Bell Landskap
Contractor Peridot
Structural and exterior concrete Cornish Concrete Products
Interior Concrete Concreations
Photography + film French + Tye
Awards Overall winner of the 2021 Don’t Move Improve Awards
