Architect Nuno Capa designed an office building in Matosinhos, Porto, with an emblematic presence. Photographer Joao Morgado has offered a photographic coverage of the finished construction.

The Urbo Business Centre is a building for offices and services located in Matosinhos, in the Metropolitan Area of Porto.

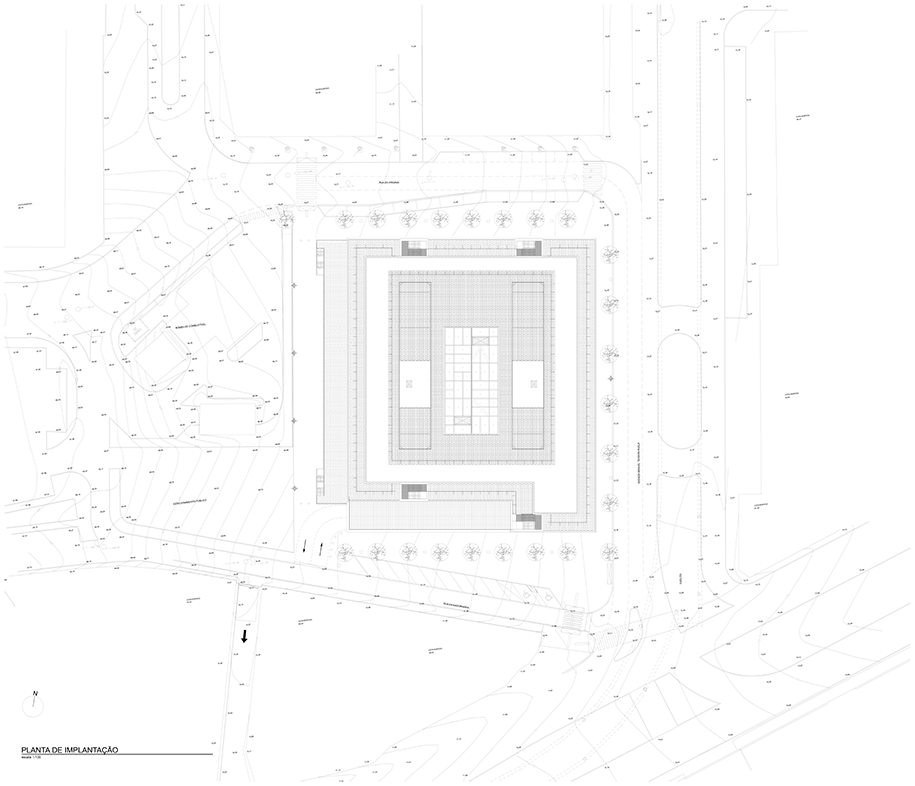

Characterised by the single volume, with a detached implantation of rectangular geometry, the building is inserted in a corner plot with about 6000m2.

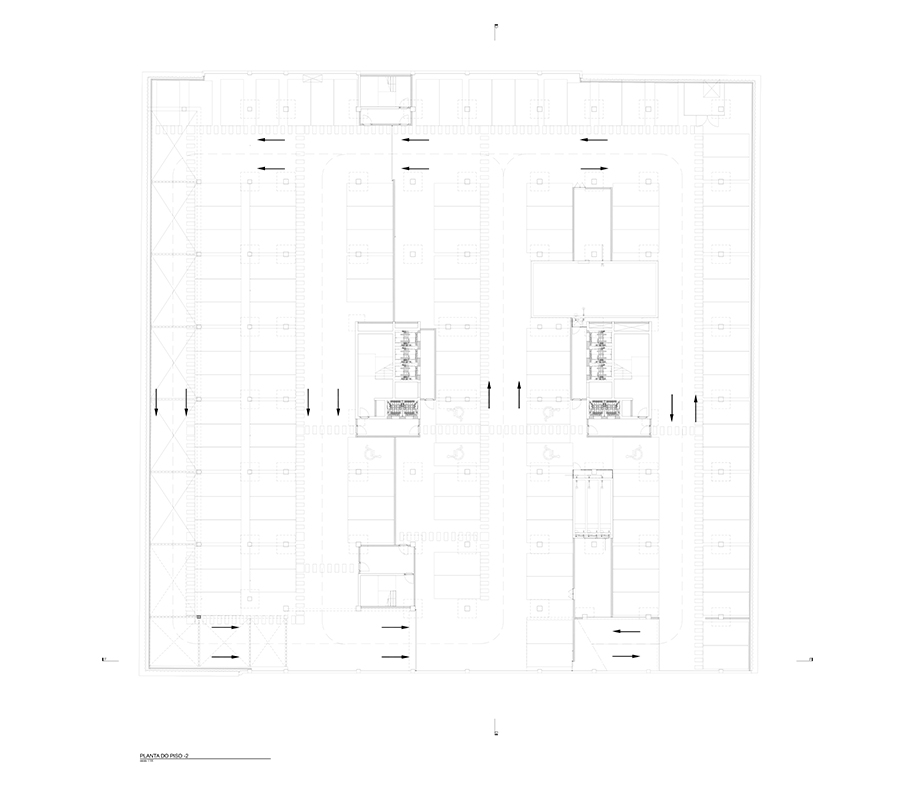

With a total construction area of 25600m2, the building comprises a total of eight floors,six of which above groundfor offices and two basement floors with 200 underground parking spaces, with the exception of an area on the west side on the 1st floor, also on the basement level, suitable for service providers.

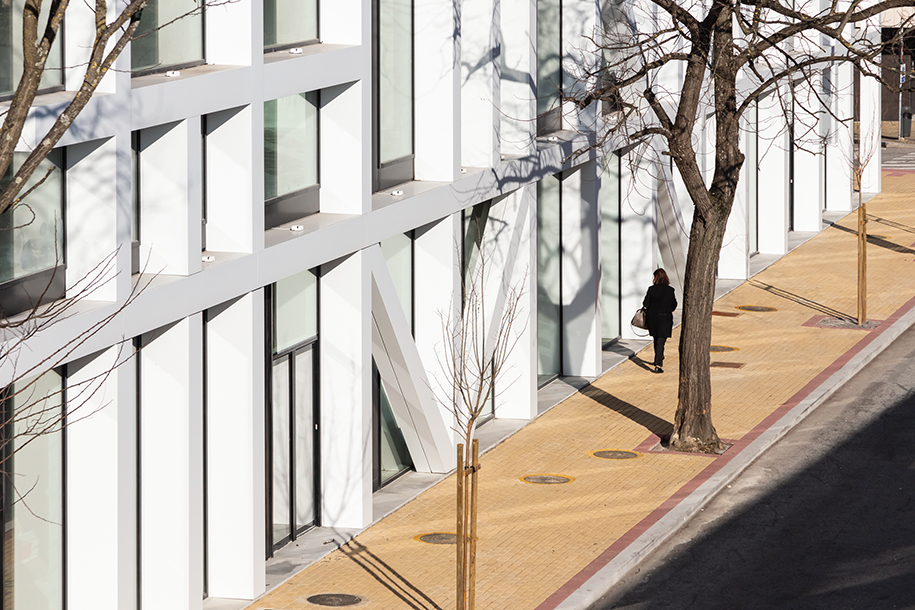

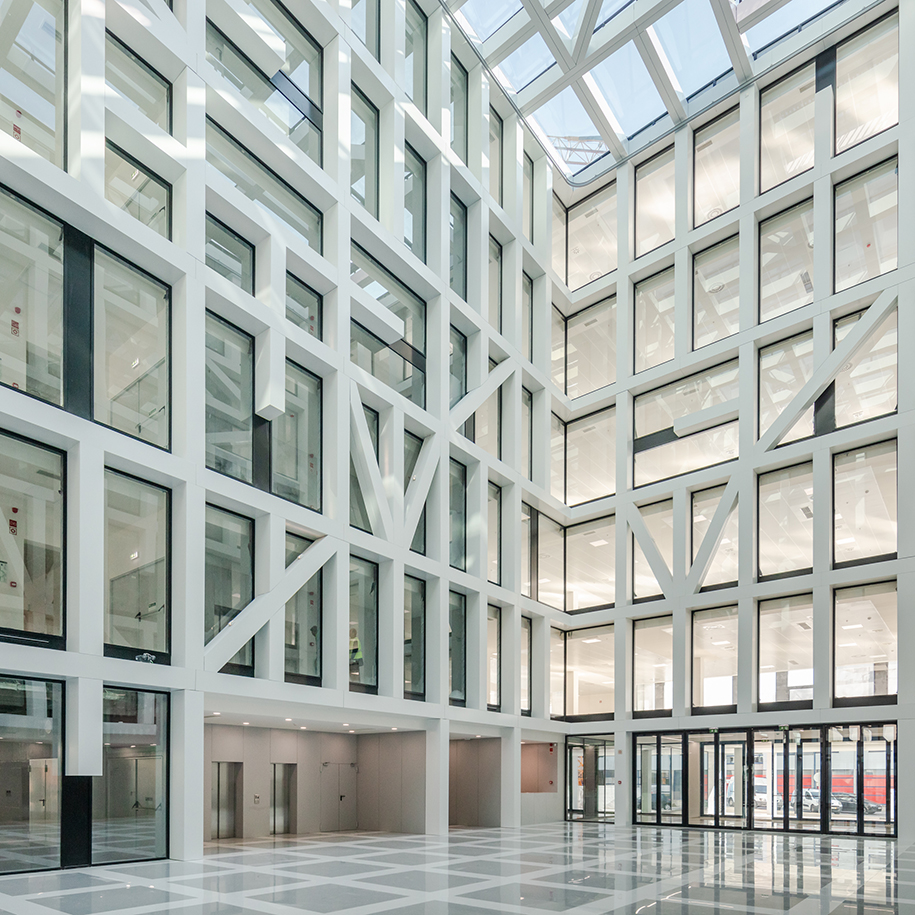

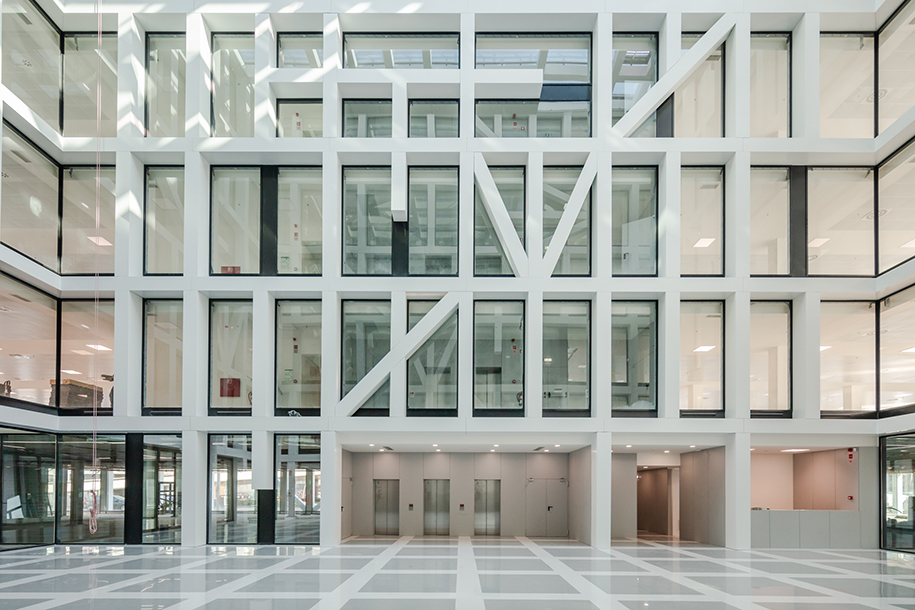

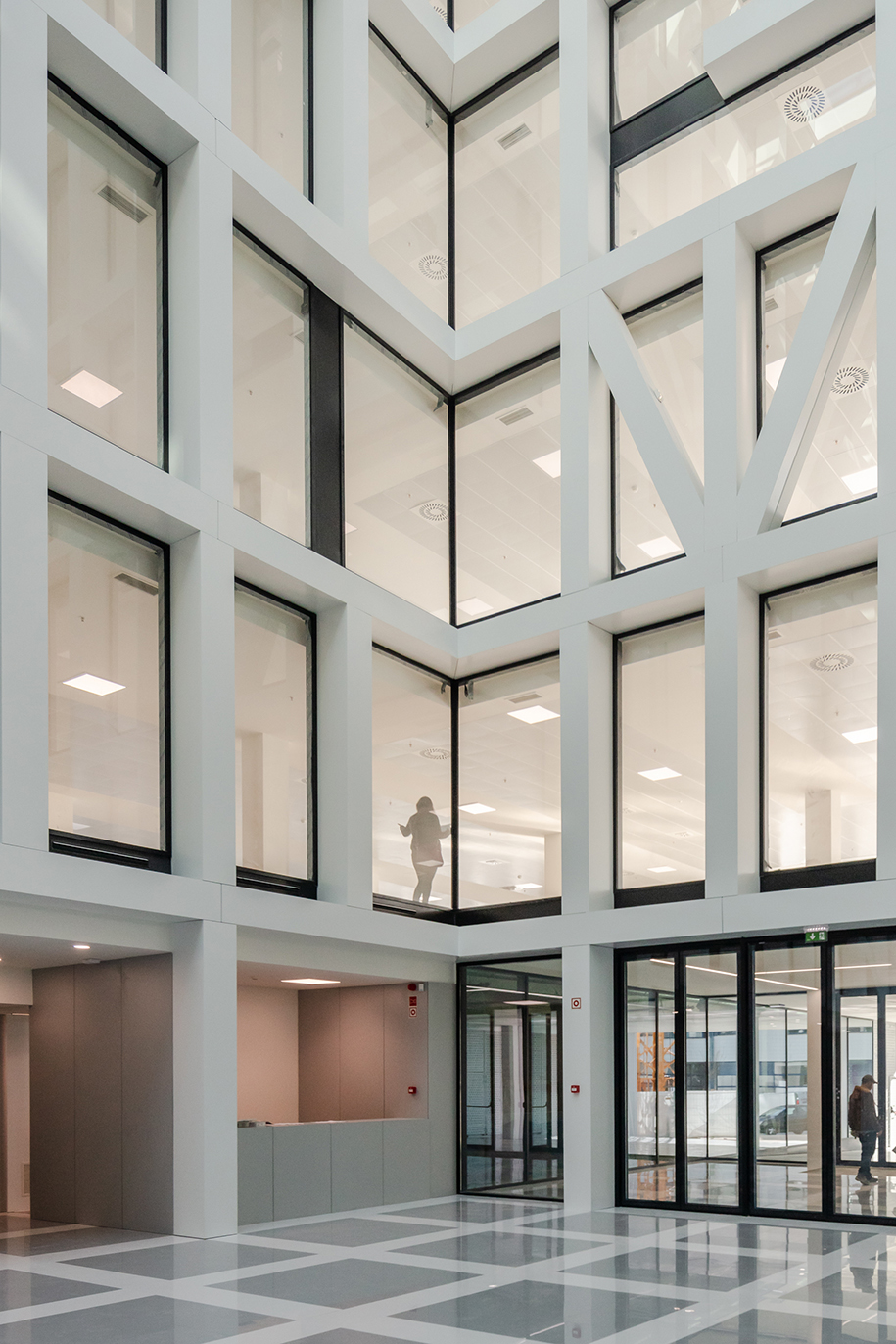

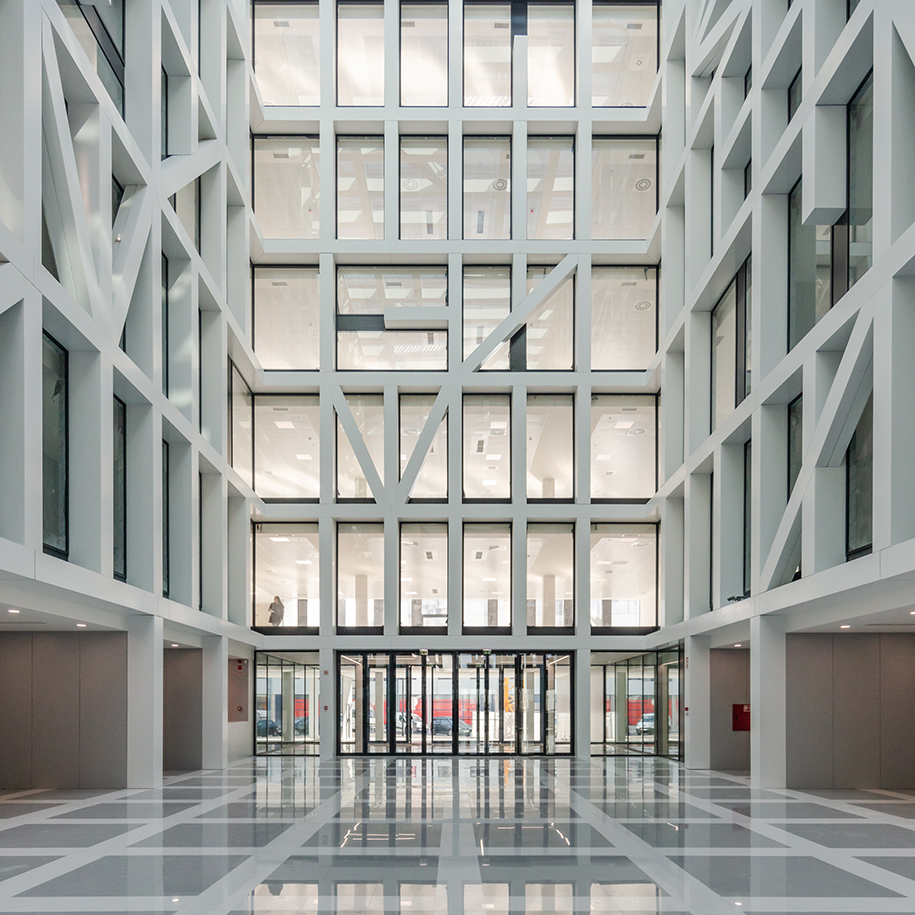

The sidewalks, wider on the north and on the south of the building, establish the importance of creating a double entrance in opposite facades. These two entrances, which, in turn,originate a crossing line, meet themselves in the core of the building – a foyer with the total height ofabout 24m.

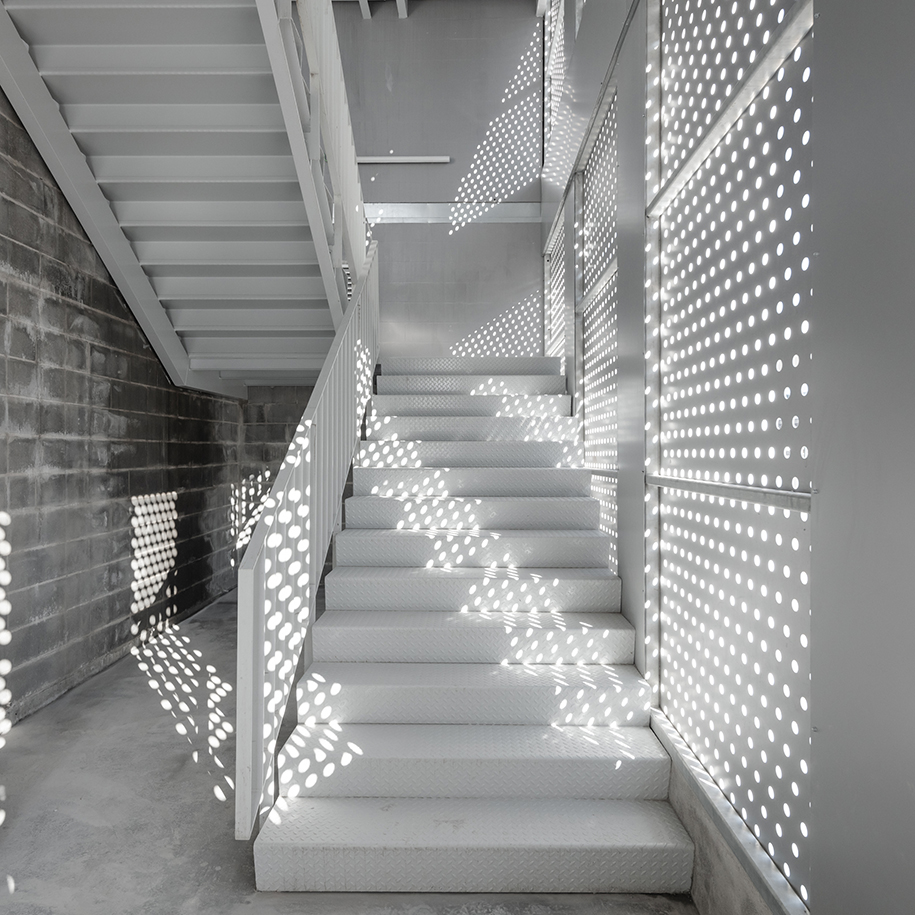

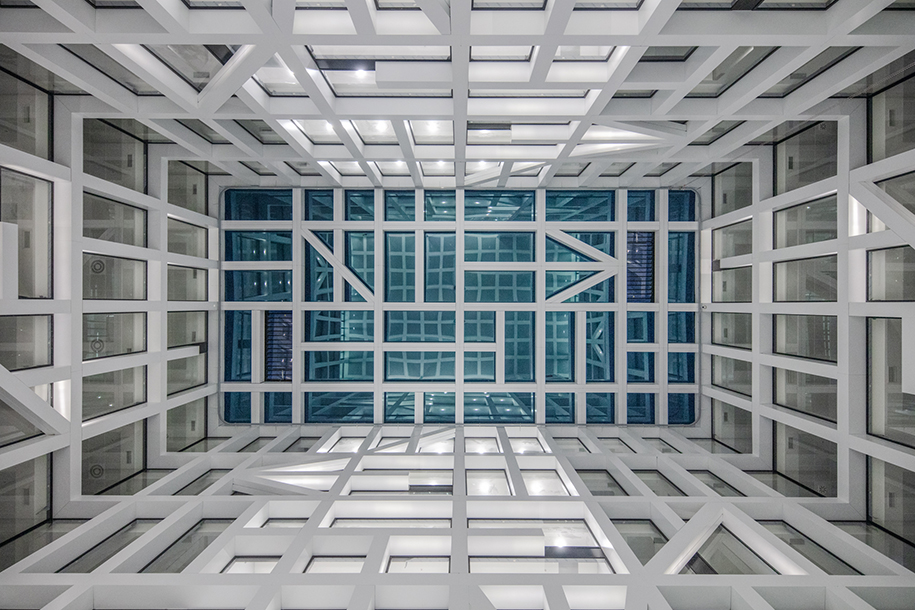

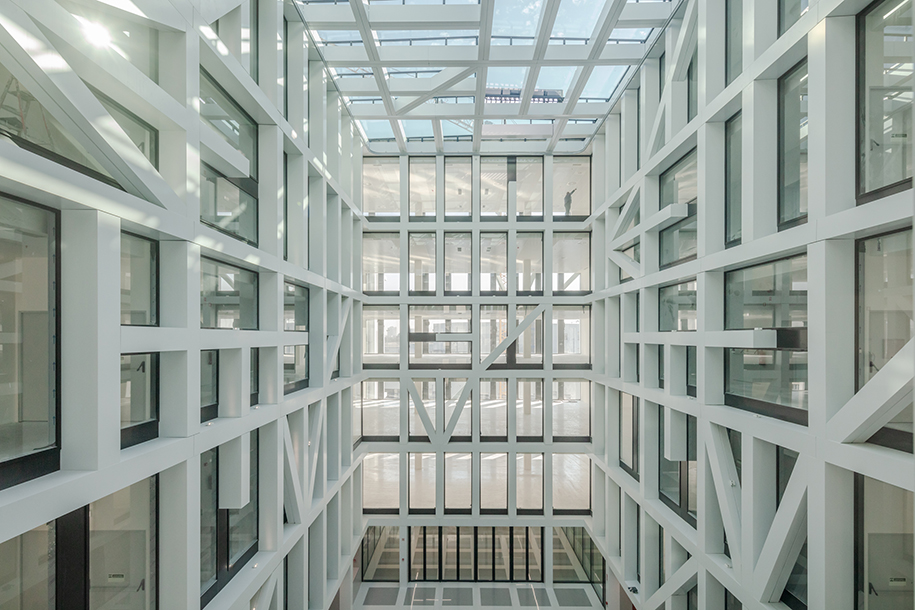

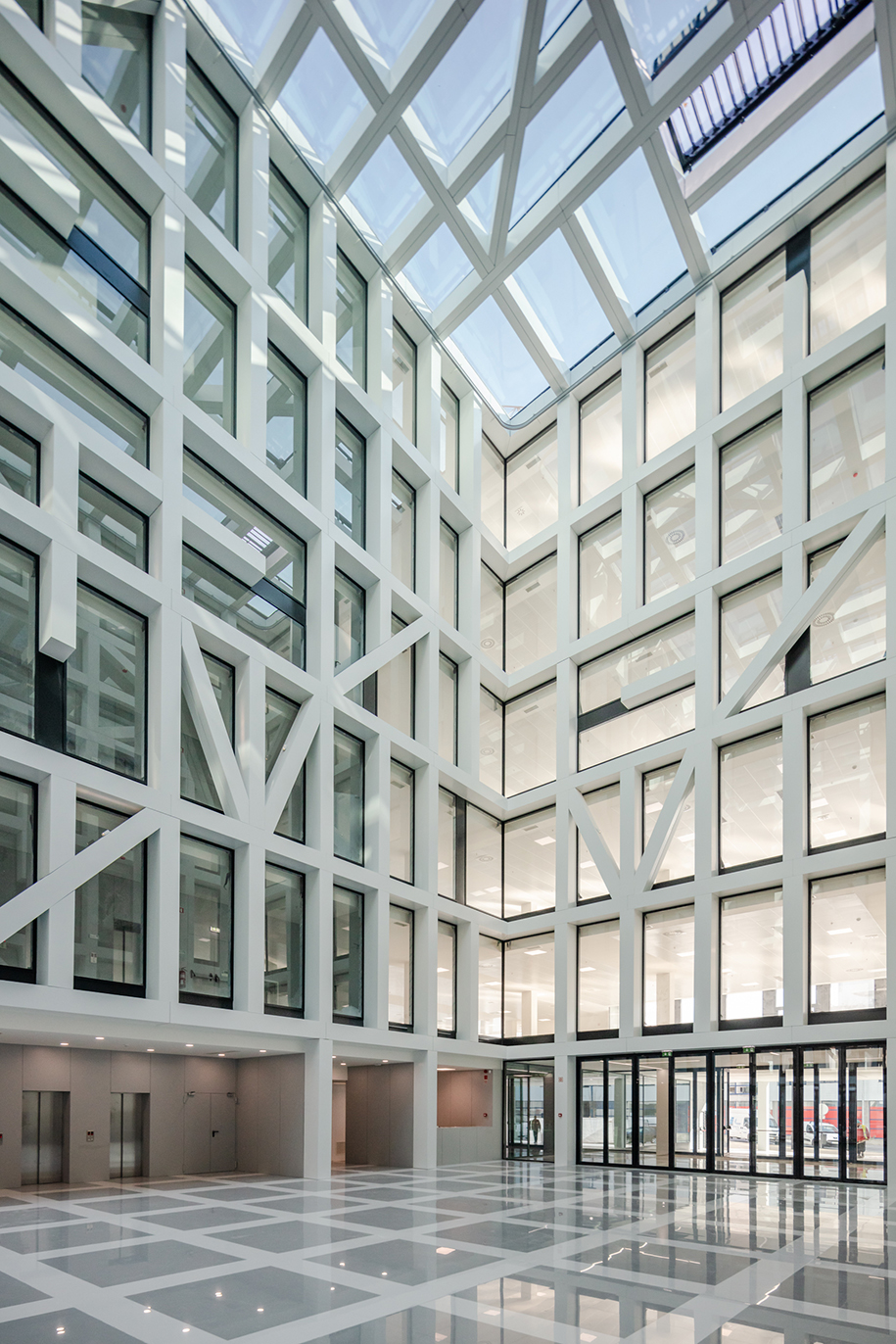

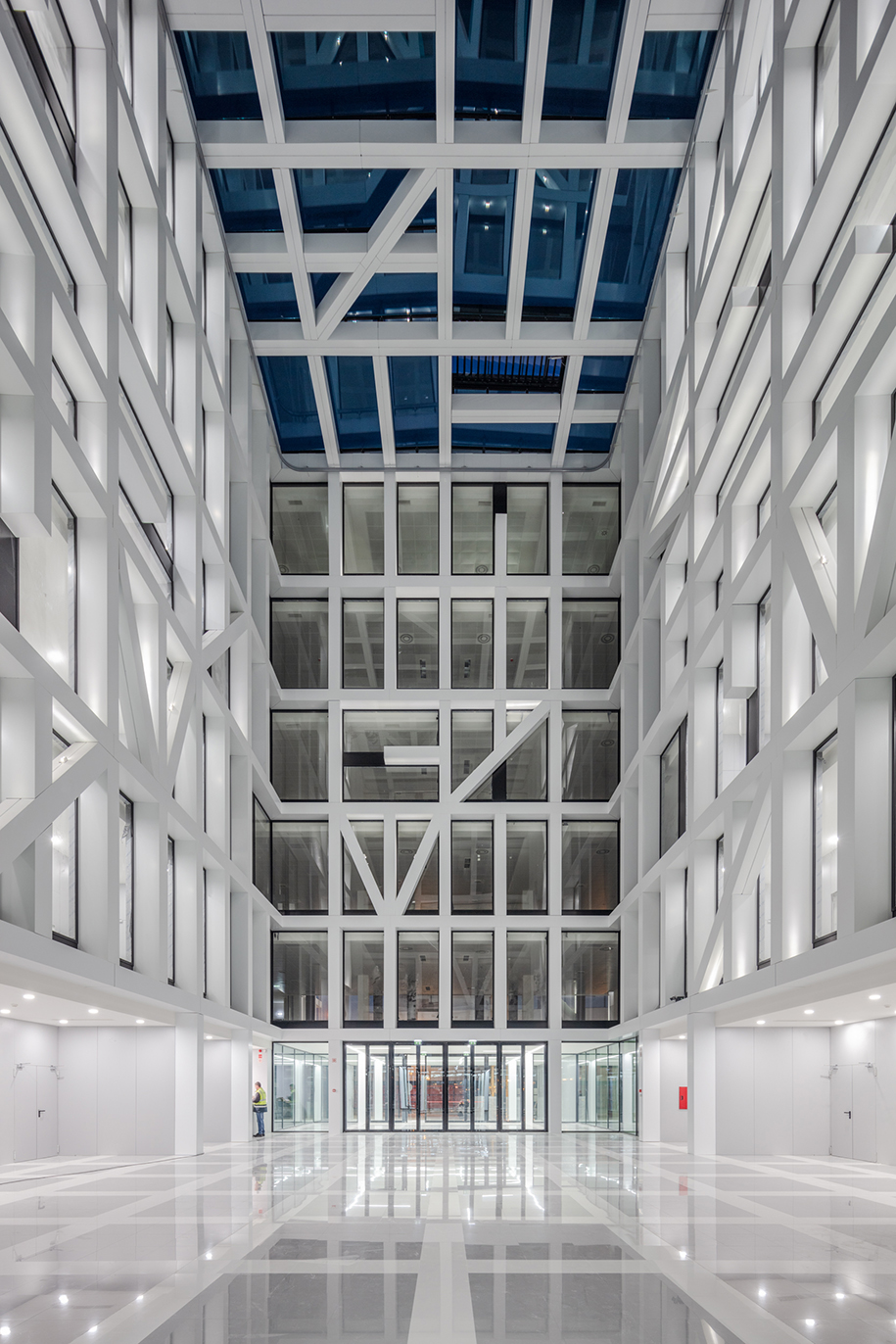

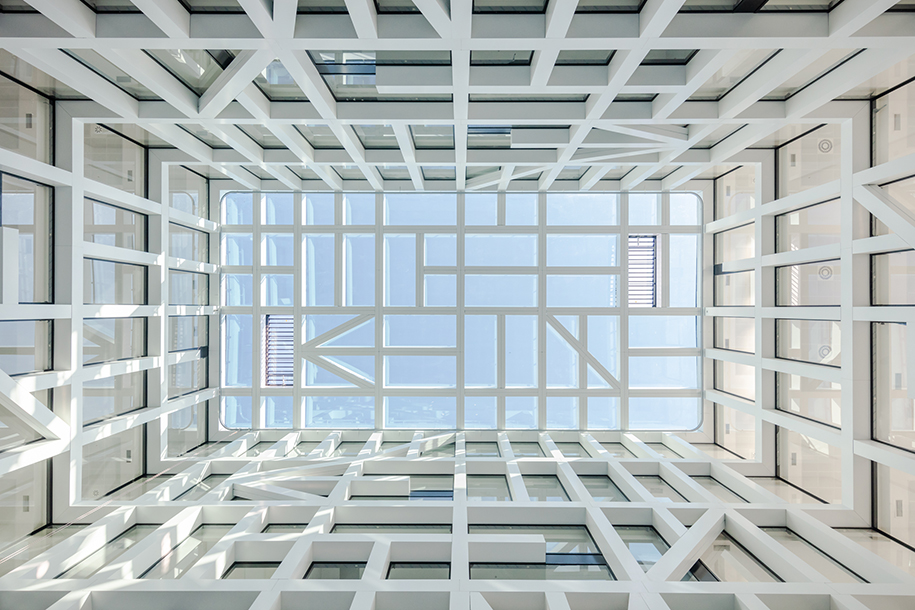

The foyer is an empty space, but vital in the spatial and functional organisation of the building, where a large skylight reinforces the importance of the place. This foyer sets the distribution of the building, with two vertical access cores, stairs and group of elevators, taking to the upper floors of offices and to the lower floors of parking.

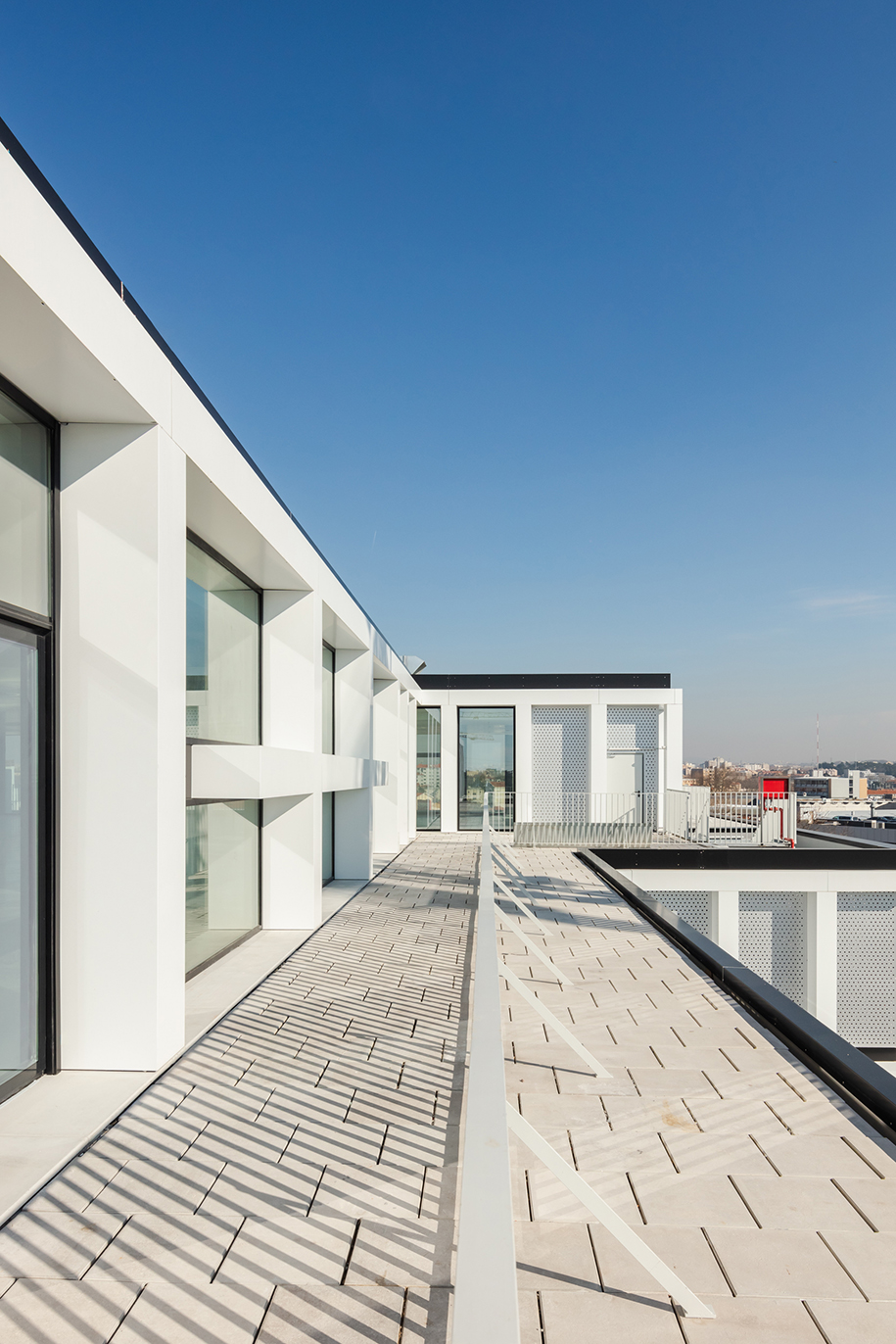

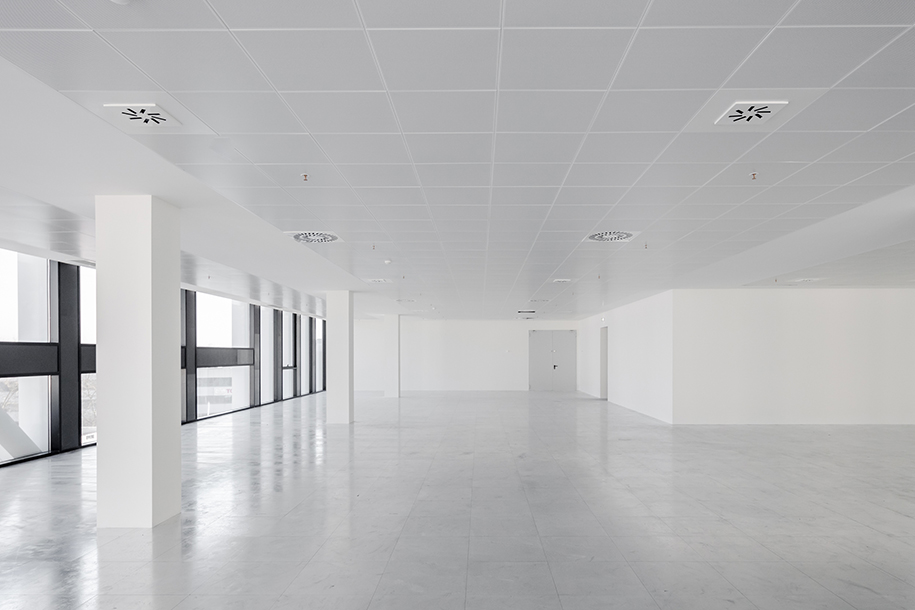

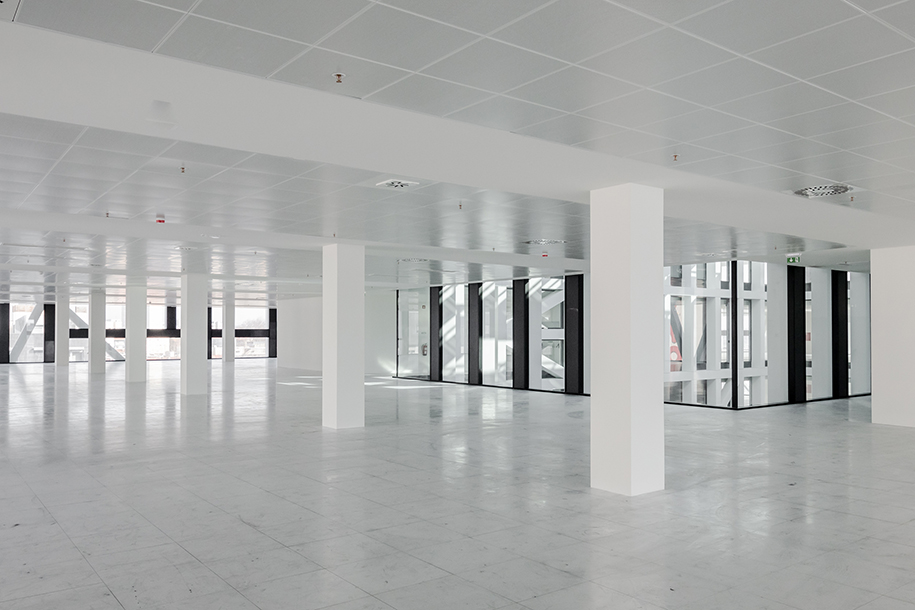

The upper floors, with about 3000m2 each, organised around the foyer, are serviced by the two opposite nerve centres, in two large spaces, and distributed in order to be enveloped by the exterior and interior facades. These nerve centres also take to the building’s top-floor (on the sixth floor), in which two smaller volumes conceal the heating, air-conditioning and ventilating mechanical equipment.

\

The Urbo Business Centre presents in its design and development an architectonic solution based on two key points: an office space program, with a flexible spatial organisation enabling the establishment and usage by a single occupant, or its transformation into different spaces to host manifold occupants; and on a constructive programme, both at the level of structure and cladding elements, as well as in terms of a set of infrastructures based on the most recent and best sustainability guidelines and practices, not only during the design and construction phases, but also in what refers to the life span of the building thus reducing maintenance and conservation costs

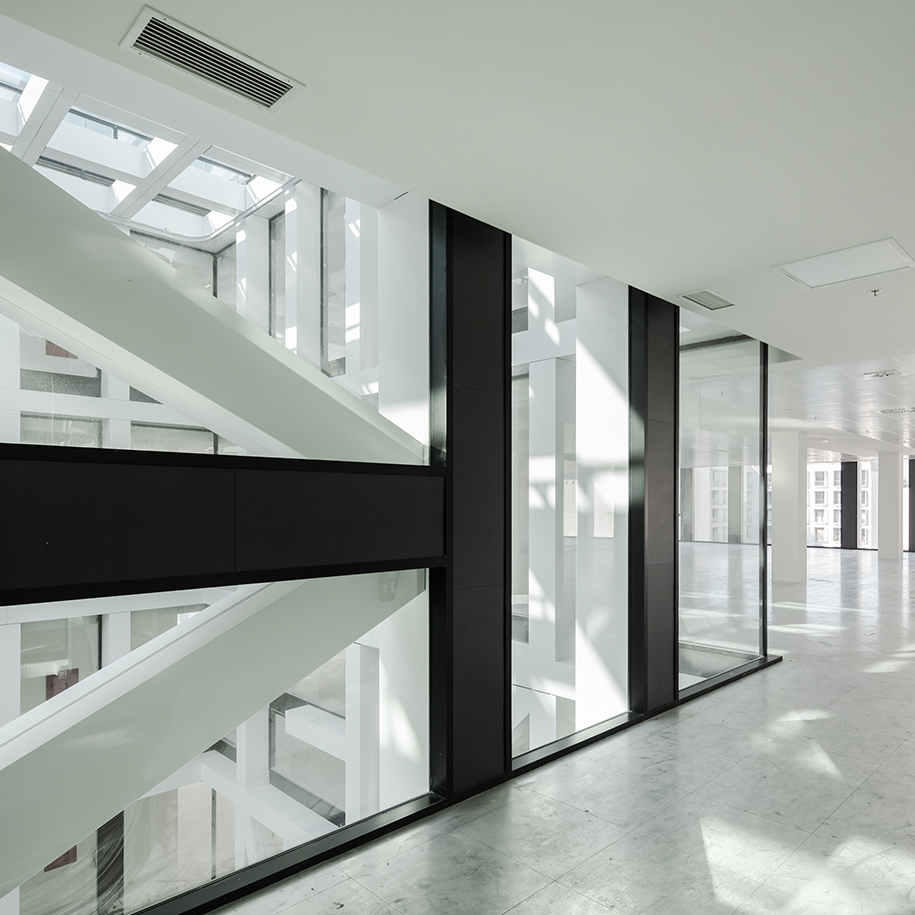

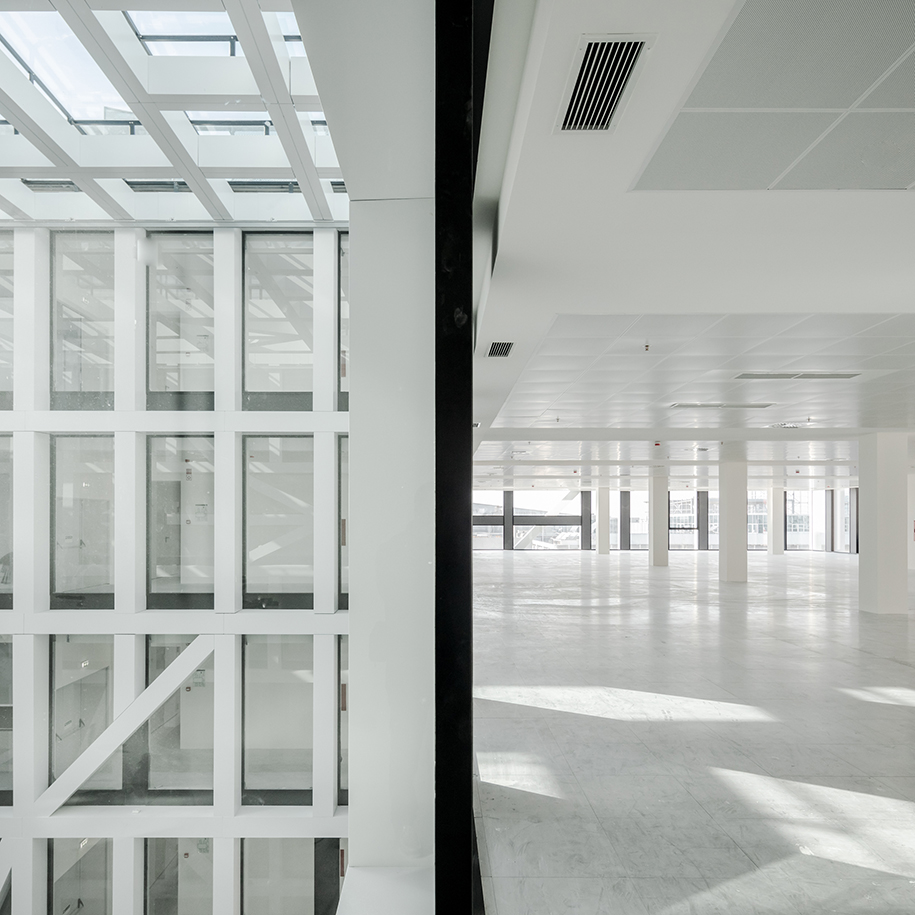

The current singular occupation across the office area, except those four independent commercial units on the ground floor oriented towards av. Teixeira Ruela, confers to the floors a wider and opened form, providing a great visual transparency of the overall building, either in the interior horizontal plane or in the vertical plane intersfloors,alongside the foyer. This spatial dimension and transparency of the foyer produces visual relationships across the various floors, the workspaces and the circulation areas, reinforcing the concept of closeness and collaboration between the users and the occupants.

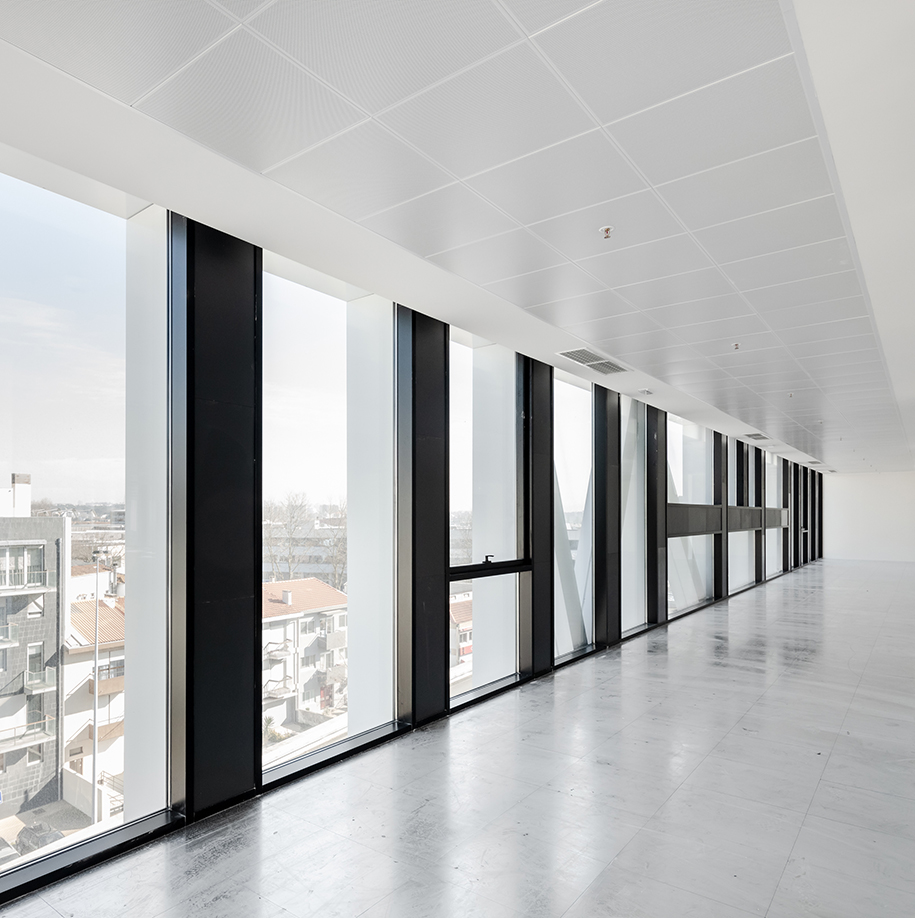

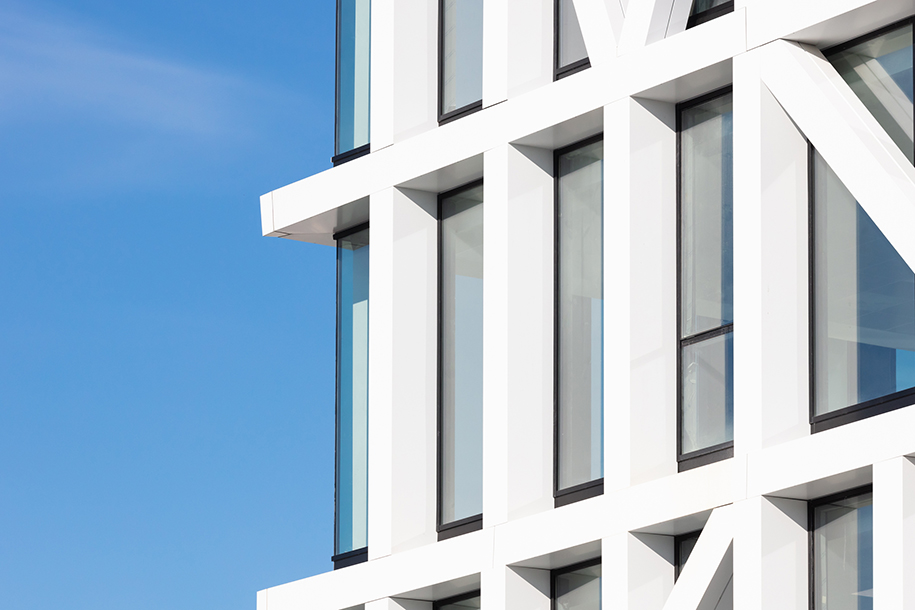

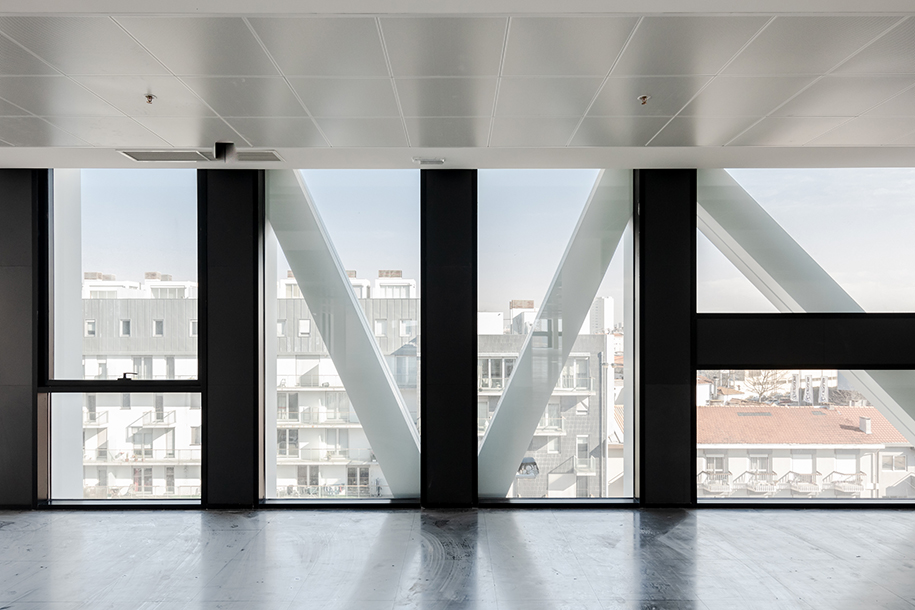

As for the building constructive solutions, it was adopted ametal structure, with composite floor slabs for the positive floors, with a building envelope system with glass curtain walls as outer covering,composed of extruded aluminium framing members infilled with glass,as well as opaque elements of aluminium composite defining the skin of the building.

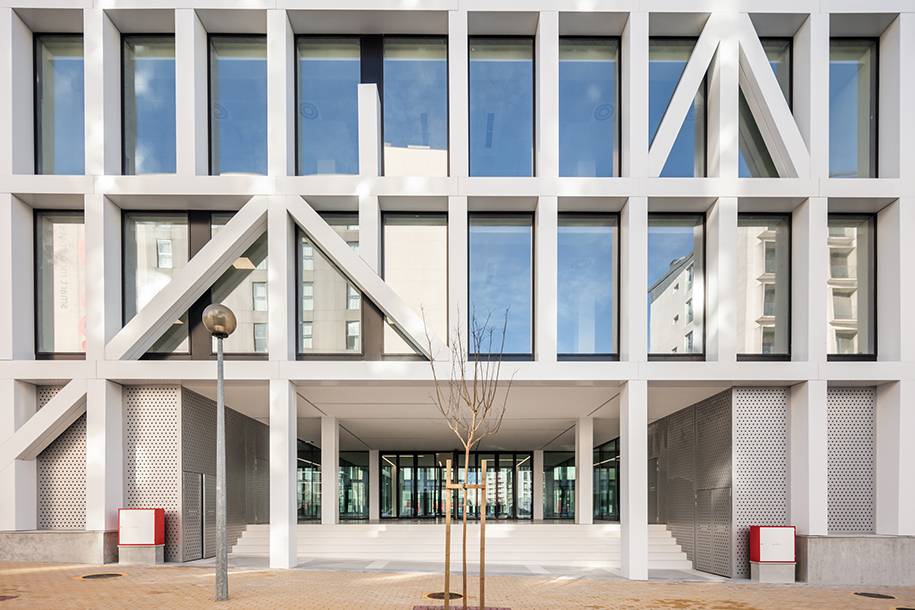

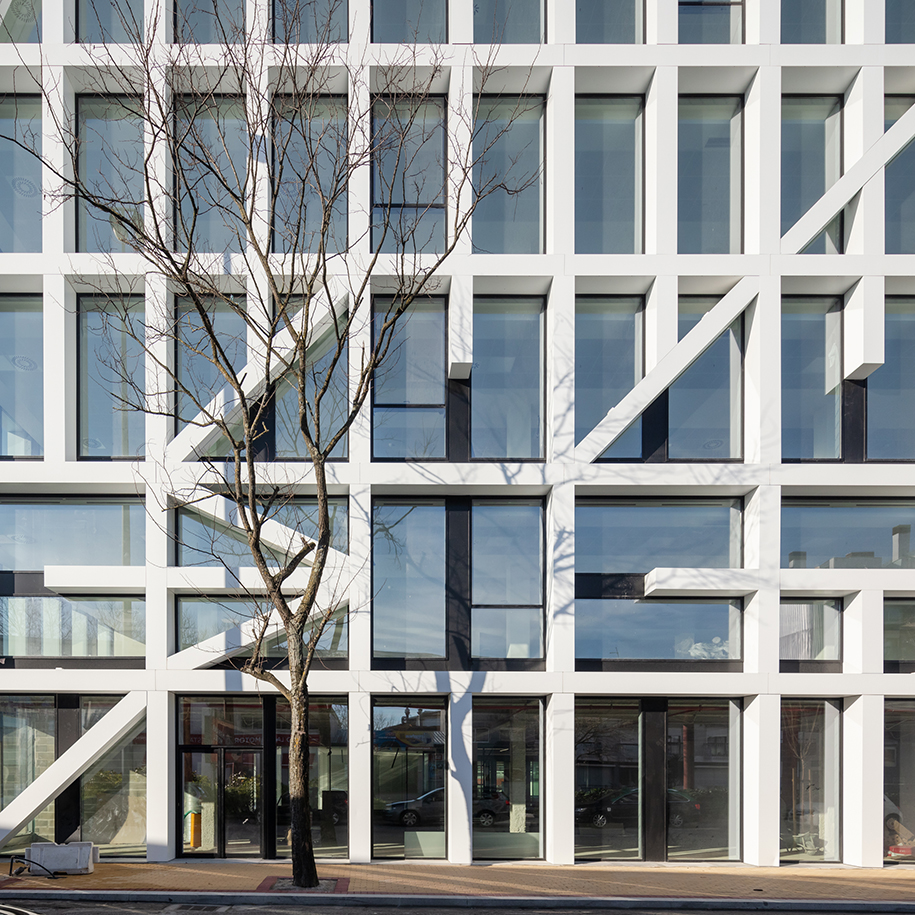

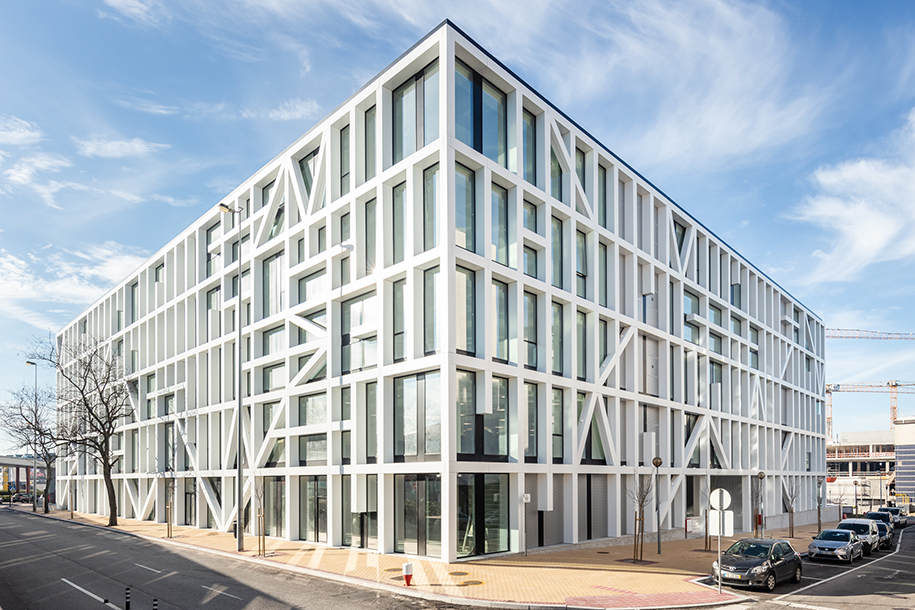

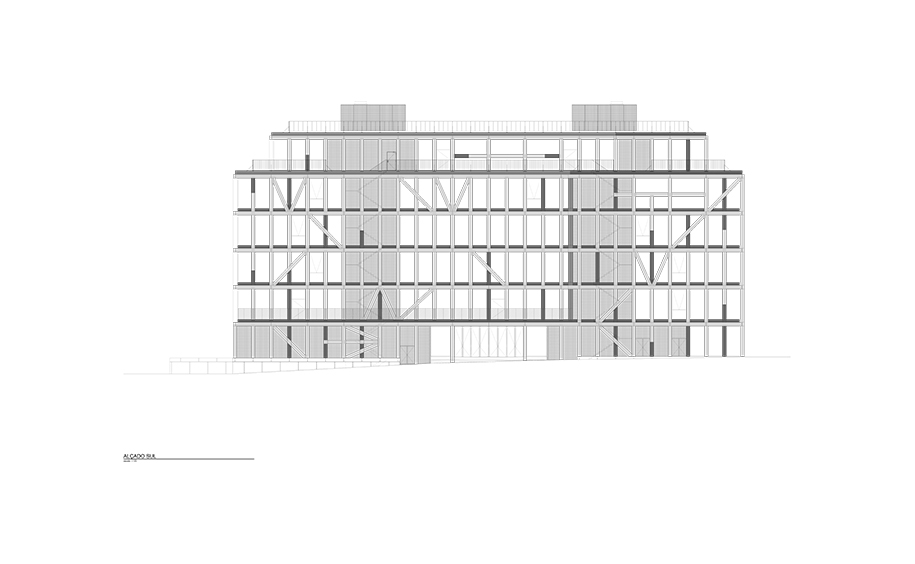

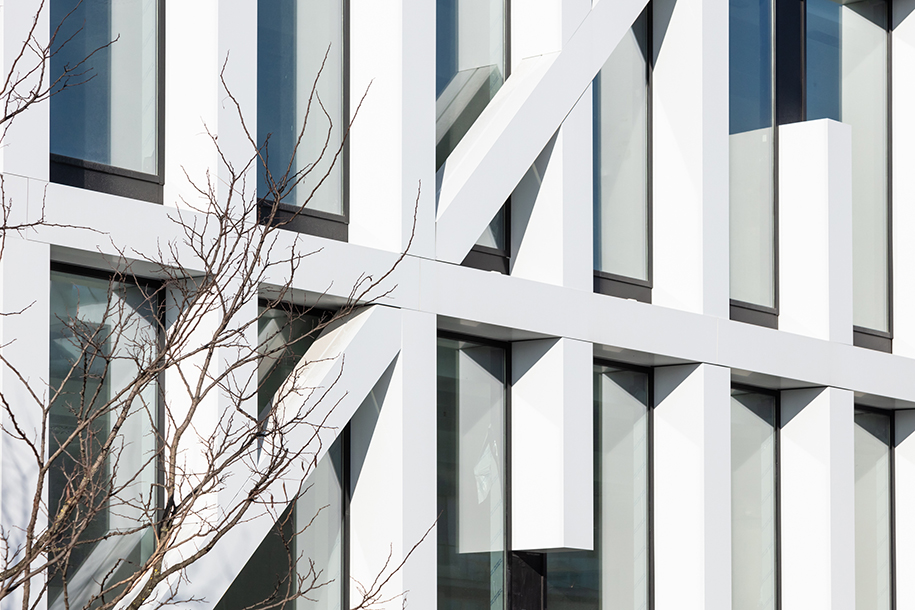

The architectonic solution and construction of the facade is the most striking visual element of the building.It is a structure that is reflected throughout the building, whether on the outer or interior elevations.It is possible to gaze the arrangement of the rhythmic elements of the facade in different alignments, discovering melodic interpretations.

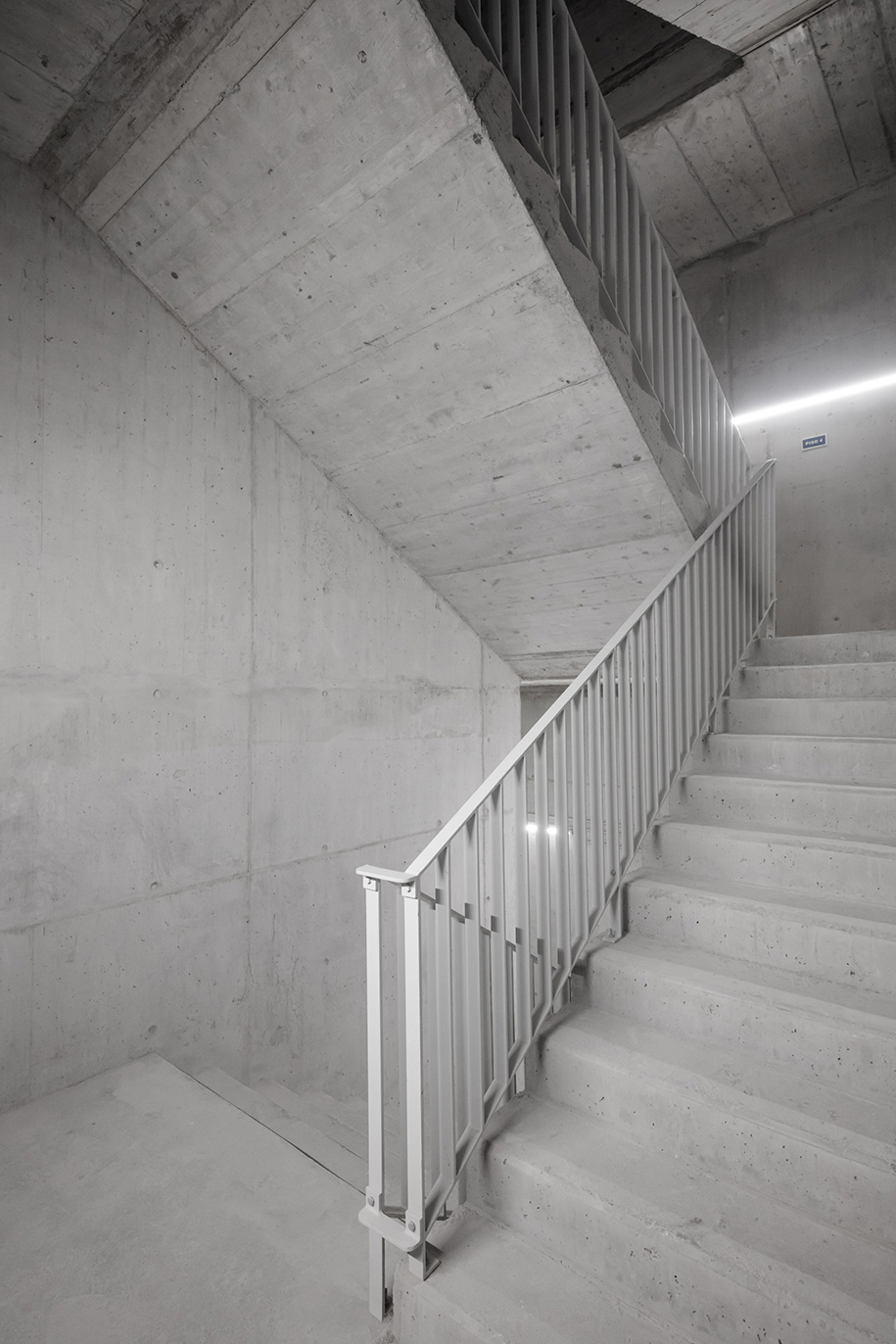

For the negative floors,  a reinforced concrete structure was defined.

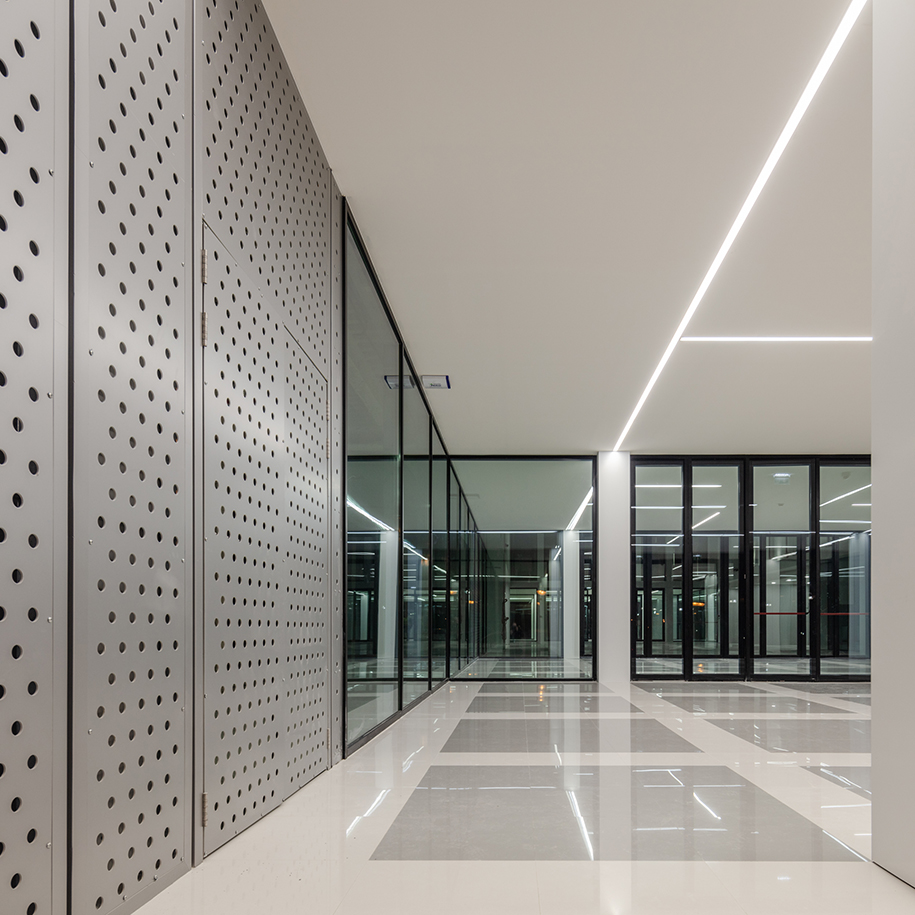

The set of infrastructures were designed with integrated management systems to optimize and reduce consumption, as for example the LED lighting system with luminescence and presence control.

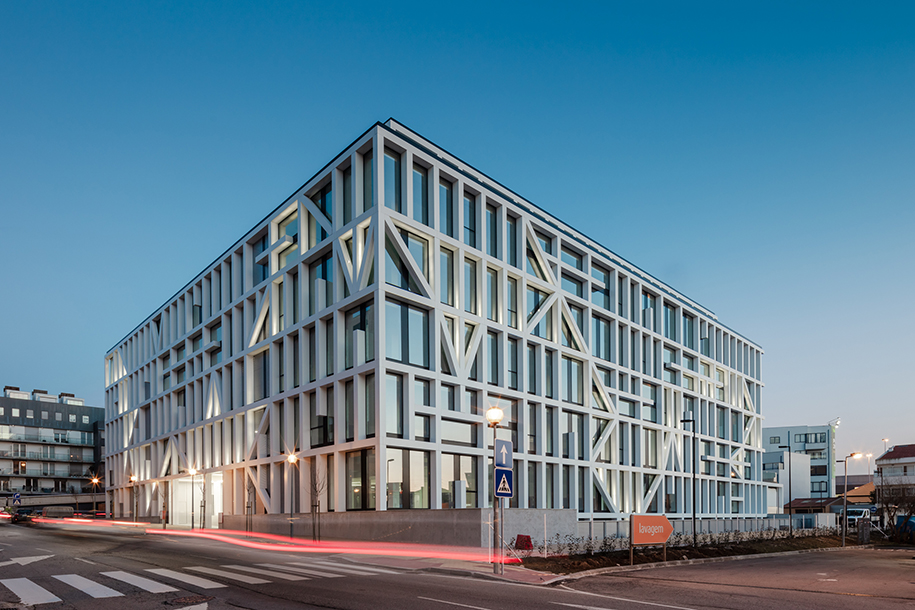

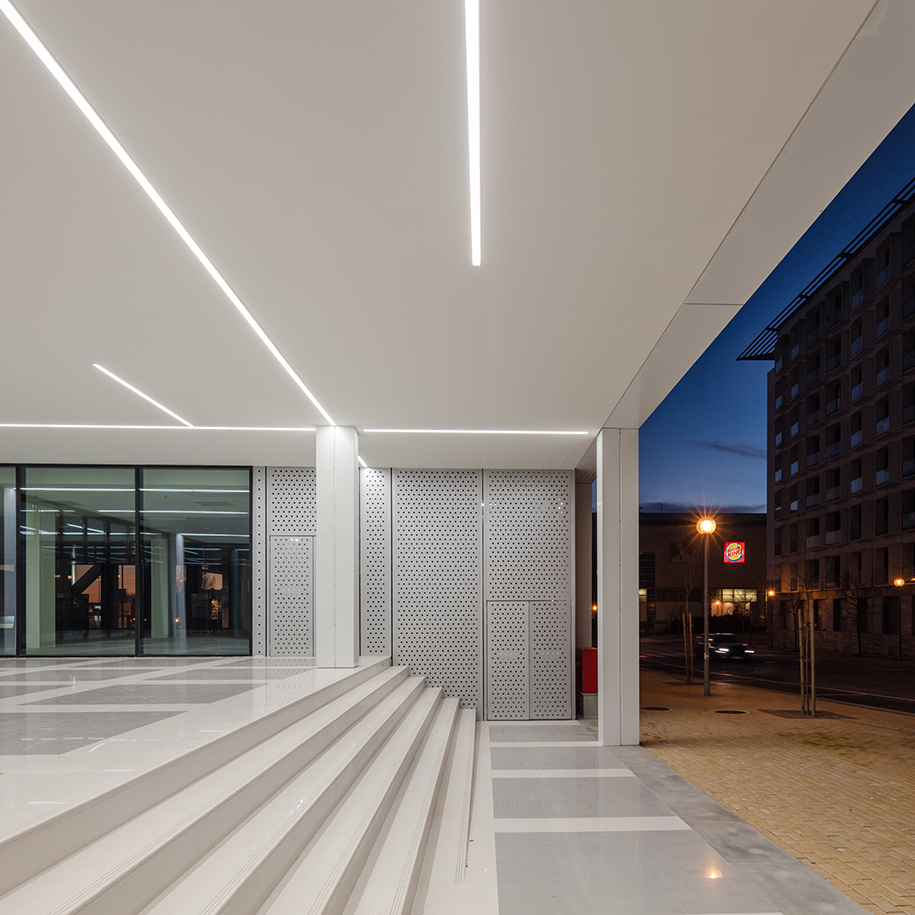

The architectural design of the Urbo Business Centre is reinforced by the composition of the night lighting of the facade elements.

Facts and Credits

Project name: Urbo Business Centre

Architect: Nuno Capa Arquitecto

Location: Porto, Portugal

Completion Year: 2019

Gross Built Area (square meters): 25600 sqm

Photo credits: Joao Morgado Architecture Photography
