The Warsaw Uprising Mound Park, designed by Archigrest and topoScape  highlight ecological and symbolic potential by making various uses of the rubble found on site and exposing the authenticity of urban nature.

THE MAIN AVENUE BEGINS AT THE SQUARE ON BARTYCKA STREET, WHERE A REINFORCED CONCRETE-RUBBLE WALL, EMBEDDED WITH FRAGMENTS OF PRE-WAR BUILDINGS, FORMS THE BASE OF THE MOUND

The Warsaw Uprising Mound Park is the Fourth Nature refuge created on an anthropogenic hill. For years, this site served as a repository for the debris from Warsaw after the city was destroyed in World War II, gradually giving rise to an artificial hill that now stands 35 metres above the surrounding flat and marshy landscape. After the landfill was closed in the mid-1960s, the hill became overgrown with vegetation that, over time, transformed into a ruderal “forest”.

SUNNY SPOT WITH SUN LOUNGERS OVERLOOKING A WILDFLOWER MEADOW

Its adaptation into a public park involved recognising its ecological and symbolic potential and making various uses of the rubble found on site.

THE STAIRS, WINDING THEIR WAY THROUGH THE TREES, CONNECT THE DIFFERENT LEVELS OF THE MOUND AND ARE DESIGNED TO BLEND IN WITH THE NATURAL LANDSCAPE.

The Mound area was thus reclaimed in three different ways: symbolically, physically and by the Fourth Nature:

Reclaiming the meaning

In 1994, a former participant in the Warsaw Uprising and an architect, Lt. Col. Eugeniusz Ajewski “Kotwa”, recognised the symbolic potential of the landfill. He and other veterans initiated the erection of a monument on the top of the hill. According to Ajewski, the remaining area was to be used for recreation. In 2019, our team won a competition for the project, which would befit the site’s significance and provide a recreational space for the residents of the newly constructed housing estates in its vicinity.

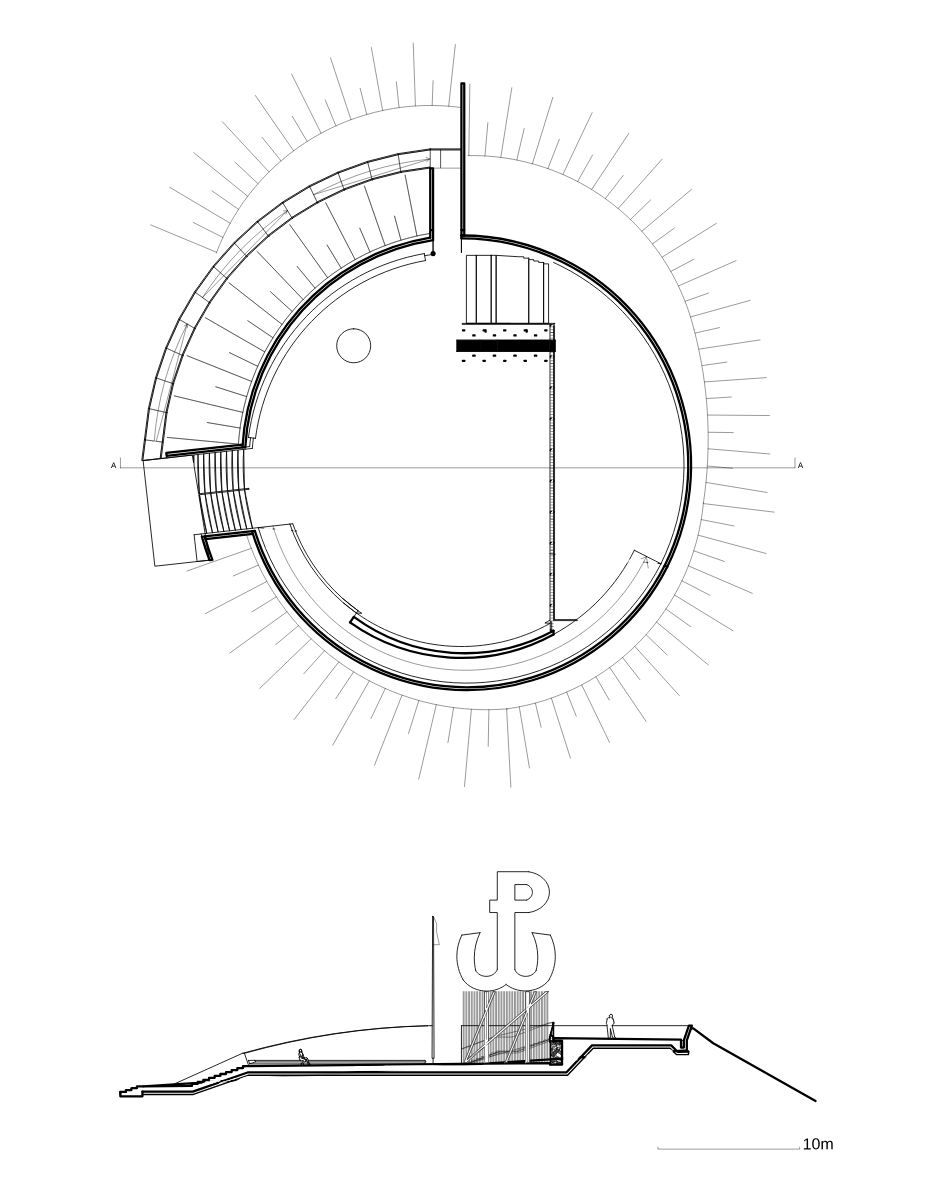

THE MONUMENT DESIGNED BY ARCHITECT COLONEL EUGENIUSZ AJEWSKI NOW STANDS ON A NEW PLINTH.

Reclaiming by the Fourth Nature

The Mound is a degraded area, a brownfield, a wasteland reclaimed by the Fourth Nature. The project’s starting point was observing natural processes initiated by pioneer and invasive species and further modelling them to increase biodiversity.

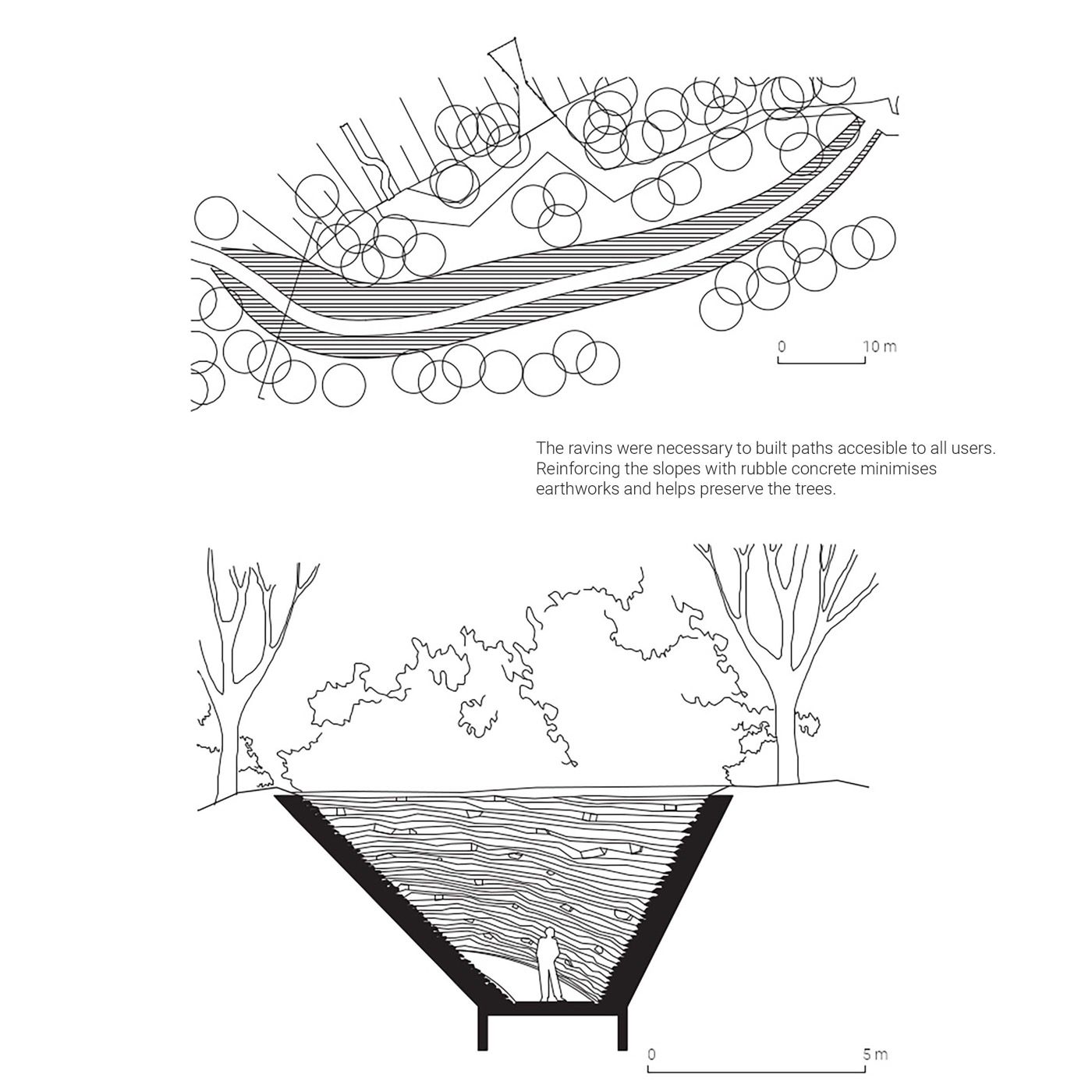

A CONCRETE RUBBLE RAVINE PROVIDES ACCESS TO THE HIGHER PARTS OF THE MOUND.
THE PARK PATHS, DESIGNED WITHOUT BORDERS, GIVE THE PARK A MORE NATURAL FEEL.
A PARK TRAIL. CONSTRUCTION WAS CAREFULLY PLANNED TO PROTECT THE EXISTING TREES AND GROUND COVER. NEW PLANTS BLEND SEAMLESSLY WITH THE NATURAL SURROUNDINGS.

This can lead to a change in the paradigm of aestheticising urban nature in favour of exposing its authenticity.

The adopted environmental strategy includes, among others:

  1. Supporting the natural succession process.
  2. Increasing biodiversity through new plantings.
  3. Supporting the soil-forming process by retaining organic matter and surface water runoff.
  4. Introducing micro-retention (wooden gutters, fascine drains).
  5. Creating ecological niches for small animals.
  6. Introducing bioreceptive rubble concrete.
THE TREETOP WALKWAY WAS BUILT AMONG MATURE TREES THAT WERE SUCCESSFULLY PRESERVED.
A RAVINE WITH REINFORCED CONCRETE RUBBLE SLOPES. ARTIFICIAL LIGHTING IS LIMITED TO THE TWO MAIN PATHS TO THE TOP OF THE MOUND.

A meadow that grew over the ruins of Warsaw in 1945 was sown again on the rubble fields, and its species composition is known thanks to the pioneering historical publications of Prof. Roman Kobendza.

DESPITE SOME RESIDENTS WANTING THE BRANCHES REMOVED, IT WAS DECIDED TO KEEP THE TREES THAT BLOCK THE VIEW FROM THE TOP OF THE MOUND, CREATING A LEAFY CANOPY OVER THE MAIN PATH.

Reclaiming rubble

The enormous amount of debris in post-war Warsaw was a problem but also a resource—the raw material for producing rubble concrete blocks from which numerous buildings have been built.

THE CORNER GABION IN THE LAPIDARIUM, A 20 CUBIC METER STRUCTURE, SYMBOLISES JUST ONE MILLIONTH OF THE ESTIMATED 20 MILLION CUBIC METERS OF RUBBLE FROM POST-WAR WARSAW.

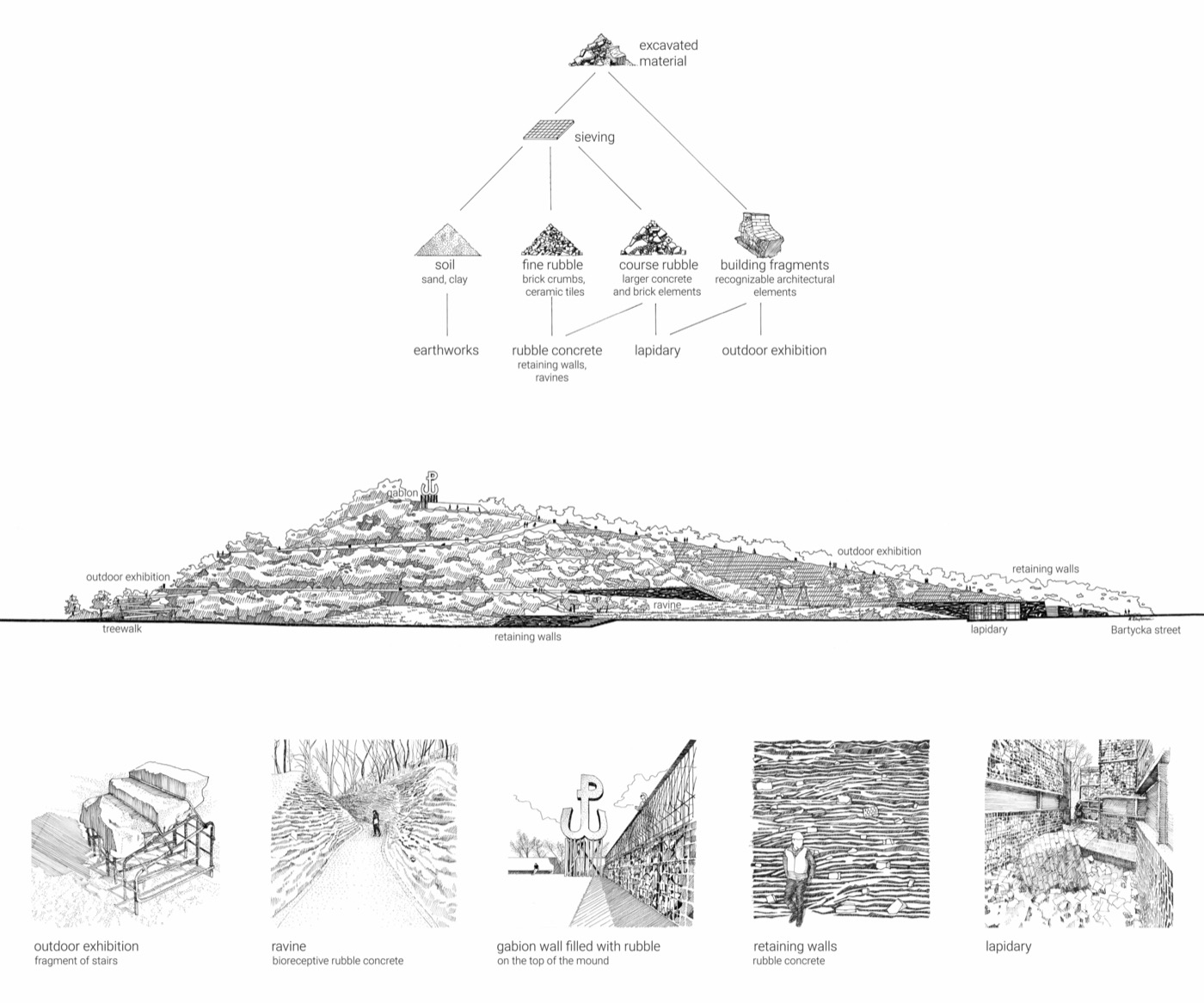

Warsaw became a precursor of the circular economy; we wanted to refer to this heritage. Our project implemented several strategies for recycling rubble extracted during earthworks, all of which, following the conservator’s decision, remained on site:

  1. The most important was an innovative technology for producing modern rubble concrete, which forms the ravines’ retaining walls and the Mound’s base. Over time, this local anthropogenic rock, Warsaw urbanite, will be covered with moss and gradually assimilated by surrounding nature. Before that happens, we can see the remains of old Warsaw embedded in rubble concrete: bricks, stove tiles and balusters.

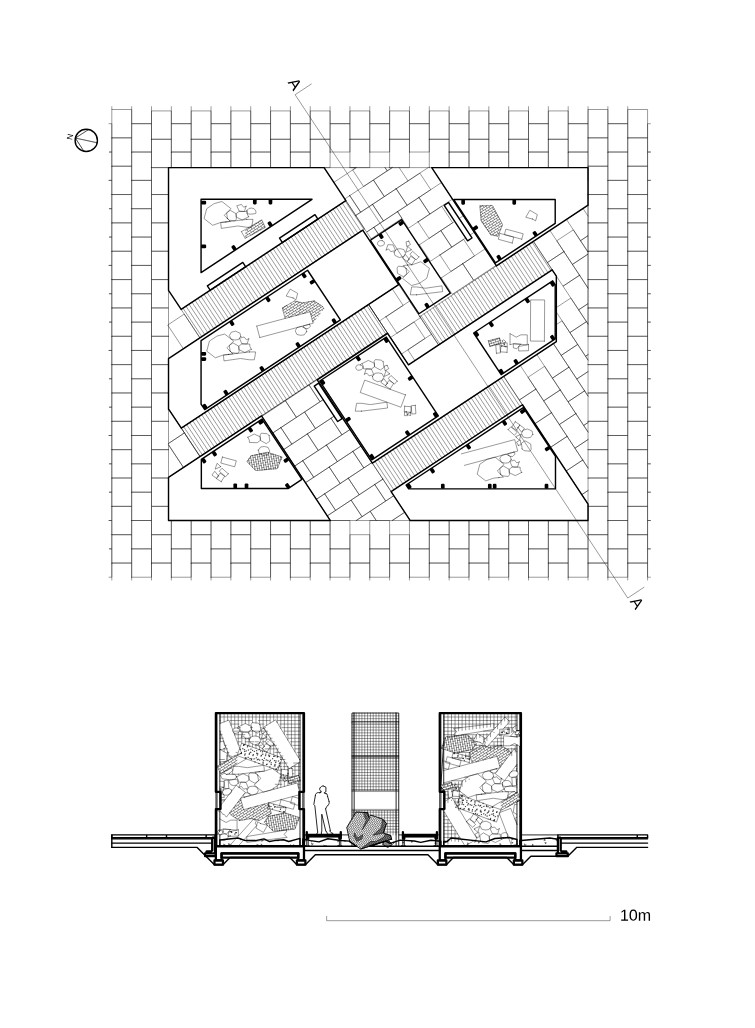

  2. Another strategy was to repurpose the rubble as filling material for the gabions in the Lapidary, designed as a labyrinth of “ruins”.
  3. The fair-sized remains of destroyed buildings were labelled and displayed within the park and along the grand avenue leading to the main monument on top of the hill.

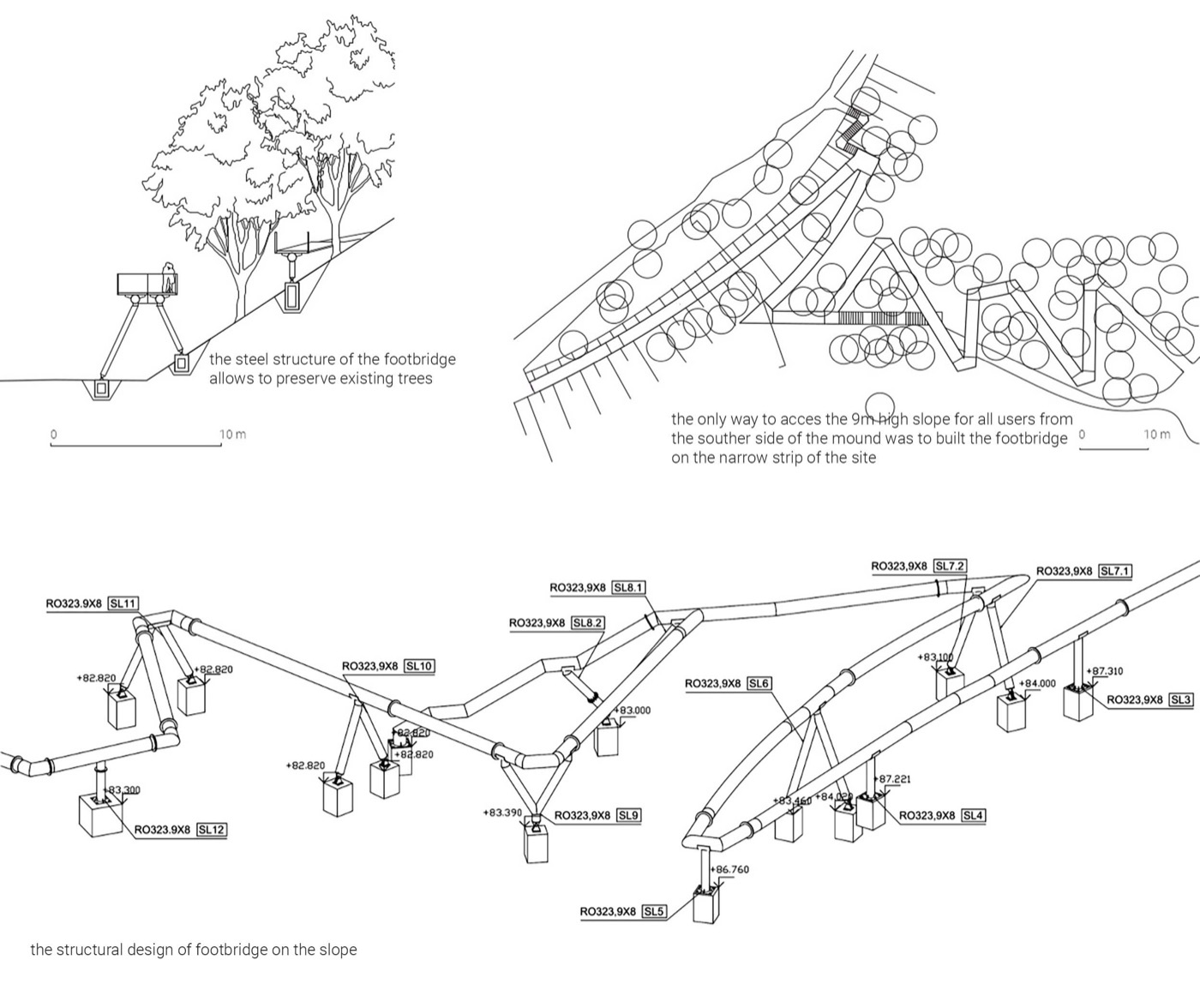

A FOOTBRIDGE NESTLED AMONG THE TREES. IN THE FOREGROUND, RUBBLE LEFT ON SITE DURING CONSTRUCTION.
A FRAGMENT OF A BRICK ARCH, DISCOVERED ON THE MOUND, IS SHOWCASED ON THE MAIN PATHWAY.

Facts & Credits
Project title The Warsaw Uprising Mound Park
Typology Landscape
Location Bartycka Street, Warsaw, Poland
Architecture Archigrest (Maciej Kaufman, Marcin Maraszek) and topoScape  (Justyna Dziedziejko, Magdalena Wnęk)
Cooperation Karolina Potębska, Agata Holdenmajer, Natalia Janek, Jerzy Przychodni, Rafał Murawski, Joanna Chylak, Anna Sternytska, Agnieszka Tama
Design Konbud Krzysztof Guraj, Paweł Komorek
Concrete technology TBAiS Krzysztof Kuniczuk
Phytosociological consultation Dr hab. Piotr Sikorski
Exhibition – heritage trail Dr. Adam Przywara
Exhibition – nature trail Dr. Kasper Jakubowski
Visual identity and the graphic design of exhibitions Kaja Kusztra
General contractor Sorted sp. z o.o.
Sponsored by Capital City of Warsaw
Area 82,919 m²
Architecture design competition 2019, 1st prize
Project 2020-2021
Implementation 2021-2023
Photography Michał Szlaga
Text provided by the architects
